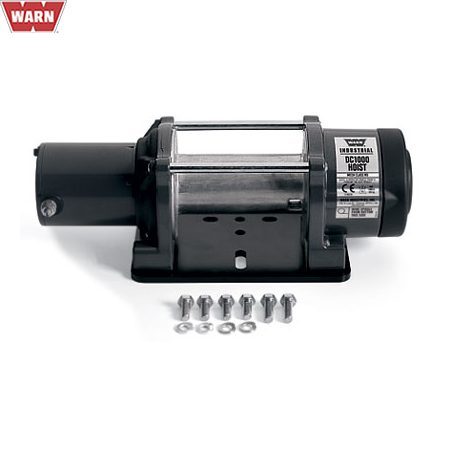

WARN INDUSTRIAL HOIST DC1000 12V
The DC1000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1000 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy. Controls and accessories available separately.
Approved for suspended load.
Data:
Rated Capacity: 1000 lbf (454 kgf)
Drum Barrel Diameter: 2.0 in (51mm)
Drum Flange Diameter: 4.1 in (104 mm)
Distance Between Flanges: 4.7 in (119 mm)
Distance Between Flanges (Short-Drum): 3.0 in (76 mm)
Recommended Maximum Wire Rope Diameter: 7/32 in (5.6 mm)
Recommended Wire Rope Breaking Strength: 5600 lbf (2540 kfg)
Approximate Shipping Weight: 18.0 lb (8.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 11-13 ft*lbf (15 – 18 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 136:1
Brake Type: Disc
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC
Accessories:
Roller Fairlead: 29256
Wire Rope (7/32″ x 55 ft): 68851
Synthetic Rope (7/32″ x 55 ft): 78388
Control Pack-12V: 63926
Contactor Only-12V: 83321
Remote Control Only: 88528
Description
The DC1000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1000 hoist is compact and comes standard with a steel mounting plate and hardware to make installation quick and easy. Controls and accessories available separately.
Approved for suspended load.
Data:
Rated Capacity: 1000 lbf (454 kgf)
Drum Barrel Diameter: 2.0 in (51mm)
Drum Flange Diameter: 4.1 in (104 mm)
Distance Between Flanges: 4.7 in (119 mm)
Distance Between Flanges (Short-Drum): 3.0 in (76 mm)
Recommended Maximum Wire Rope Diameter: 7/32 in (5.6 mm)
Recommended Wire Rope Breaking Strength: 5600 lbf (2540 kfg)
Approximate Shipping Weight: 18.0 lb (8.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 11-13 ft*lbf (15 – 18 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 136:1
Brake Type: Disc
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC
Accessories:
Roller Fairlead: 29256
Wire Rope (7/32″ x 55 ft): 68851
Synthetic Rope (7/32″ x 55 ft): 78388
Control Pack-12V: 63926
Contactor Only-12V: 83321
Remote Control Only: 88528
Additional information
| Weight | 12.258 kg |
|---|
