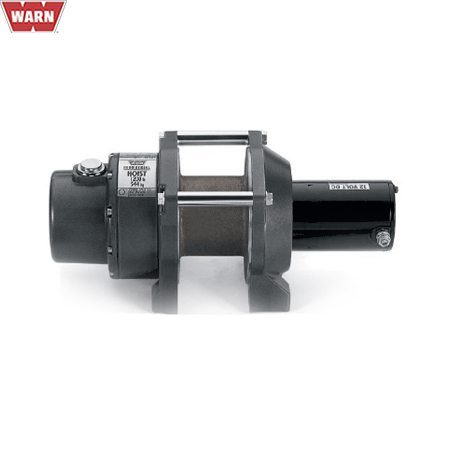

WARN INDUSTRIAL HOIST DC1200 24V

 1,431.80 EUR excl. vat

The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that’s easy to install. Controls and accessories available separately.

Approved for suspended load.

Data:
Rated Capacity: 1200 lbf (544 kgf)
Drum Barrel Diameter: 3.5 in (89 mm)
Drum Flange Diameter: 6.0 in (152 mm)
Distance Between Flanges: 2.7 in (69 mm)
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm)
Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kfg)
Approximate Shipping Weight: 27 lb (12.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32-34 ft*lbf (43 – 46 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 216:1
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC ASME B30.5

Accessories:
Control Pack-24V: PN 84710
Contactor Only-24V (Standard bracket): PN 83322
Contactor Cover (with remote plug): PN 36648
Contactor Cover (w/o remote plug): PN 35169
Remote Control Only: PN 88528

Out of stock

SKU: 85250 Categories: , , ,

Description

The DC1200 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1200 hoist is built on a compact midsize framed with integrated tie bars that’s easy to install. Controls and accessories available separately.

Approved for suspended load.

Data:
Rated Capacity: 1200 lbf (544 kgf)
Drum Barrel Diameter: 3.5 in (89 mm)
Drum Flange Diameter: 6.0 in (152 mm)
Distance Between Flanges: 2.7 in (69 mm)
Recommended Maximum Wire Rope Diameter: 3/16 in (4.8 mm)
Recommended Wire Rope Breaking Strength: 4200 lbf (1905 kfg)
Approximate Shipping Weight: 27 lb (12.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32-34 ft*lbf (43 – 46 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 216:1
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC CE Electromagnetic Compatibility 2004/108/EC ASME B30.5

Accessories:
Control Pack-24V: PN 84710
Contactor Only-24V (Standard bracket): PN 83322
Contactor Cover (with remote plug): PN 36648
Contactor Cover (w/o remote plug): PN 35169
Remote Control Only: PN 88528

Print Friendly, PDF & Email

Additional information

Weight 12.1218 kg
