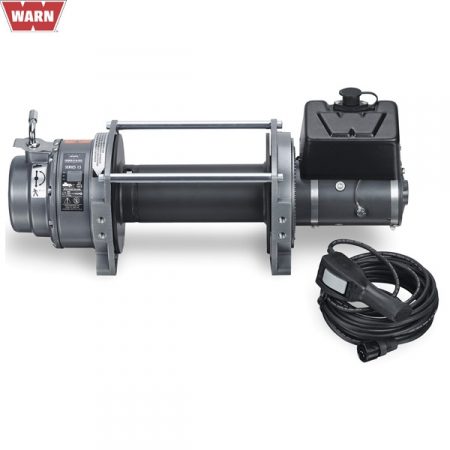

WARN WINCH SERIES 18DC 24V
€ 4,505.40 EUR excl. vat
Heavy Pulling Power of up to 18,000 lbf. (single line)
Dependable high-torque series-wound 24V DC electric motor
Weatherproof industrial contactor control pack
Rugged 32′ (10 m) industrial remote control
Disc brake designed for extended power-out use
Thermal overload switch protects motor from overheating
Wire rope, roller fairlead, and tensioner sold separately
Data:
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33′ (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
27 in stock (can be backordered)
Description
Heavy Pulling Power of up to 18,000 lbf. (single line)
Dependable high-torque series-wound 24V DC electric motor
Weatherproof industrial contactor control pack
Rugged 32′ (10 m) industrial remote control
Disc brake designed for extended power-out use
Thermal overload switch protects motor from overheating
Wire rope, roller fairlead, and tensioner sold separately
Data:
Rated Pulling Force: 18000 lbf (8165 kgf)
Drum Barrel Diameter: 4.0 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 103.0 lbs (46.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 40 ft (12.2 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33′ (10m) heavy duty remote
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
Additional information
Weight | 46.762 kg |
---|
