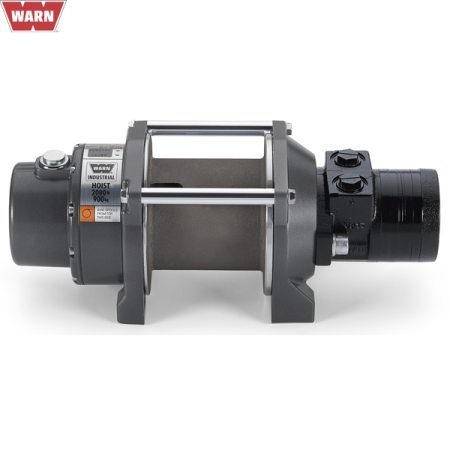

WARN INDUSTRIAL HOIST HY2000

Description

The HY2000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The HY2000 hoist is built on a compact midsize frame with integrated tie bars that’s easy to install.

Approved for suspended load.

Data:
Rated Capacity: 2000 lbf (907kgf)
Drum Barrel Diameter: 4.25 in (108 mm)
Drum Flange Diameter: 6.25 in (159 mm)
Distance Between Flanges: 4.5 in (114 mm)
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 40 lbs. (18.1 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 32 – 34 ft*lbf (43 – 46 N*m)
Maximum Layers of Wire Rope: 2
Gear Reduction: 26:1
Brake Type: Automatic Cone
Standards Compliance:
CE Machinery Directive 98/37/EC and 2006/42/EC
ASME B30.5

Accessories:
Wire Rope Assy-1/4″ x 60ft: PN 71297
Wire Rope Assy-1/4″ x 50ft: PN 24891
Wire Rope Assy-1/4″ x 40ft: PN 24890
Wire Rope Assy-1/4″ x 25ft: PN 24889
