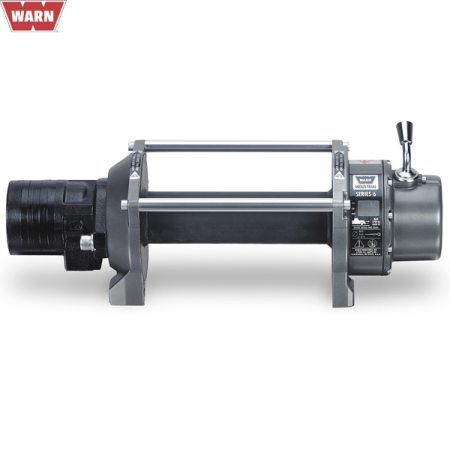

WARN WINCH SERIES 6 HY 8.9″ DRUM (ANT-CLOCKWISE)

Description

• Popular winch for tow, utility and trailer applications
• Hardened steel, two-stage planetary geartrain provides faster line speeds
• Rugged dual-cone brake provides dependable control
• Meets SAE J706 and CE standards
• Wire rope, roller fairlead, and tensioner sold separately

This drum rotates: Anti-clockwise

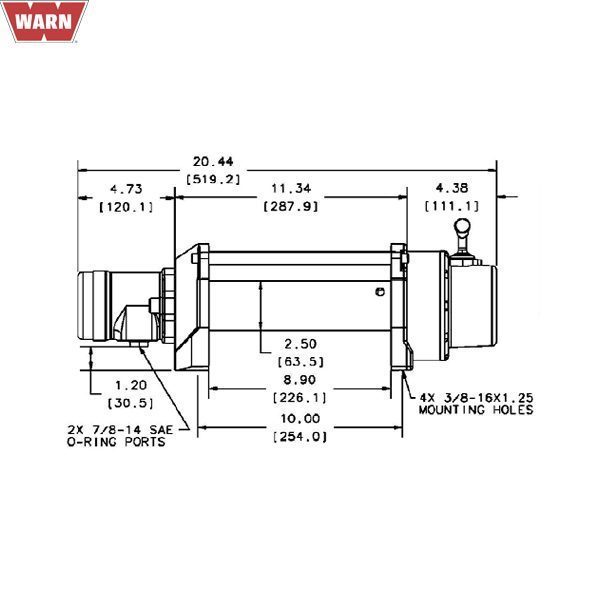

Data:
Rated Pulling Force: 6000 lbf (2722 kgf)
Drum Barrel Diameter: 2.50 in (64 mm)
Drum Flange Diameter: 6.00 in (152 mm)
Distance Between Flanges: 8.9 in (226 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)
Approximate Shipping Weight: 41.5 lb (18.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 300 ft (91 m)
Mounting Bolt Torque: 20-25 ft*lbf (27-34 N*m)
Maximum Layers of Wire Rope: 4 (with 5/16″ dia. rope)
Gear Reduction: 26:1
Brake Type: Automatic Double Cone
