CAMOS 360° HD SYSTEM, INCLUDING 10″ HD MONITOR
€ 2,523.00 EUR excl. vat
CAMOS 360 Digital HD offers 360 degree vehicle camera system that provides drivers with a ‘look-down’ view all around their vehicle, making parking, reversing and manoeuvring safe and easy. The camera system eliminates all blind-spots and can be installed/calibrated to any type or size of vehicle.

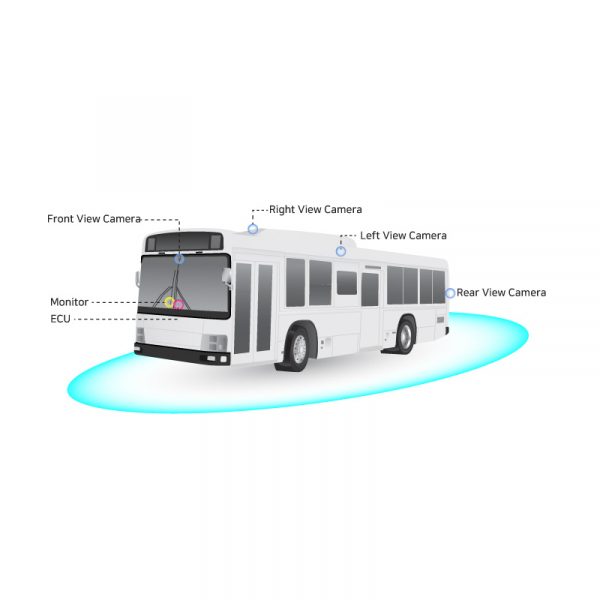

The images from the four, ultra-wide angle lens cameras are blended together to present the driver with an easy to interpret 360 degree view, ensuring no blind-spots.
THE KIT CONTAINS:
Complete Camos 360 ° camera system including 10″ HD monitor, 4 cameras, ECU unit and remote control.
DVR (DR120) can be ordered as an option.
ECU UNIT
Video Output: HD TVI 1ch(1280 x 720) / CVBS(720 x 480)
Operating Supply Voltage: 12-24V (Max. 36V)
Operating Temperature: -30 C° ~ +75 C°
Power Consumption: Max. 14W (With Camera)
Sleep Current: Less than 3mA (13.5V)
Dimensions (W x H x D): 165.6(W) x 114.6(H) x 26.5(D)mm
Trigger: Rear Gear / Flasher Left / Flasher Right / Emergency
Ext. interface: Speed Pulse
Ext. Memory: Calibration Kit (SD Card)
Key: Key button / Remocon.
CAMERA SPECIFICATION
Camera: HD TVI
Sensor-Type: ISX016 (Sony)
Video Output: HD TVI Camera
Viewing Angle: 190.5°(H) ± 3°, 119.1(V) ± 3°
Resolution: 1280(H) x 720(V)
Min. Illumination: 1 Lux
Operating Supply Voltage: 4.3-5.5V (Typ.5.0V)
Operating Voltage: 220mA(Max)
Operating Temperature: -30 C° ~ +75 C°
Dimensions (W x H x D): 24.03(W) x 24.03(H) x 43.1(D)mm
Water proof: IP69K
Aspect ratio: 16:9
Signal Format: 1280 x 720p / TVI output format
Frame Rate (1280 x 720): 30 fps
Scan Mode: Progressive
Relative Aperture(F/#): 2.0.
HD MONITOR
Screen size: 10.1″
Resolution: 1280 x 800 RGB
Brightness: 400 cd/m2
Contrast Ratio: 800:1
View Angle (L/R/T/B): 85/85/85/85
Power Supply: DC12V-24V
Video Input 1: TVI 720P 30Hz Differential type
Video Input 2: TVI 720P 30Hz Single type
Sound: Built-in speaker with mono sound
Vesa mount: 75 x 75 mm
Dimensions: 256.9 x 178.6 x 36.6 mm
Weight: 1 198 grams
Menu language: English
Operating Temperature: -20 C° ~ +70 C°
Out of stock, but can be backordered. We will notify you of delivery time once order has been made.
Description
CAMOS 360 Digital HD offers 360 degree vehicle camera system that provides drivers with a ‘look-down’ view all around their vehicle, making parking, reversing and manoeuvring safe and easy. The camera system eliminates all blind-spots and can be installed/calibrated to any type or size of vehicle.
The images from the four, ultra-wide angle lens cameras are blended together to present the driver with an easy to interpret 360 degree view, ensuring no blind-spots.
THE KIT CONTAINS:
Complete Camos 360 ° camera system including 10″ HD monitor, 4 cameras, ECU unit and remote control.
DVR (DR120) can be ordered as an option.
ECU UNIT
Video Output: HD TVI 1ch(1280 x 720) / CVBS(720 x 480)
Operating Supply Voltage: 12-24V (Max. 36V)
Operating Temperature: -30 C° ~ +75 C°
Power Consumption: Max. 14W (With Camera)
Sleep Current: Less than 3mA (13.5V)
Dimensions (W x H x D): 165.6(W) x 114.6(H) x 26.5(D)mm
Trigger: Rear Gear / Flasher Left / Flasher Right / Emergency
Ext. interface: Speed Pulse
Ext. Memory: Calibration Kit (SD Card)
Key: Key button / Remocon.
CAMERA SPECIFICATION
Camera: HD TVI
Sensor-Type: ISX016 (Sony)
Video Output: HD TVI Camera
Viewing Angle: 190.5°(H) ± 3°, 119.1(V) ± 3°
Resolution: 1280(H) x 720(V)
Min. Illumination: 1 Lux
Operating Supply Voltage: 4.3-5.5V (Typ.5.0V)
Operating Voltage: 220mA(Max)
Operating Temperature: -30 C° ~ +75 C°
Dimensions (W x H x D): 24.03(W) x 24.03(H) x 43.1(D)mm
Water proof: IP69K
Aspect ratio: 16:9
Signal Format: 1280 x 720p / TVI output format
Frame Rate (1280 x 720): 30 fps
Scan Mode: Progressive
Relative Aperture(F/#): 2.0.
HD MONITOR
Screen size: 10.1″
Resolution: 1280 x 800 RGB
Brightness: 400 cd/m2
Contrast Ratio: 800:1
View Angle (L/R/T/B): 85/85/85/85
Power Supply: DC12V-24V
Video Input 1: TVI 720P 30Hz Differential type
Video Input 2: TVI 720P 30Hz Single type
Sound: Built-in speaker with mono sound
Vesa mount: 75 x 75 mm
Dimensions: 256.9 x 178.6 x 36.6 mm
Weight: 1 198 grams
Menu language: English
Operating Temperature: -20 C° ~ +70 C°
Additional information
Weight | 6 kg |
---|
