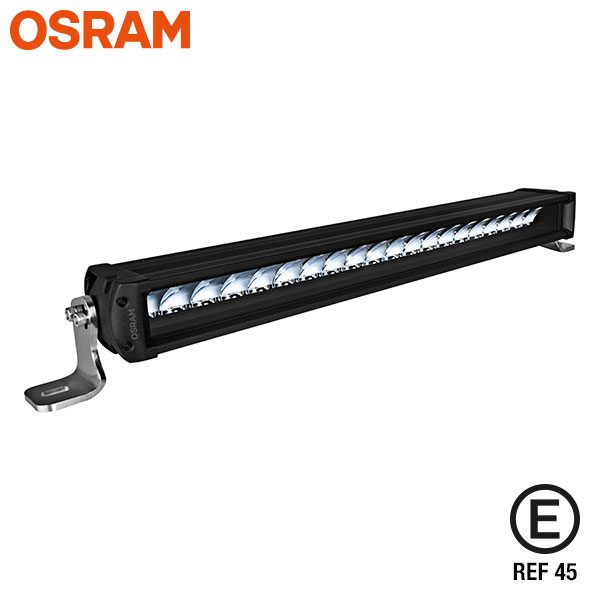

OSRAM FX500 COMBI 22″ LED LIGHT BAR KIT UNIVERSAL
€ 357.00 EUR excl. vat
Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.
Osram FX500 22 ″ LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car.
The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment.
The seal is made according to IP67 and pressure-ventilating membrane to prevent condensation and moisture.
Brutal pressure in the light!
The light image in this ramp is a combination of length and width developed for low mounting on cars, trucks and trucks with its focused light beam and a full 440m range at 1 lux or 880m range at 0.25 lux and a really good width to the sides of a full 85m so is very hard to beat light per crown in Osram FX500.
Complete kit
This is a complete pre-assembled universal kit consisting of LED ramp, bracket and secured relay wiring.
Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12-24 volts.
Power consumption: 6 Amps at 12V and 3A at 24V
EMC approved and E-marked according to ECE R10 and ECE R112, reference number 45
Power consumption: 72W
Specified output power: 68W
overvoltage and undervoltage protection, short circuit protection.
Relay wiring: not included, most universal works.
Waterproof connector of larger DT model is mounted
Withstands severe stresses from weather and wind, vibration and shock resistant.
Lux @ 10m: 1936 lx
Amount of light: about 7000 theoretical lumens (4600 measured lumens)
Brightness: 193600 cd
Range: approx. 440m with 85m width @ 1 lux (880m @ 0.25 lux)
Enclosure class: IP67 + pressure-ventilating membrane

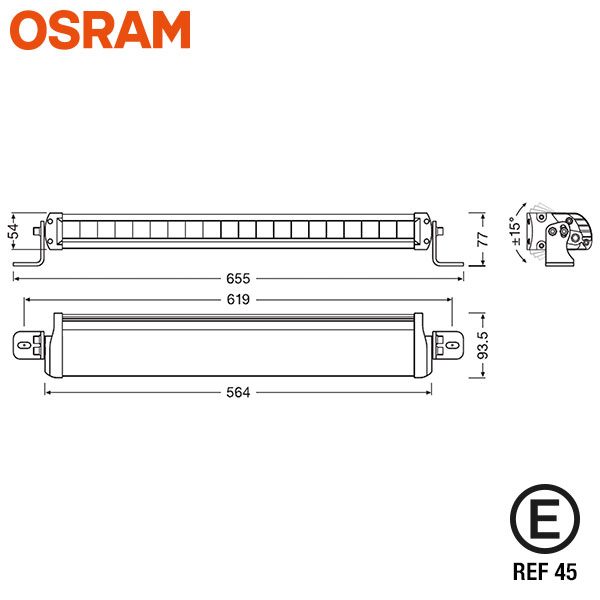

Length with inward-facing brackets: 595 mm
Length without brackets: 564mm
Length with outward-facing brackets 656mm
C-C inward-facing brackets: approx. 519mm
C-C outward-facing brackets: approx. 619mm
Height with standing brackets: 77 mm
Height without brackets: 54mm
Depth: 93.5 mm
Weight: 2200g
Number of LEDs: 20
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years
Description
Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.
Osram FX500 22 ″ LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car.
The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment.
The seal is made according to IP67 and pressure-ventilating membrane to prevent condensation and moisture.
Brutal pressure in the light!
The light image in this ramp is a combination of length and width developed for low mounting on cars, trucks and trucks with its focused light beam and a full 440m range at 1 lux or 880m range at 0.25 lux and a really good width to the sides of a full 85m so is very hard to beat light per crown in Osram FX500.

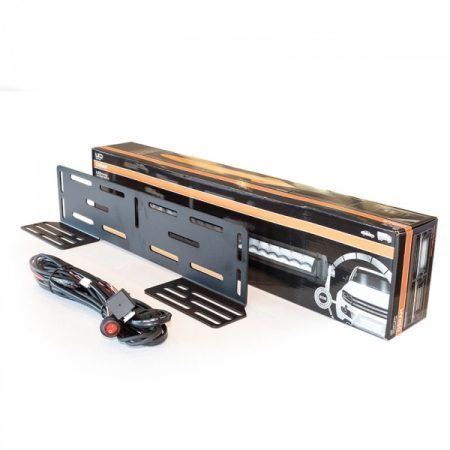

Complete kit
This is a complete pre-assembled universal kit consisting of LED ramp, bracket and secured relay wiring.
Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12-24 volts.
Power consumption: 6 Amps at 12V and 3A at 24V
EMC approved and E-marked according to ECE R10 and ECE R112, reference number 45
Power consumption: 72W
Specified output power: 68W
overvoltage and undervoltage protection, short circuit protection.
Relay wiring: not included, most universal works.
Waterproof connector of larger DT model is mounted
Withstands severe stresses from weather and wind, vibration and shock resistant.
Lux @ 10m: 1936 lx
Amount of light: about 7000 theoretical lumens (4600 measured lumens)
Brightness: 193600 cd
Range: approx. 440m with 85m width @ 1 lux (880m @ 0.25 lux)
Enclosure class: IP67 + pressure-ventilating membrane
Length with inward-facing brackets: 595 mm
Length without brackets: 564mm
Length with outward-facing brackets 656mm
C-C inward-facing brackets: approx. 519mm
C-C outward-facing brackets: approx. 619mm
Height with standing brackets: 77 mm
Height without brackets: 54mm
Depth: 93.5 mm
Weight: 2200g
Number of LEDs: 20
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years
