OSRAM FX500 COMBI GEN 2 17.5″ LED LIGHT BAR

Description

The next generation of Osram’s popular FX500 COMBI LED light bar is here. FX500-CB generation 2 is smaller, lighter, better looking and more durable. Fewer LEDs (15 instead of 20) result in lower consumption, but this LED light bar still delivers a combined light image with a range of up to 380 meters.

The Osram FX500-CB GEN 2 is of course e-marked, with ECE R10 and 2x ECE R149 markings. The LED light bar has a durable die-cast aluminum body, with a rock-shot-proof polycarbonate lens, and is IP-rated according to IP6K8 & IP9K9K.

The FX500-CB GEN 2 is approved and perfectly suited for vehicles both on and off-road, with a 5-year warranty from Osram.

This LED light bar has a form factor of 17.5″ with a slim, stylish and modern design. The FX500-CB GEN 2 contains Osram’s own high-quality LEDs, with a lifespan of up to 5,000 hours. The LED light bar has a unique reflector design that provides a combined light image with both length and width.

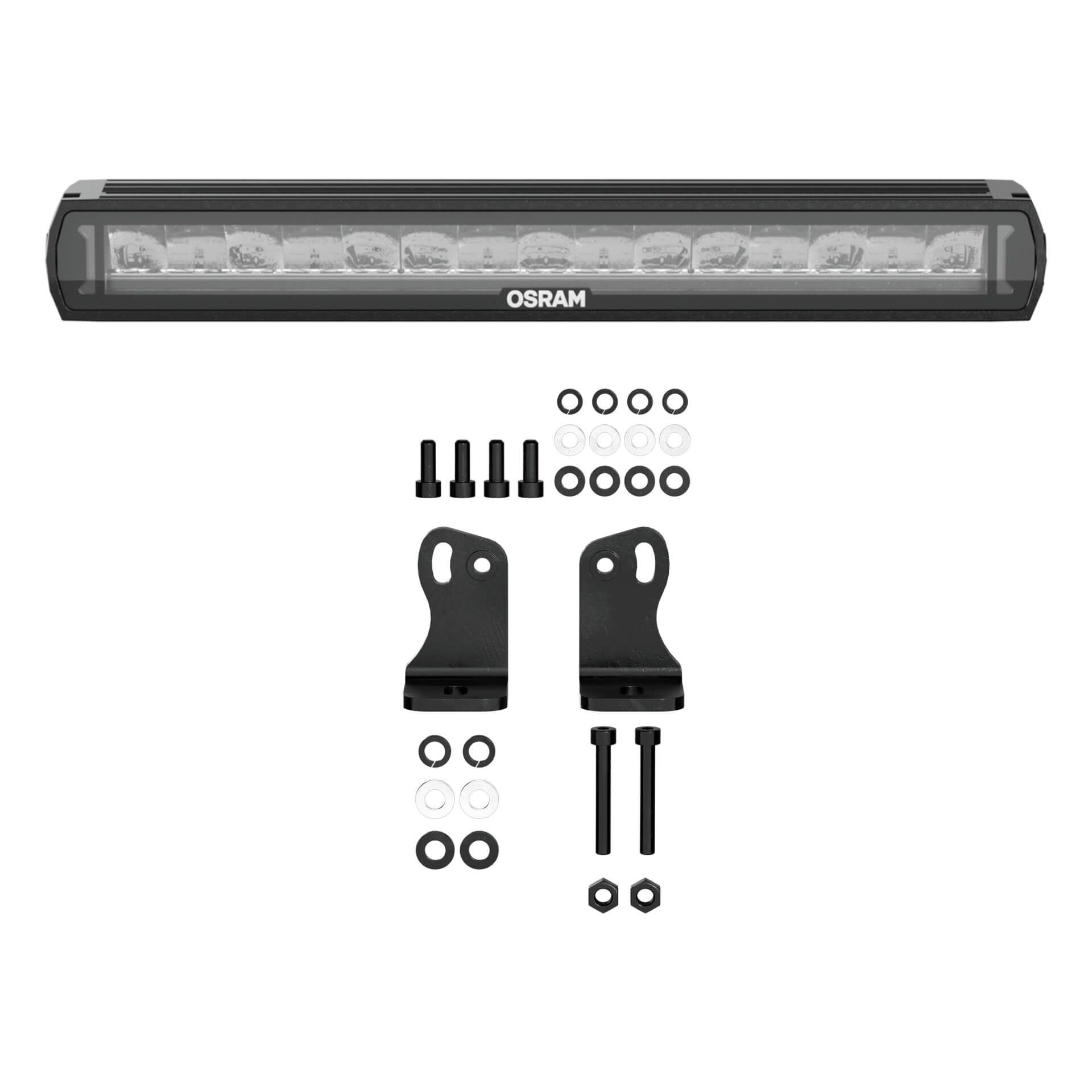

With the FX500-CB GEN 2, side brackets, screws, nuts and spacers for mounting are included. The LED light bar also has a Deutsch connector for easy connection on most vehicles.

Properties:

• An affordable LED additional light ramp with quality from Osram
• Up to 380 meters range with a combined light pattern
• A compact and stylish LED auxiliary light ramp for various vehicles
• E-marked and ECE R10 rated, with IP6K8 & IP9K9K
• Approved for use on and off public roads
• Easy to install with included brackets and wiring

Data:

• E-marked: Yes
• Light image: Combined (length + width)
• Range: 380 m
• Lumen: 3,750 lm
• Light color temp: 6,000 K
• LED: 15 x 3.5W
• Power: 52-56W
• Voltage: 12-24V
• Weight: 1.87 kg

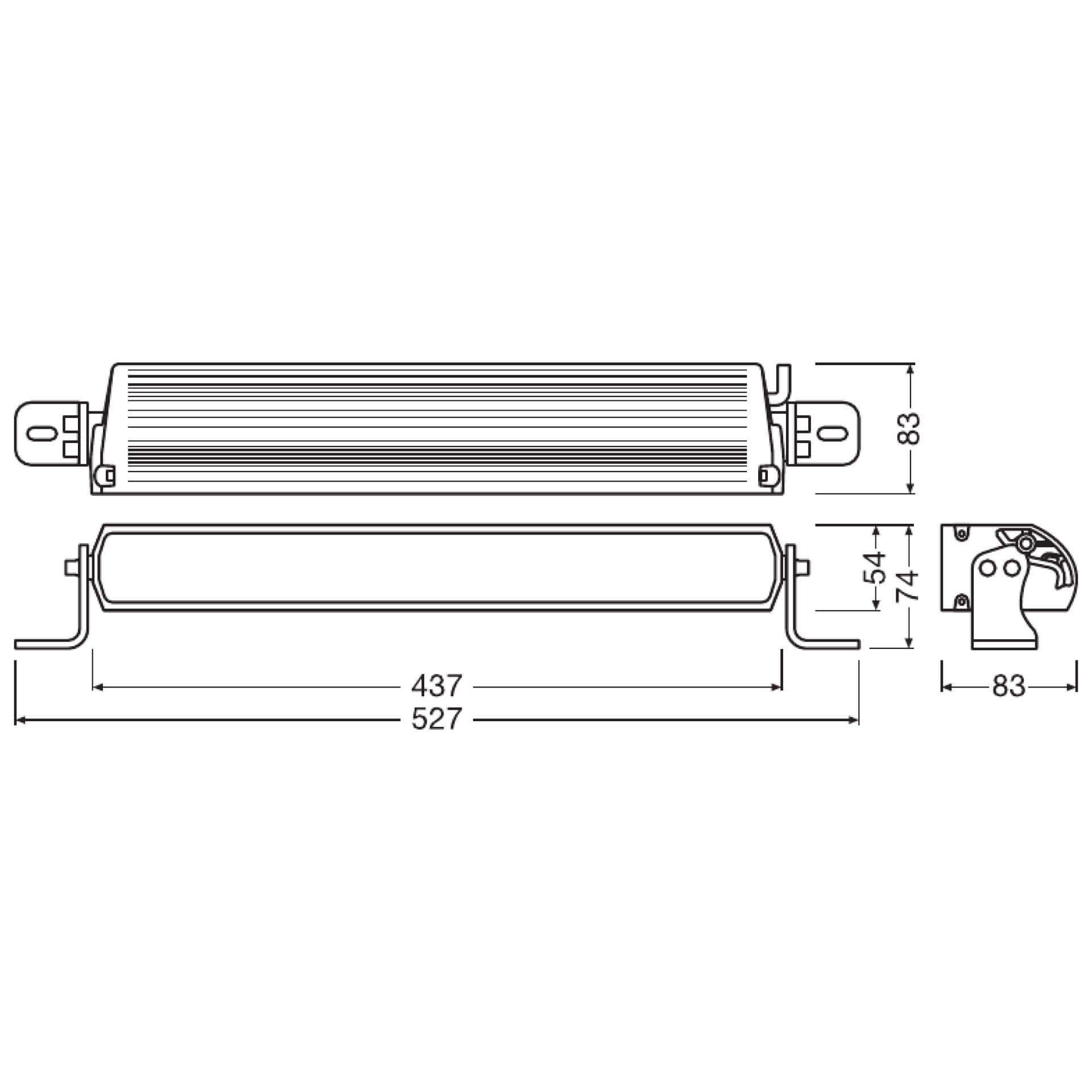

• Width: 437 mm (527 mm with brackets)
• Height: 54mm (74mm with mounts)
• Depth: 83 mm
• Lens material: Polycarbonate
• Lamp housing: Powder-coated aluminium
• Contact: Deutsch (DT04-2P, DT06-2S)
• IP class: IP6K8 & IP9K9K
• Certificates: ECE R10, 2x ECE R149
• Lifespan: 5,000 hours
• Warranty: 5 years
