OSRAM MX140 WIDE 140mm 6″ LED LIGHT DRL
€ 138.80 EUR excl. vat
NOVELTY!
For the first time, the world-famous Osram has released an LED extra light ramp with sharp optics, its own diodes, the latest technology and DRL.
Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.
Osram 140 mm LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car. An integrated DRL light provides a nice low beam and a nice effect.
The ramp uses 3 high-intensity Osram LEDs that operate at 10 W / pc and provide an impressive brightness of as much as 2000 actual lumens. The DRL function uses 12 white diodes behind a halftone band along the upper edge of the lamp glass.
The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment.
The seal is made according to IP67 and pressure-ventilating membrane to prevent condensation and moisture.
Brutal pressure in the light for its size!
The light image is 45 ° wide with a range of 60m @ 1 lux. These are usually mounted in pairs and then light up longer if they are placed straight ahead.
Perfect for cars with center-mounted radar, eg Volkswagen Golf, Kia Optima and more.
Also available in flood version for mounting on eg ATV or to have as work lighting.
Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12 volts.
Power consumption: 2.5 Amps at 12V
EMC approved and E-marked according to ECE R10, R112 and R7
Power consumption high beam: 30W
Power consumption DRL: 2W
Overvoltage and undervoltage protection, short-circuit protection.
Relay wiring: not included, most universal works.
Withstands severe stresses from weather and wind, vibration and shock resistant.
Light amount: approx. 3000 lumens (approx. 2000 effective lumens)
Range: approx. 60 m @ 1 lux, 120 m @ 0.25 lux
Enclosure class: IP67 + pressure-ventilating membrane

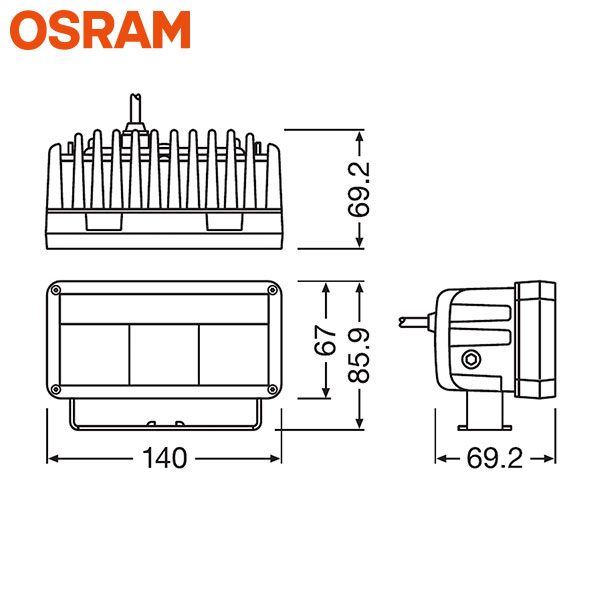

Length: 140 mm
Height with bracket: 86 mm
Height without bracket: 67mm
Depth: 69 mm
Weight: 750 g
Number of LEDs: 3
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years
5 in stock
Description
NOVELTY!
For the first time, the world-famous Osram has released an LED extra light ramp with sharp optics, its own diodes, the latest technology and DRL.
Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.
Osram 140 mm LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car. An integrated DRL light provides a nice low beam and a nice effect.
The ramp uses 3 high-intensity Osram LEDs that operate at 10 W / pc and provide an impressive brightness of as much as 2000 actual lumens. The DRL function uses 12 white diodes behind a halftone band along the upper edge of the lamp glass.
The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment.
The seal is made according to IP67 and pressure-ventilating membrane to prevent condensation and moisture.
Brutal pressure in the light for its size!
The light image is 45 ° wide with a range of 60m @ 1 lux. These are usually mounted in pairs and then light up longer if they are placed straight ahead.
Perfect for cars with center-mounted radar, eg Volkswagen Golf, Kia Optima and more.
Also available in flood version for mounting on eg ATV or to have as work lighting.
Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12 volts.
Power consumption: 2.5 Amps at 12V
EMC approved and E-marked according to ECE R10, R112 and R7
Power consumption high beam: 30W
Power consumption DRL: 2W
Overvoltage and undervoltage protection, short-circuit protection.
Relay wiring: not included, most universal works.
Withstands severe stresses from weather and wind, vibration and shock resistant.
Light amount: approx. 3000 lumens (approx. 2000 effective lumens)
Range: approx. 60 m @ 1 lux, 120 m @ 0.25 lux
Enclosure class: IP67 + pressure-ventilating membrane
Length: 140 mm
Height with bracket: 86 mm
Height without bracket: 67mm
Depth: 69 mm
Weight: 750 g
Number of LEDs: 3
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years
