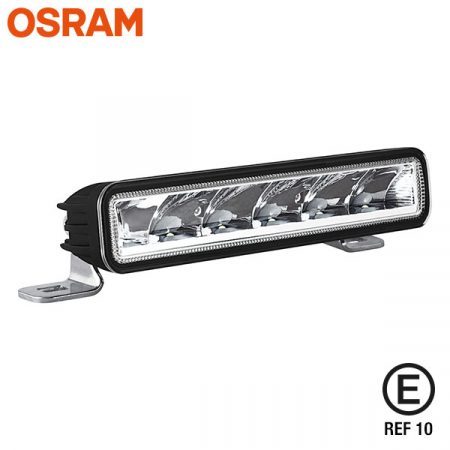

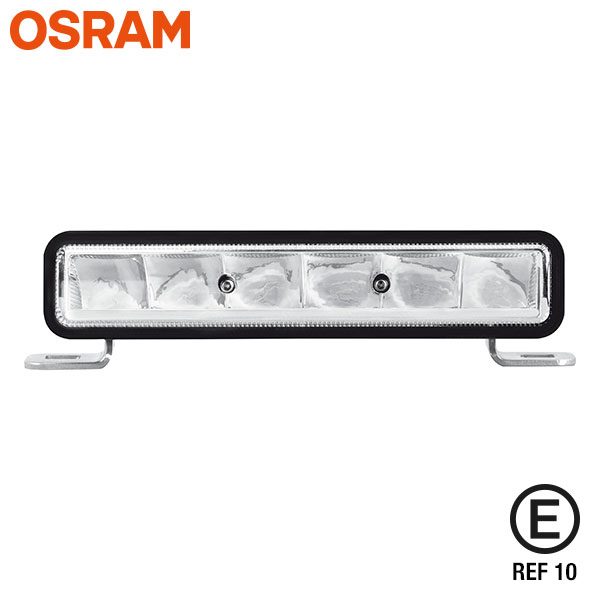

OSRAM SX180 7″ SLIM LED LIGHT BAR

 98.70 EUR excl. vat

NOVELTY!

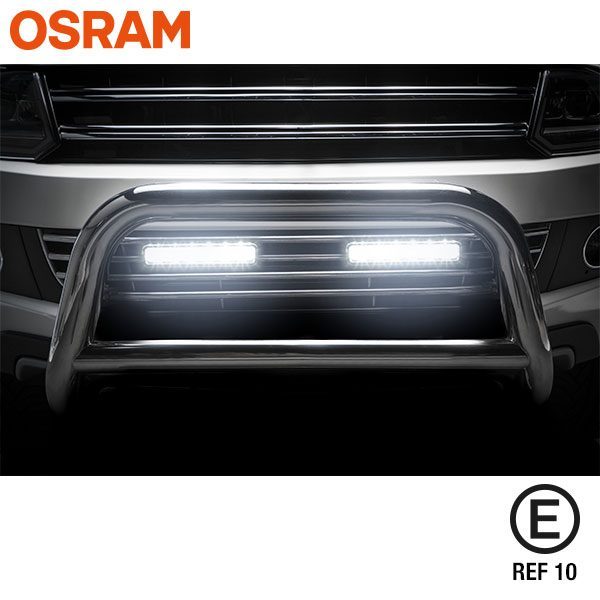

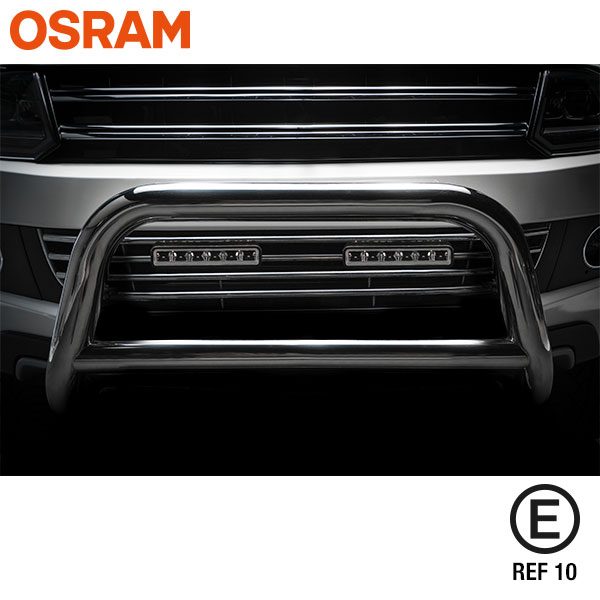

This is the new slim extra light ramp from the well-known Osram. Here, the focus in development has been to get as thin a lamp housing as possible! Good light with only 38mm height, it is among the thinnest in the class and only 0.45kg heavy, it can easily be hung directly between the ribs in the grill e.g.

Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.

Osram SX180 7 ″ LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car.

The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment. Smart curved lens forward without edges facilitates drainage of dirt and snow etc.

The seal is made according to IP69K so can withstand high pressure washing etc. from the front and is very moisture resistant.

Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12-24 volts.
Power consumption: 1.2 Amps at 12V and 0.6 A at 24V
EMC approved and E-marked according to ECE R10 and ECE R112 ref. 10
Specified output power: 14W
Overvoltage and undervoltage protection, short-circuit protection.
Relay wiring: not included, most universal works.

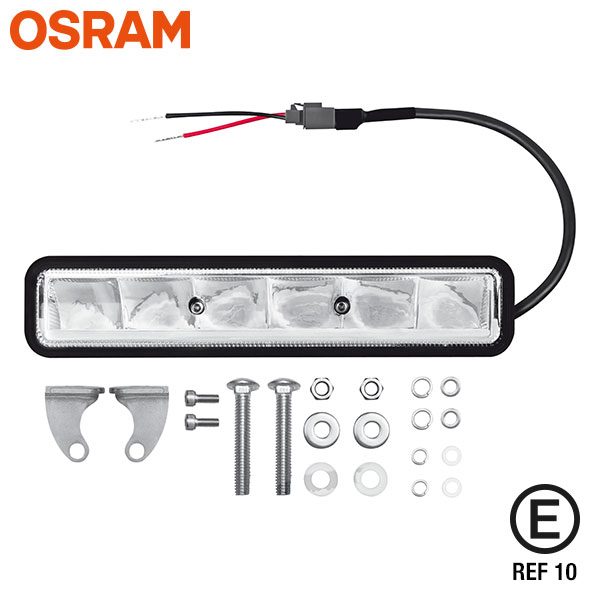

Waterproof connector of larger DT model is mounted
Withstands severe stresses from weather and wind, vibration and shock resistant.
Amount of light: approx. 1860 theoretical lumens (1300 measured lumens)
Range: approx. 190m with 18m width @ 1 lux (385m @ 0.25 lux)
Enclosure class: IP69K
Length without brackets: 182 mm
Height without brackets: 38 mm
Depth: 67 mm
Weight: 50g
Number of LEDs: 6
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years

20 in stock

SKU: LEDDL105-SP Categories: ,

Description

NOVELTY!

This is the new slim extra light ramp from the well-known Osram. Here, the focus in development has been to get as thin a lamp housing as possible! Good light with only 38mm height, it is among the thinnest in the class and only 0.45kg heavy, it can easily be hung directly between the ribs in the grill e.g.

Many LED ramps on the market are incorrectly referred to as Osram ramps as there are or are alleged to be Osram LEDs inside, but it is not Osram who is behind the product unlike this premium product.

Osram SX180 7 ″ LED ramp uses Osram’s very well-made optics based on LFR (LED Facing Reflector) technology. The advantage is that all light from the LED is thrown away in the long run and no stray light is formed near the car.

The lamp housing consists of an aluminum housing of high quality as well as powder coating and salt-resistant treatment. Smart curved lens forward without edges facilitates drainage of dirt and snow etc.

The seal is made according to IP69K so can withstand high pressure washing etc. from the front and is very moisture resistant.

Data:
The lamp housing is made of powder-coated aluminum of the 6061 type.
Voltage: 12-24 volts.
Power consumption: 1.2 Amps at 12V and 0.6 A at 24V
EMC approved and E-marked according to ECE R10 and ECE R112 ref. 10
Specified output power: 14W
Overvoltage and undervoltage protection, short-circuit protection.
Relay wiring: not included, most universal works.
Waterproof connector of larger DT model is mounted
Withstands severe stresses from weather and wind, vibration and shock resistant.
Amount of light: approx. 1860 theoretical lumens (1300 measured lumens)
Range: approx. 190m with 18m width @ 1 lux (385m @ 0.25 lux)
Enclosure class: IP69K
Length without brackets: 182 mm
Height without brackets: 38 mm
Depth: 67 mm
Weight: 50g
Number of LEDs: 6
Lifespan: Up to 50,000 hours
Working range: -40 ° c to + 63 ° c
Lens: Stone shot resistant polycarbonate
Patented optics
Warranty: 5 years
