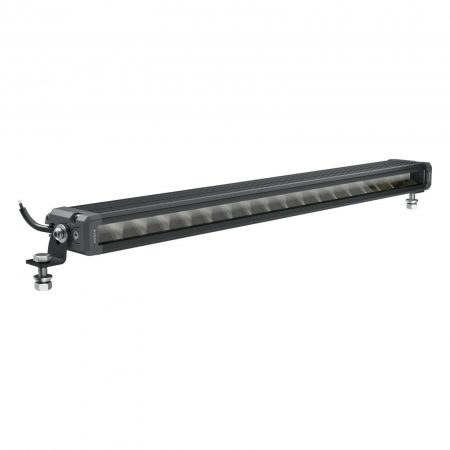

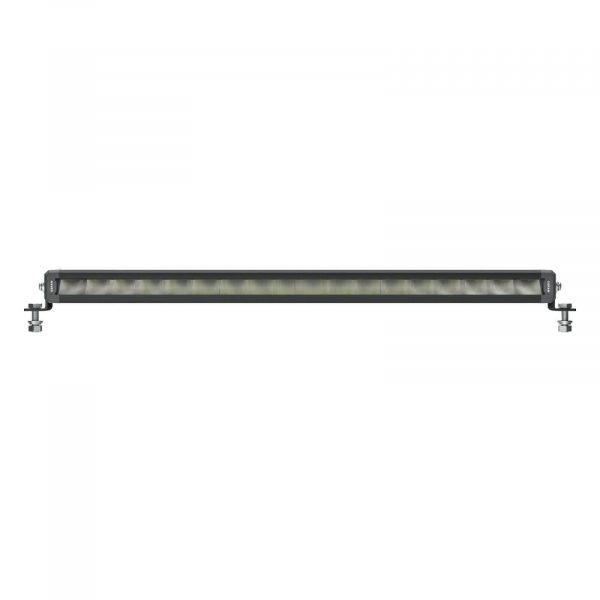

OSRAM VX500 SPOT 21″ LED LIGHTBAR KIT UNIVERSAL

 259.00 EUR excl. vat

Universal kit for OSRAM VX500 LED light ramp.

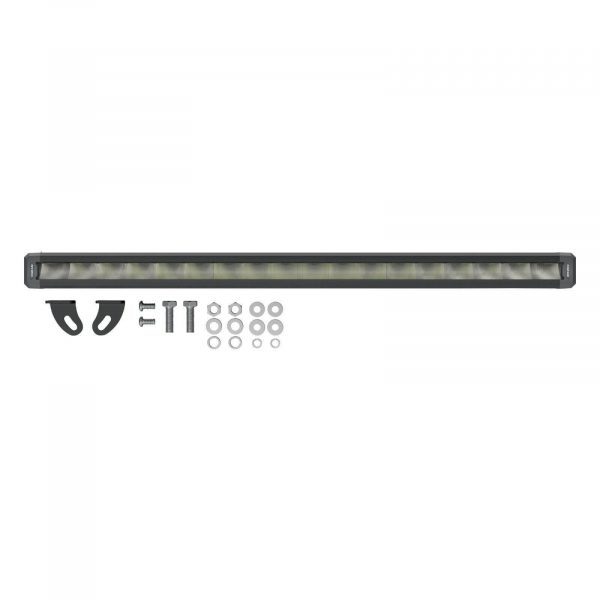

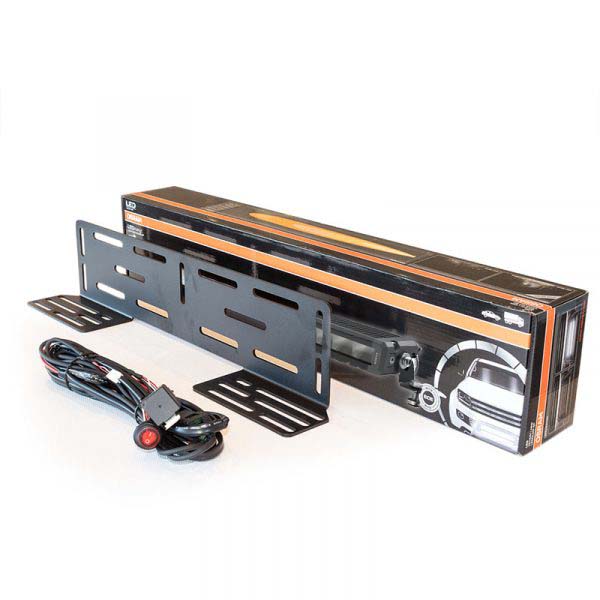

The kit contains:
1x Osram VX500 Spot (LEDDL116-SP)

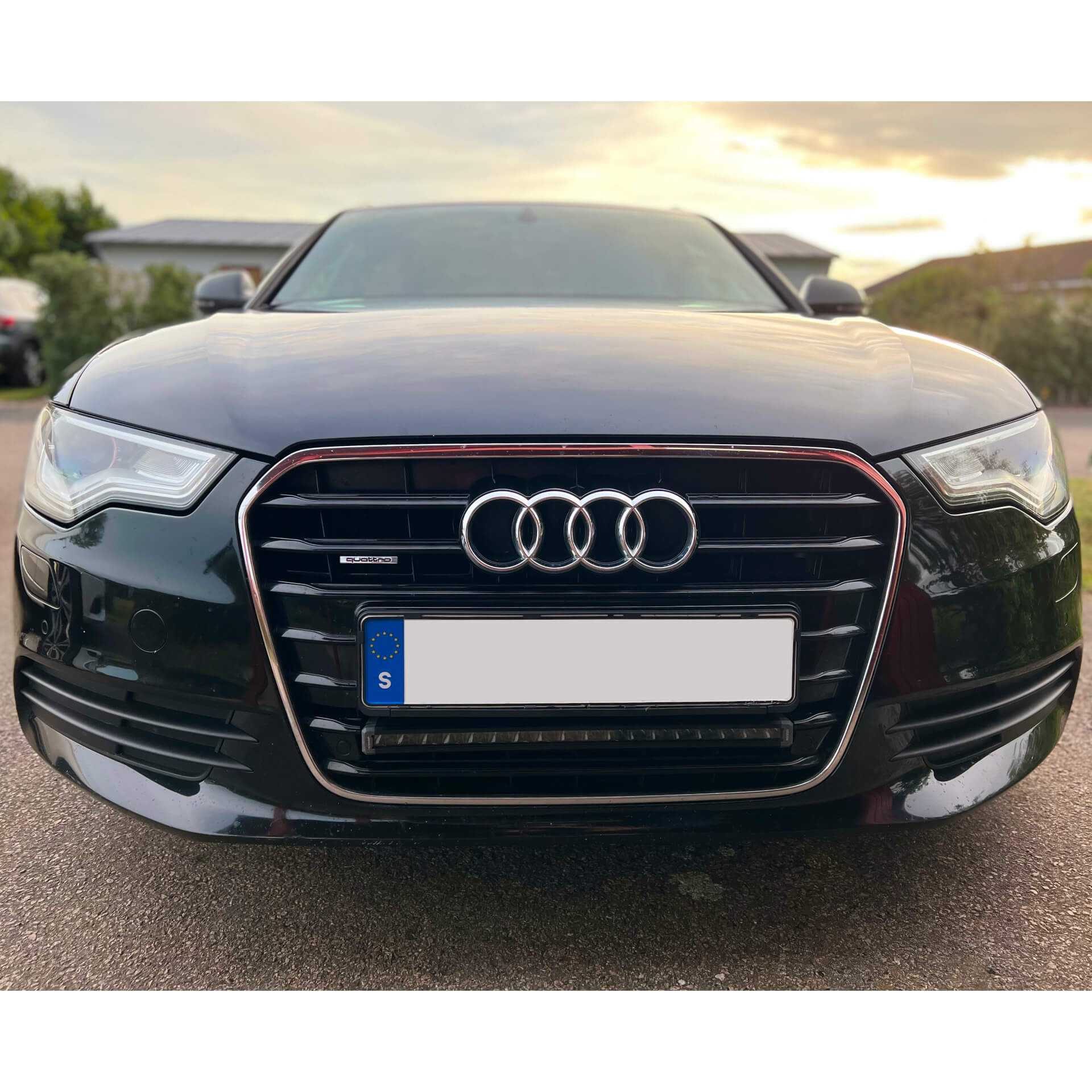

1x Mounting plate that is placed behind the number plate (MTG-2025)

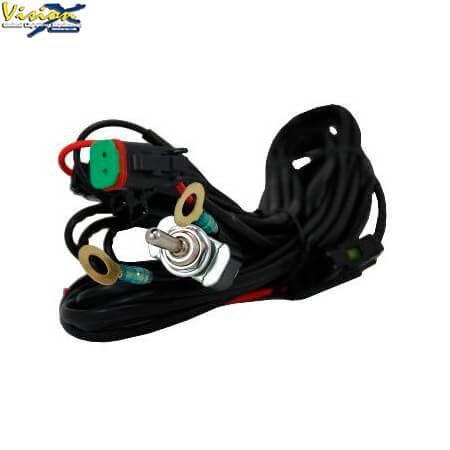

1x Complete relay wiring with fuse and DT connector (P-HARNESS.XIL)

OSRAM LEDriving VX500 is a compact yet very powerful LED lightbar! Osram’s unique optics based on LFR (LED Facing Reflector) technology means that all light from the LED is thrown length-wise forward, with no stray light near the car. This little light bar shines an impressive 830 meters at 0,25 lux or 415 meters at 1 lux.

OSRAM VX500 is only 35 mm high, so it is perfect for recessing and mounting in a grill or front bumper. With a luminous flux of 6000 raw lumens and a color temperature of 6000 Kelvin, it is a small but surprisingly strong light cannon.

If you are looking for a compact and discret LED lightbar, with highest quality and a focused light, the OSRAM VX500 is the right choice!VX single row series has mounting feets both on the sides and sliding feeth mounts underneath / backside of the light bar so practically fits in any mounting plate or clam mounts.

Data:
Power consumption: 63W
Raw lumen: 6000
Effective lumen: 2800
Throw length: 415m @ 1 lux (830m @ 0.25 lux)
Kelvin: 6000K
Voltage: 9-32V
Rating: IP67
Contact: loose leaders

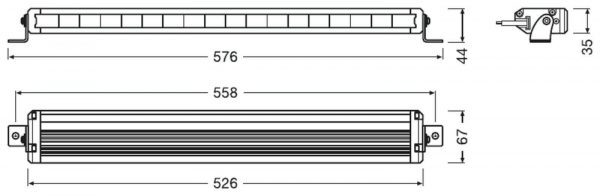

Width: 526 mm (21 ″)
Depth: 67 mm
Height: 35 mm
Lens: Stone shot resistant polycarbonate
The lamp housing is made of powder-coated aluminum of the 6061 type.
Patented optics
Warranty: 2 years



SKU: LEDDL116-SPKIT Categories: ,

Description

Universal kit for OSRAM VX500 LED light ramp.

The kit contains:
1x Osram VX500 Spot (LEDDL116-SP)
1x Mounting plate that is placed behind the number plate (MTG-2025)
1x Complete relay wiring with fuse and DT connector (P-HARNESS.XIL)

OSRAM LEDriving VX500 is a compact yet very powerful LED lightbar! Osram’s unique optics based on LFR (LED Facing Reflector) technology means that all light from the LED is thrown length-wise forward, with no stray light near the car. This little light bar shines an impressive 830 meters at 0,25 lux or 415 meters at 1 lux.

OSRAM VX500 is only 35 mm high, so it is perfect for recessing and mounting in a grill or front bumper. With a luminous flux of 6000 raw lumens and a color temperature of 6000 Kelvin, it is a small but surprisingly strong light cannon.

If you are looking for a compact and discret LED lightbar, with highest quality and a focused light, the OSRAM VX500 is the right choice!VX single row series has mounting feets both on the sides and sliding feeth mounts underneath / backside of the light bar so practically fits in any mounting plate or clam mounts.

Data:
Power consumption: 63W
Raw lumen: 6000
Effective lumen: 2800
Throw length: 415m @ 1 lux (830m @ 0.25 lux)
Kelvin: 6000K
Voltage: 9-32V
Rating: IP67
Contact: loose leaders
Width: 526 mm (21 ″)
Depth: 67 mm
Height: 35 mm
Lens: Stone shot resistant polycarbonate
The lamp housing is made of powder-coated aluminum of the 6061 type.
Patented optics
Warranty: 2 years

Print Friendly, PDF & Email

Additional information

Weight 0.5 kg
