PORTABEL CAPSTAN WINCH PETROL POWERED 1000 KG FORRESTRY KIT
€ 2,061.95 EUR excl. vat
This winch is lightweight, portable gas (petrol) powered, and has a 1000 kg (2200 lb.) pulling capacity. If you ever need to bring down hung-up trees, pull out-of-reach logs, get a vehicle un-stuck, or haul a moose out of the bush or water, the PCW5000 is for you. Weighting only 16 kg (35 lb.), this Portable Winch is easily carried and can be anchored to anything using the 2 m (6′) long sling provided or the different anchoring accessories.
Use the Portable Winch with any length of double braided polyester low stretch rope. The rope is tied to the object to be moved and wound three or four times around the capstan drum. When the engine is running, the 57 mm capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object. With the 57 mm (2-1/4”) capstan drum, the load will move at a speed up to 12 m/minute (40’/min), depending on the weight of the load. You can also buy the 85 mm (3-3/8”) capstan drum which will give you up to 18 m/minute (60’/min) speed.
Data:
Maximum pulling force: 1 000 kg
Engine: Honda GXH-50 cc
Weight: 16 kg
Gearbox: aluminum
Rope: Minimum rope diameter 10mm
Rope: Maximum rope diameter 16mm (not included)
Line Speed: 12m/min.
Certification: CE Certified

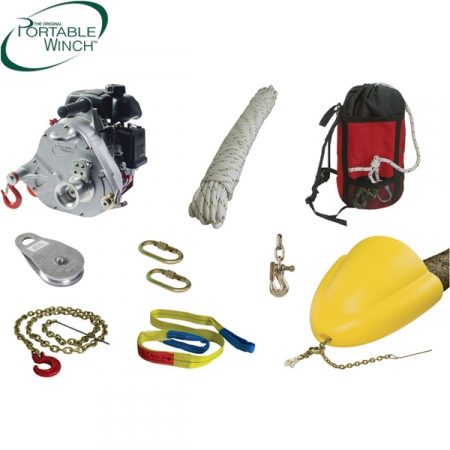

This kit includes:
1 dbp rope – 12 mm x 50 m
1 small bag – holds 50 m.
1 polyester sling – 2,44 m.
1 stainless steel swing side snatch block. 1 aluminium sheave 100 mm diam.
2 steel oval locking carabiner. 25 kn mbs (2550 kg).
1 grad kook 7 mm with latch and 3 chain links. Grade 70 – wll: 2040 kg.
1 skidding cone for logs up to 50 cm diam.
1 choker chain 6 mm x 2,1 m with c – hook and steel rod. 5700 kg mbs.
Look for accessories under “winch accessories”.
1 in stock (can be backordered)
Description
This winch is lightweight, portable gas (petrol) powered, and has a 1000 kg (2200 lb.) pulling capacity. If you ever need to bring down hung-up trees, pull out-of-reach logs, get a vehicle un-stuck, or haul a moose out of the bush or water, the PCW5000 is for you. Weighting only 16 kg (35 lb.), this Portable Winch is easily carried and can be anchored to anything using the 2 m (6′) long sling provided or the different anchoring accessories.
Use the Portable Winch with any length of double braided polyester low stretch rope. The rope is tied to the object to be moved and wound three or four times around the capstan drum. When the engine is running, the 57 mm capstan drum rotates continuously and the friction created by pulling on the free end of the rope pulls the object. With the 57 mm (2-1/4”) capstan drum, the load will move at a speed up to 12 m/minute (40’/min), depending on the weight of the load. You can also buy the 85 mm (3-3/8”) capstan drum which will give you up to 18 m/minute (60’/min) speed.
Data:
Maximum pulling force: 1 000 kg
Engine: Honda GXH-50 cc
Weight: 16 kg
Gearbox: aluminum
Rope: Minimum rope diameter 10mm
Rope: Maximum rope diameter 16mm (not included)
Line Speed: 12m/min.
Certification: CE Certified
This kit includes:
1 dbp rope – 12 mm x 50 m
1 small bag – holds 50 m.
1 polyester sling – 2,44 m.
1 stainless steel swing side snatch block. 1 aluminium sheave 100 mm diam.
2 steel oval locking carabiner. 25 kn mbs (2550 kg).
1 grad kook 7 mm with latch and 3 chain links. Grade 70 – wll: 2040 kg.
1 skidding cone for logs up to 50 cm diam.
1 choker chain 6 mm x 2,1 m with c – hook and steel rod. 5700 kg mbs.
Look for accessories under “winch accessories”.
Additional information
| Weight | 20 kg |
|---|
