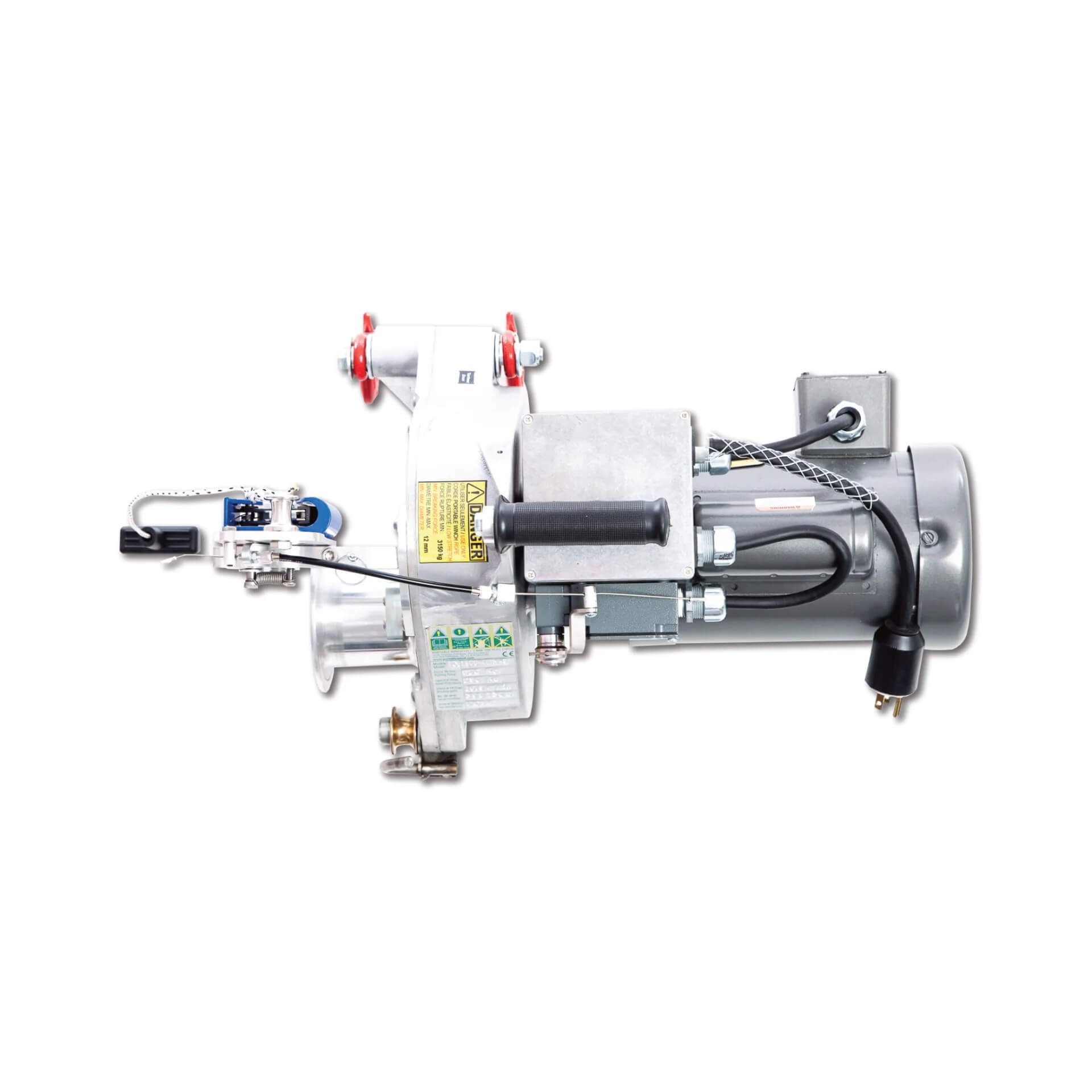

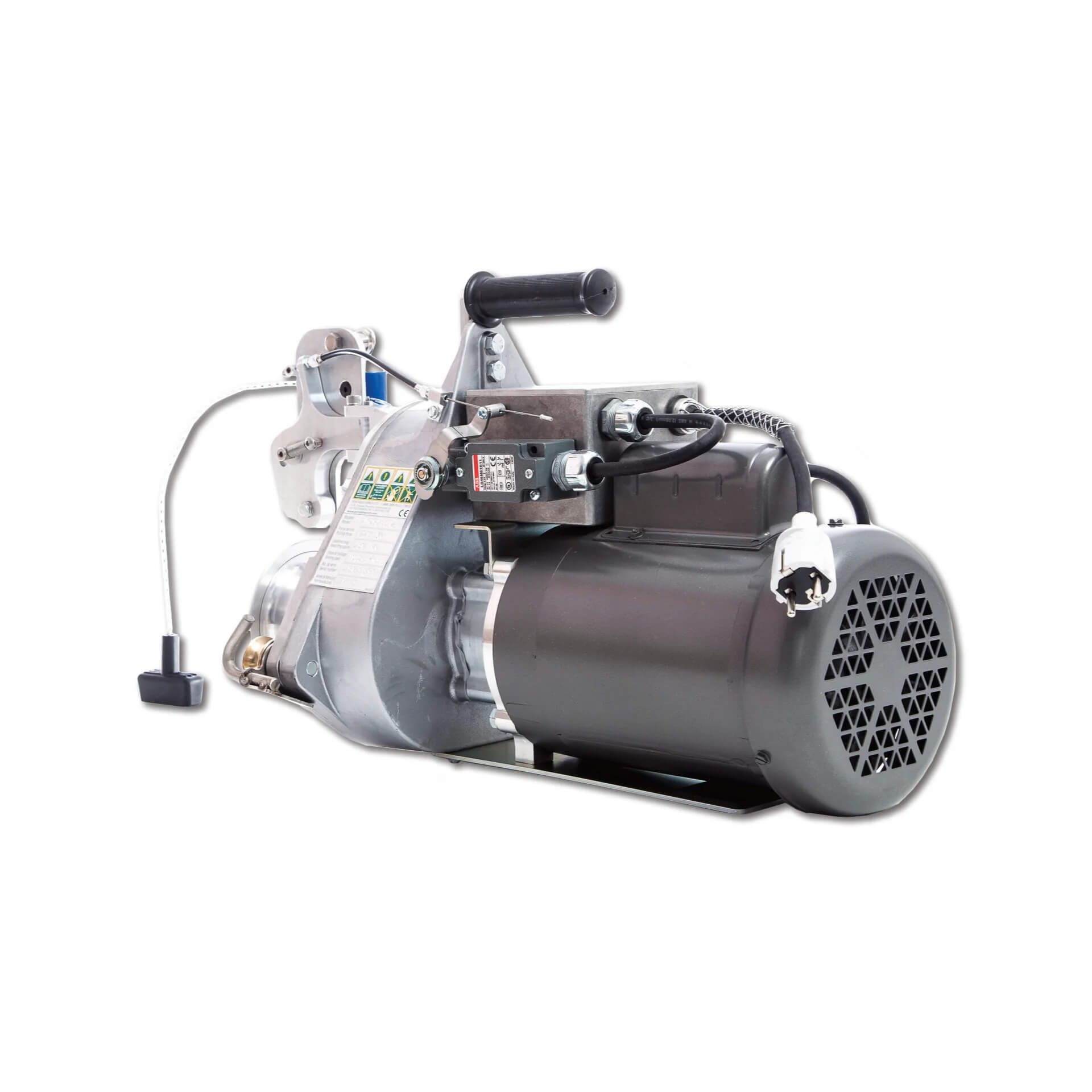

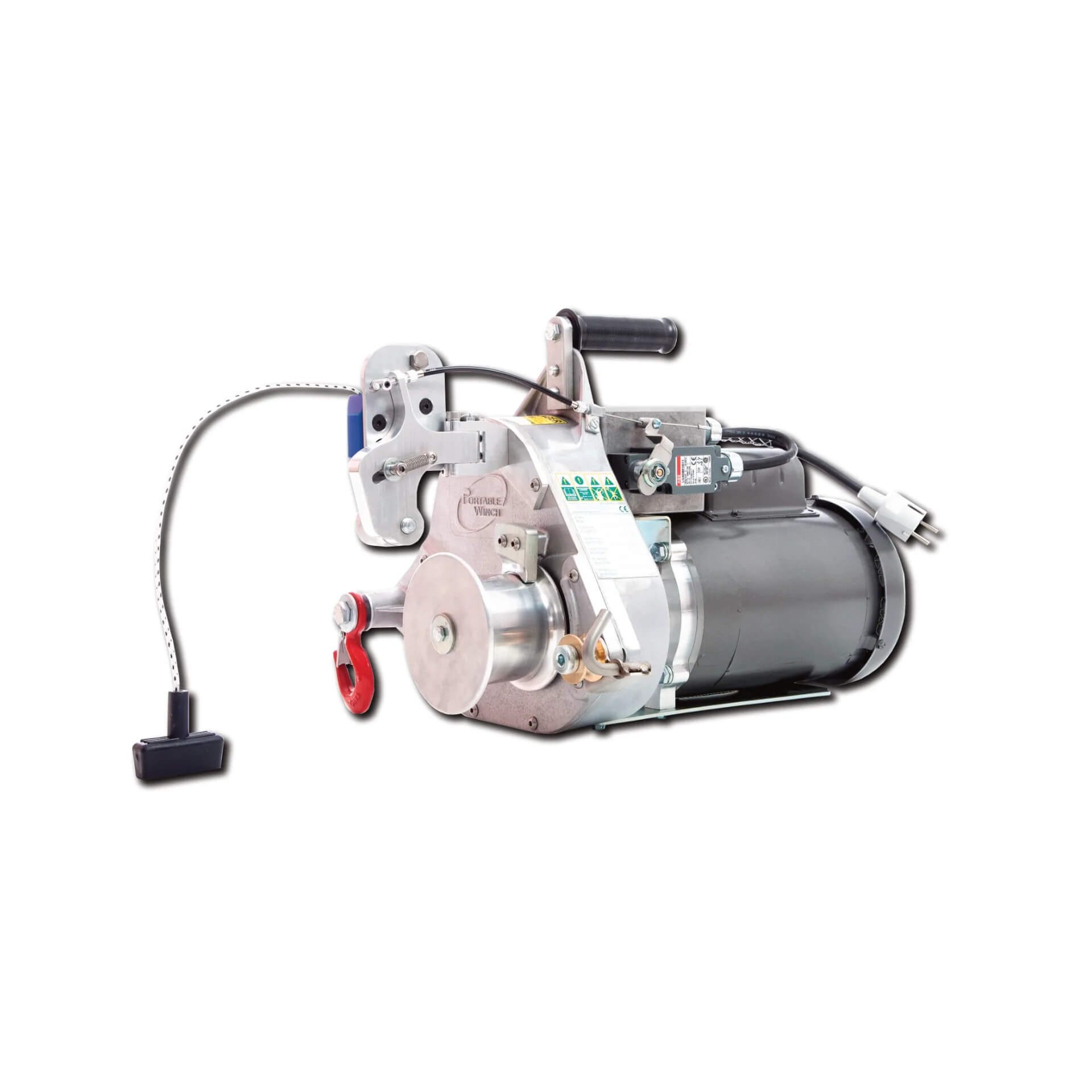

PORTABLE ELECTRIC PULL/LIFT WINCH 820/250 KG
€ 3,081.94 EUR excl. vat
The winch that is plugged in!

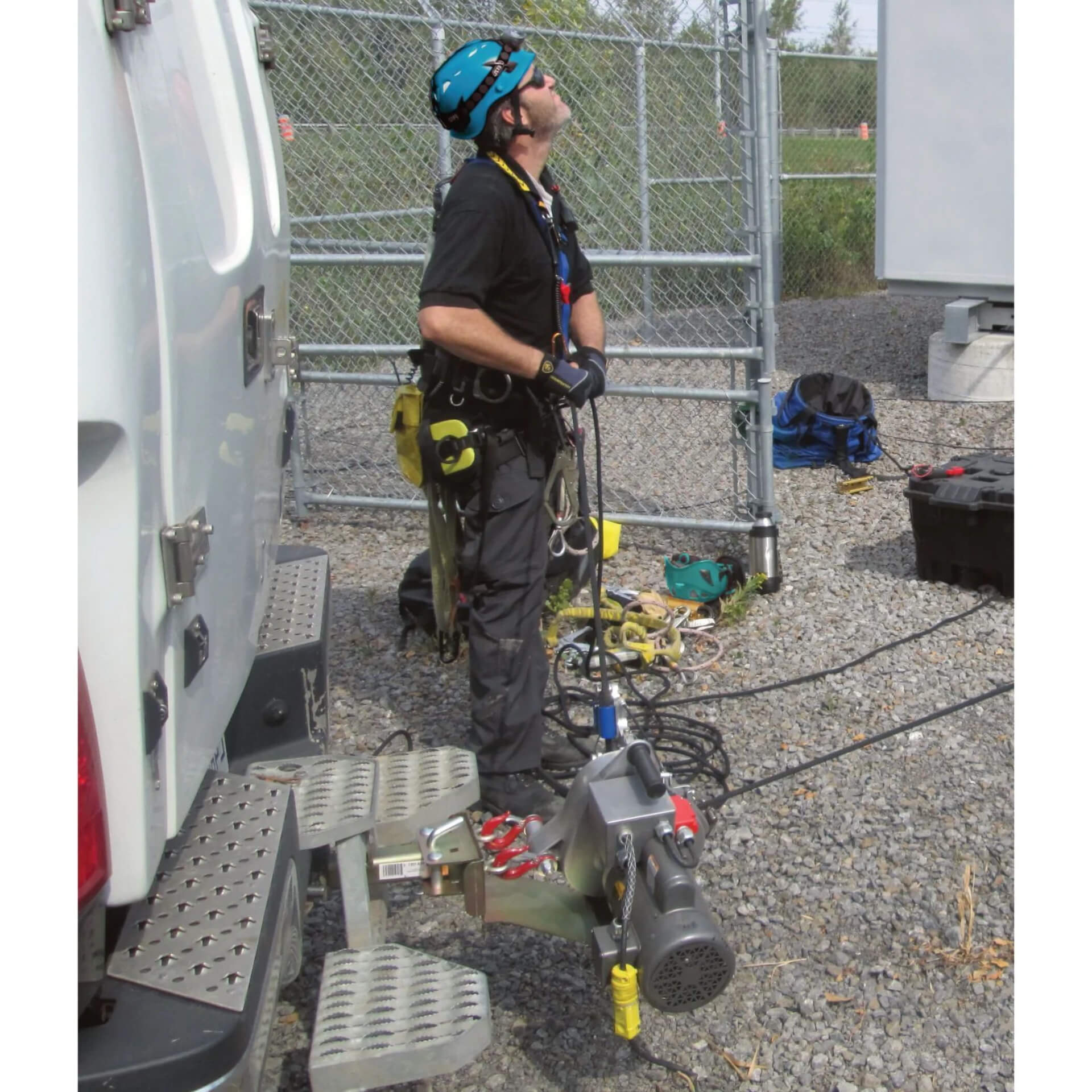

This electric winch is ideal for indoor use, such as pulling wires through pipes or lifting equipment.
It can lift loads of 250 kg with a single line and block and pulley system increases the lifting capacity to 500 kg.
Depending on the lifting purpose, it is equipped with a rope grip system that holds a load in place, allowing the operator to work safely.
The PCT1800 is recommended where gas (petrol) powered winches cannot be used, and is a good alternative when noise is an issue.
Data:
Traction force, single line: 820 kg
Traction force, double rope: 1,640 kg
Lifting power, single rope: 250 kg
Lifting power, double rope: 500 kg
Speed: 7.2 m/min
Weight: 27 kg
Motor: Baldor AC electric TEFC, 0.56 kW – 0.75 hp @ 2850 rpm
Clutch: Direct acting (no clutch)
Power supply: 220 V
Dimensions: 55.6 cm x 36.6 cm x 36.6 cm
Minimum breaking strength (MBS): 3.3 tonnes
Out of stock, but can be backordered. We will notify you of delivery time once order has been made.
Description
The winch that is plugged in!
This electric winch is ideal for indoor use, such as pulling wires through pipes or lifting equipment.
It can lift loads of 250 kg with a single line and block and pulley system increases the lifting capacity to 500 kg.
Depending on the lifting purpose, it is equipped with a rope grip system that holds a load in place, allowing the operator to work safely.
The PCT1800 is recommended where gas (petrol) powered winches cannot be used, and is a good alternative when noise is an issue.
Data:
Traction force, single line: 820 kg
Traction force, double rope: 1,640 kg
Lifting power, single rope: 250 kg
Lifting power, double rope: 500 kg
Speed: 7.2 m/min
Weight: 27 kg
Motor: Baldor AC electric TEFC, 0.56 kW – 0.75 hp @ 2850 rpm
Clutch: Direct acting (no clutch)
Power supply: 220 V
Dimensions: 55.6 cm x 36.6 cm x 36.6 cm
Minimum breaking strength (MBS): 3.3 tonnes
Additional information
| Weight | 20 kg |
|---|
