VISION X 185W 24V 100-277V POWER SUPPLY
€ 188.83 EUR excl. vat

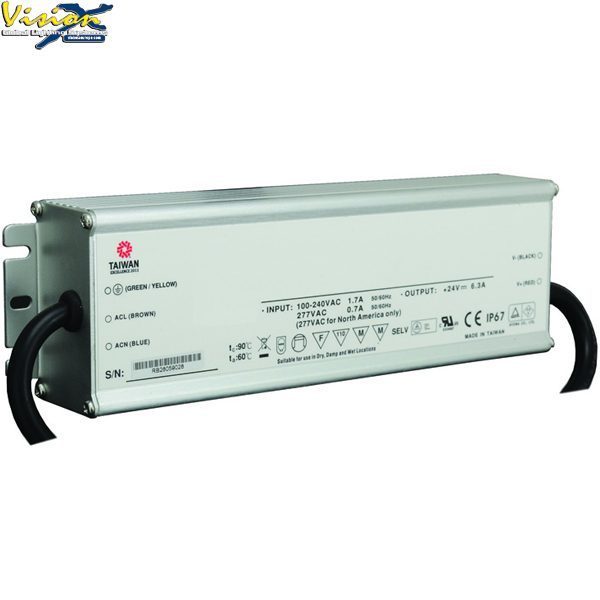

The 185W transformer. Converts 100-277V to 24V. The 185W transformer is designed specifically to run all the LED lighting that manages 24V. Maximum ampere consumption of LED lighting will be 7.8 Amps. at 24V.
The transformer converts AC power from 100V up to 277V down to 24V required to operate for example Pit Master or Shockwave LED lighting.
Data:
The transformer is made of aluminum
Capacity AMP: 7.8A at 24V
Capacity Wattage: 187.2W
Voltage output: 24VDC (adjustable 22 ~ 27V)
Max sprinkle up: 150mVp-p
Efficiency: Up to 94 %
Tolerant Volt + / – 1.0 %
Voltage input: 127 ~ 432 VDC
IP class: IP-67
EMC Class: CISPR 22
Operating temperature: -40° Celsius ~ +70° Celsius
Weatherproof Deutsch connector Plug-n-Play
1 in stock
Description
The 185W transformer. Converts 100-277V to 24V. The 185W transformer is designed specifically to run all the LED lighting that manages 24V. Maximum ampere consumption of LED lighting will be 7.8 Amps. at 24V.
The transformer converts AC power from 100V up to 277V down to 24V required to operate for example Pit Master or Shockwave LED lighting.
Data:
The transformer is made of aluminum
Capacity AMP: 7.8A at 24V
Capacity Wattage: 187.2W
Voltage output: 24VDC (adjustable 22 ~ 27V)
Max sprinkle up: 150mVp-p
Efficiency: Up to 94 %
Tolerant Volt + / – 1.0 %
Voltage input: 127 ~ 432 VDC
IP class: IP-67
EMC Class: CISPR 22
Operating temperature: -40° Celsius ~ +70° Celsius
Weatherproof Deutsch connector Plug-n-Play
Additional information
| Weight | 1.2 kg |
|---|
