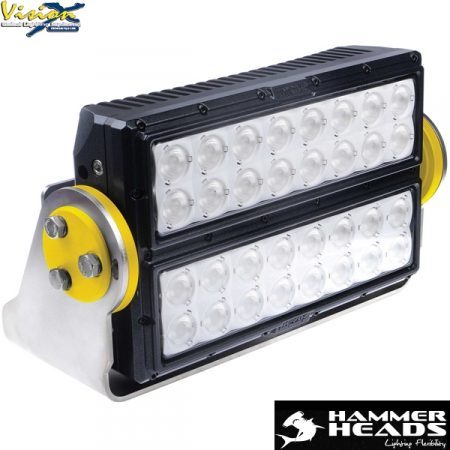

VISION X HAMMERHEADS 32 LED 320W 10°

Description

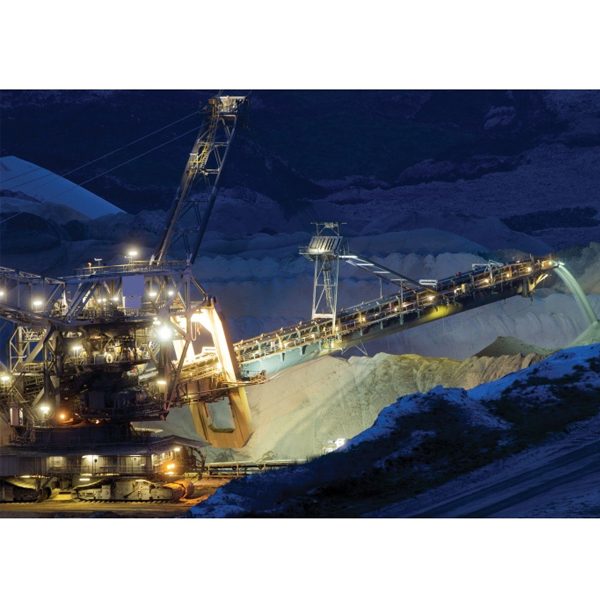

Hammerheads, the toughest lighting on the market designed and tested to the highest standards on the absolutely most vulnerable applications like oil rigs, mining equipment and heavy industry.

Data:

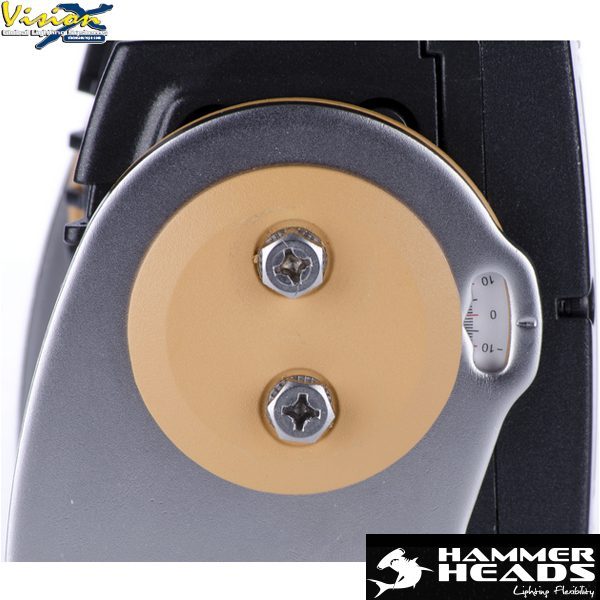

Revolutionary Protrac® 360° Aiming system
Color Temperature: 6 000 Kelvin
Voltage: 11-65VDC
LED Type: Cree XM-L2
Power Consumption: 12.53 Amps at 24V DC
IP Rating: IP69K
Dust Proof & Water Submersible: 3m
Vibration Dampened & Shock Proof: Up to 60G
EMC/EMI rating: CISPR 25 – Class 3

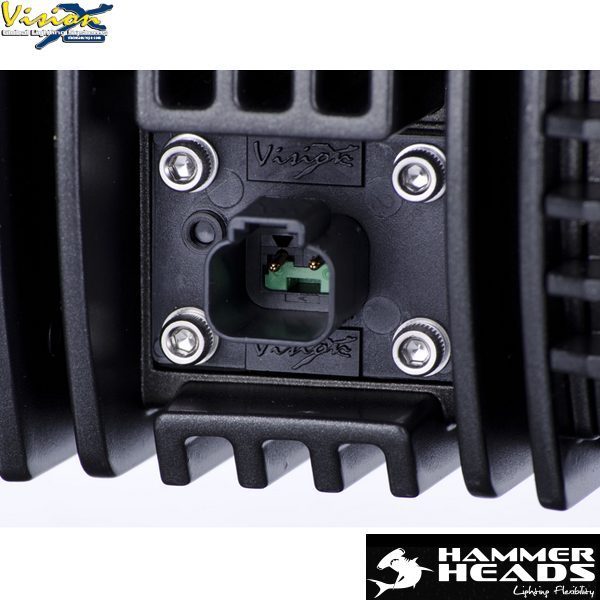

Connector: Deutsch DT04-2P with gold pins
Lens: Polycarbonate
Enviromental Coating: Interpon 810
Bracket Material: 5mm 304 Stainless Steel
Bolt Size: M12
Width: 386 mm
Height: 230 mm (bracket included)
Depth: 164 mm
Number of LEDs: 32 pcs. x 10W
Watt: 320
Weight: 11 kg
Raw lumens: 29 446
Effective lumens: 19 458

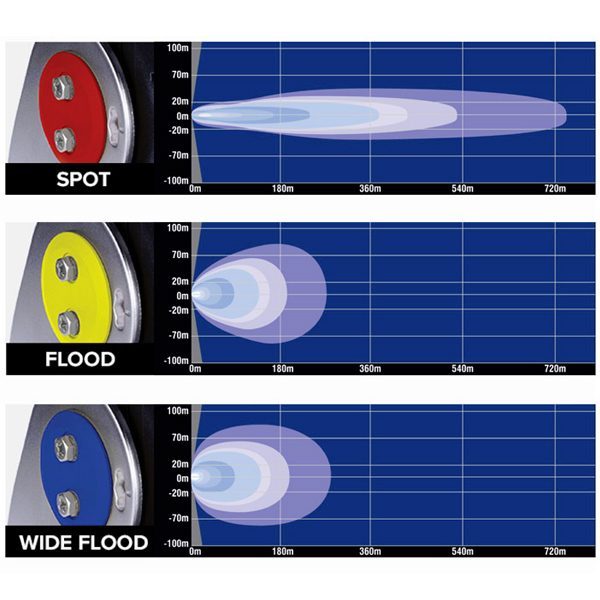

Light Patterns: 10° Spot (Also available in 40°, 60°)
