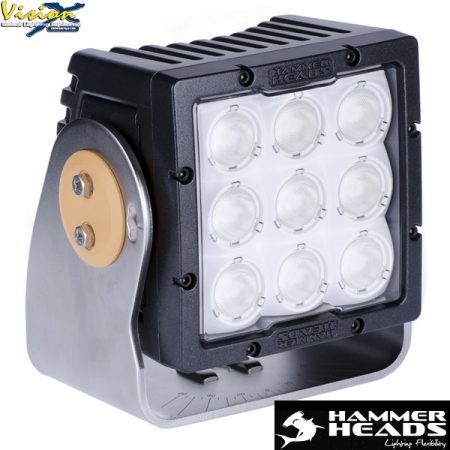

VISION X HAMMERHEADS 9 LED 90W 40°

Description

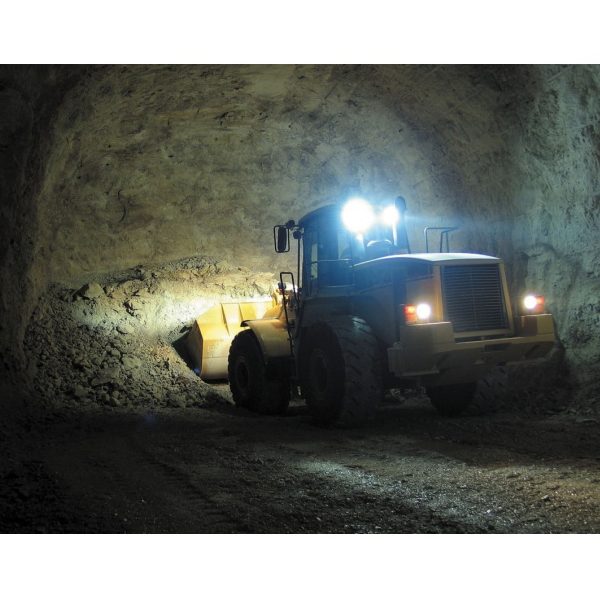

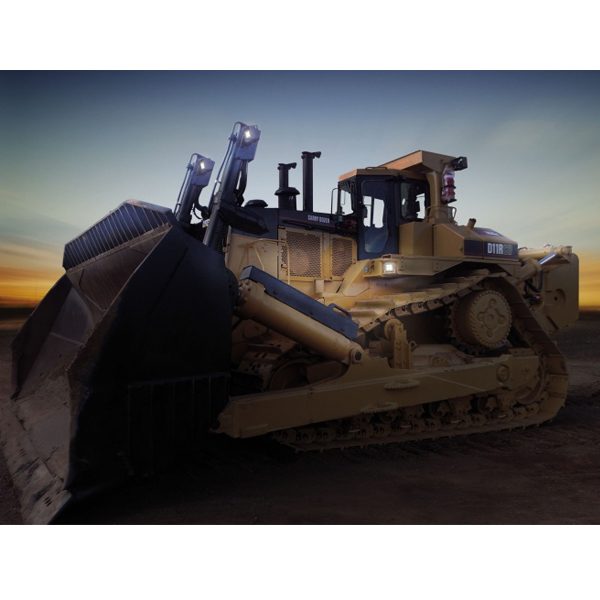

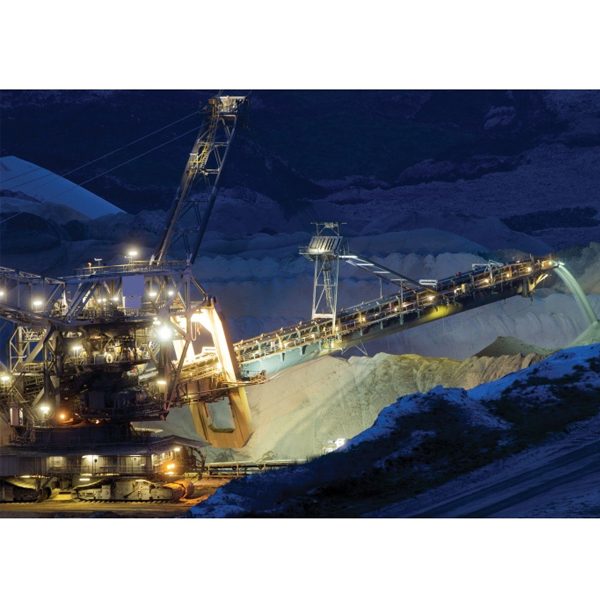

Hammerheads, the toughest lighting on the market designed and tested to the highest standards on the absolutely most vulnerable applications like oil rigs, mining equipment and heavy industry.

Data:

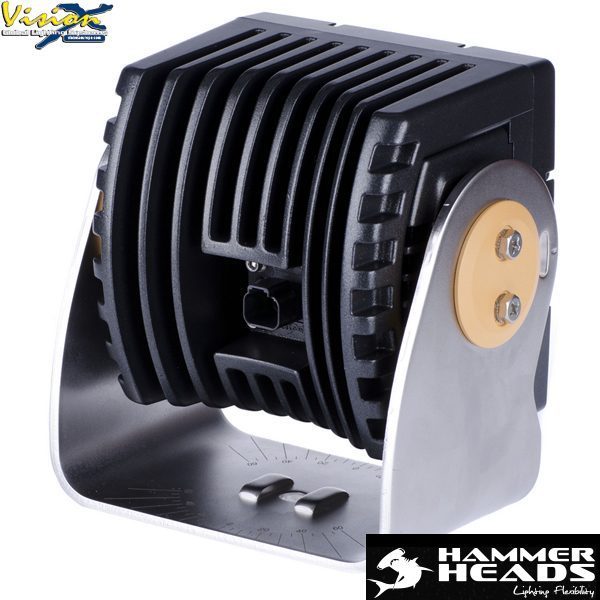

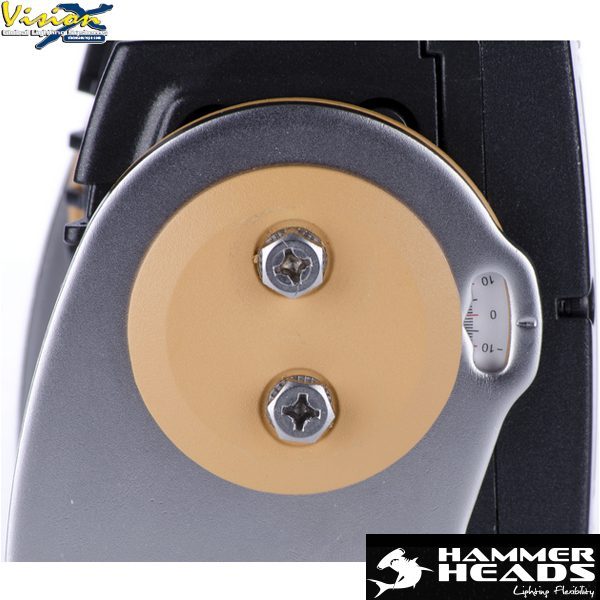

Revolutionary Protrac® 360° Aiming system
Color Temperature: 6 000 Kelvin
Voltage: 11-65VDC
LED Type: Cree XM-L2
Power Consumption: 3.74 Amps at 24V DC
IP Rating: IP69K
Dust Proof & Water Submersible: 3m
Vibration Dampened & Shock Proof: Up to 60G
EMC/EMI rating: CISPR 25 – Class 3

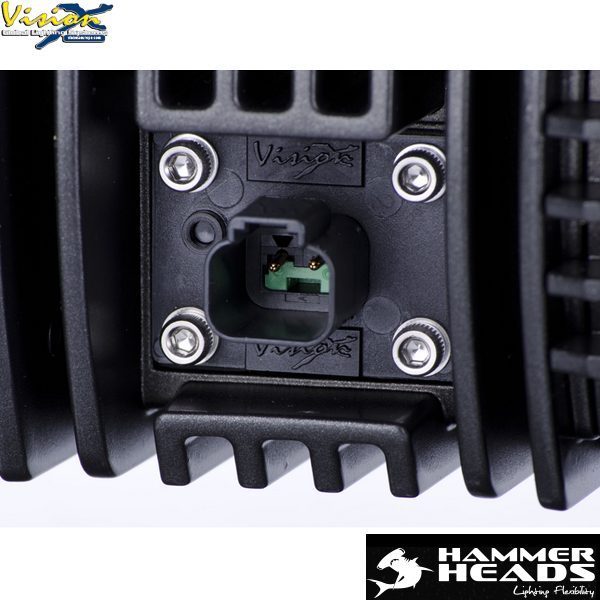

Connector: Deutsch DT04-2P with gold pins
Lens: Polycarbonate
Enviromental Coating: Interpon 810
Bracket Material: 5mm 304 Stainless Steel
Bolt Size: M10
Width: 175 mm
Height: 173 mm (bracket included)
Depth: 125 mm
Number of LEDs: 9 pcs. x 10W
Watt: 90
Weight: 4.4 kg
Raw lumens: 8 281
Effective lumens: 5 849

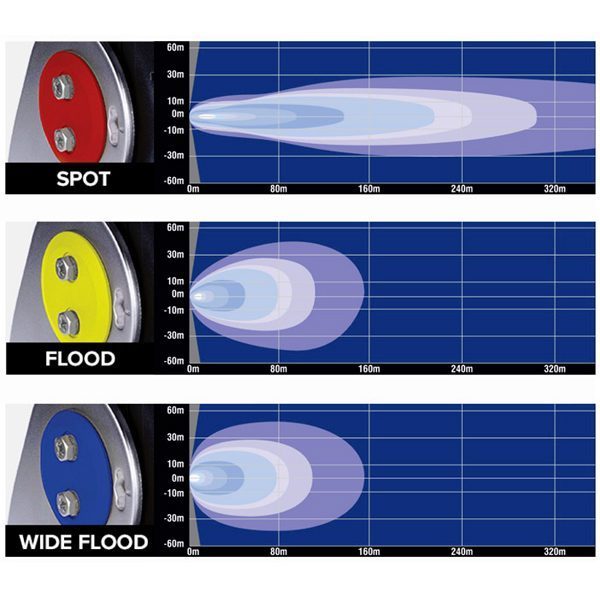

Light Patterns: 40° Flood (also available in 10°, 60°)
