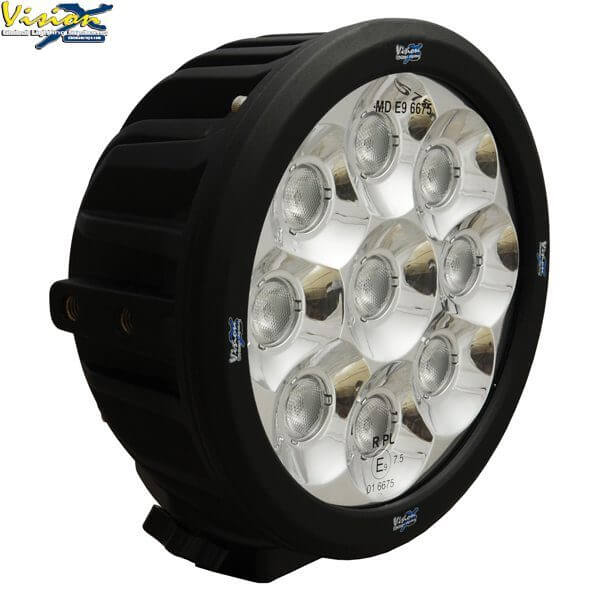

VISION X TRANSPORTER PRIME 6.5″ 9 LED 45W 40°

Description

Vision X Transporter is an E-marked extra light with 9 pcs. diodes and which replace previous generation lighting such as halogen and xenon on vehicles. Now it’s over to replace broken light bulbs and discharge tubes. Easy installation, a lot of light, low power consumption and an enormous resistance to weather, wind and external damage speak for the LED lights.

Data:
Transporter Prime 9 LED
E-marked Lamp housing: 6061 aluminum.
Mount: “Trunnion” mount 105 degree adjustment option.
Easy installation with + & – cable only.
Cabling: Plug & play cabling (Deutsch contacts)
Voltage: 9-32 volts.
Small installation size.
Withstands severe stresses from weather and wind.
Power consumption: 3.8 Amp at 12 v.
IP class: IP68
Vibration class: 15.6G
Diameter: 171 mm. (excl. mounting bracket)
Depth: 116 mm.
Watt: 45
Number of LEDs: 9 pcs. x 5W
Raw lumen: 4,752
Effective lumen: 3 330
Lifespan of diodes: 50,000 hours
Power diodes: 90% of full power
Lens: Polycarbonate, almost unbreakable
Optical purity: 90%
Light image: 40 ° (Flood)
