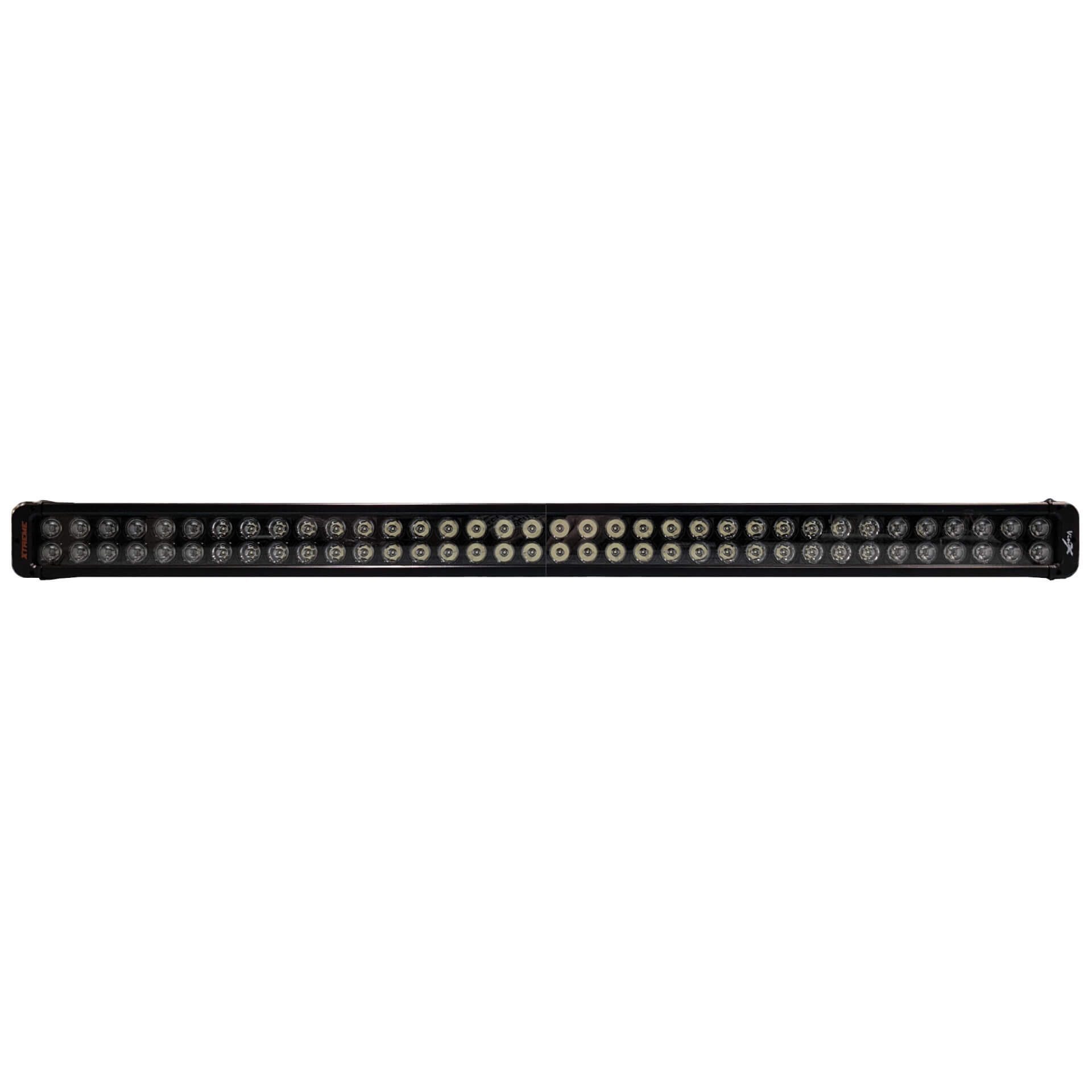

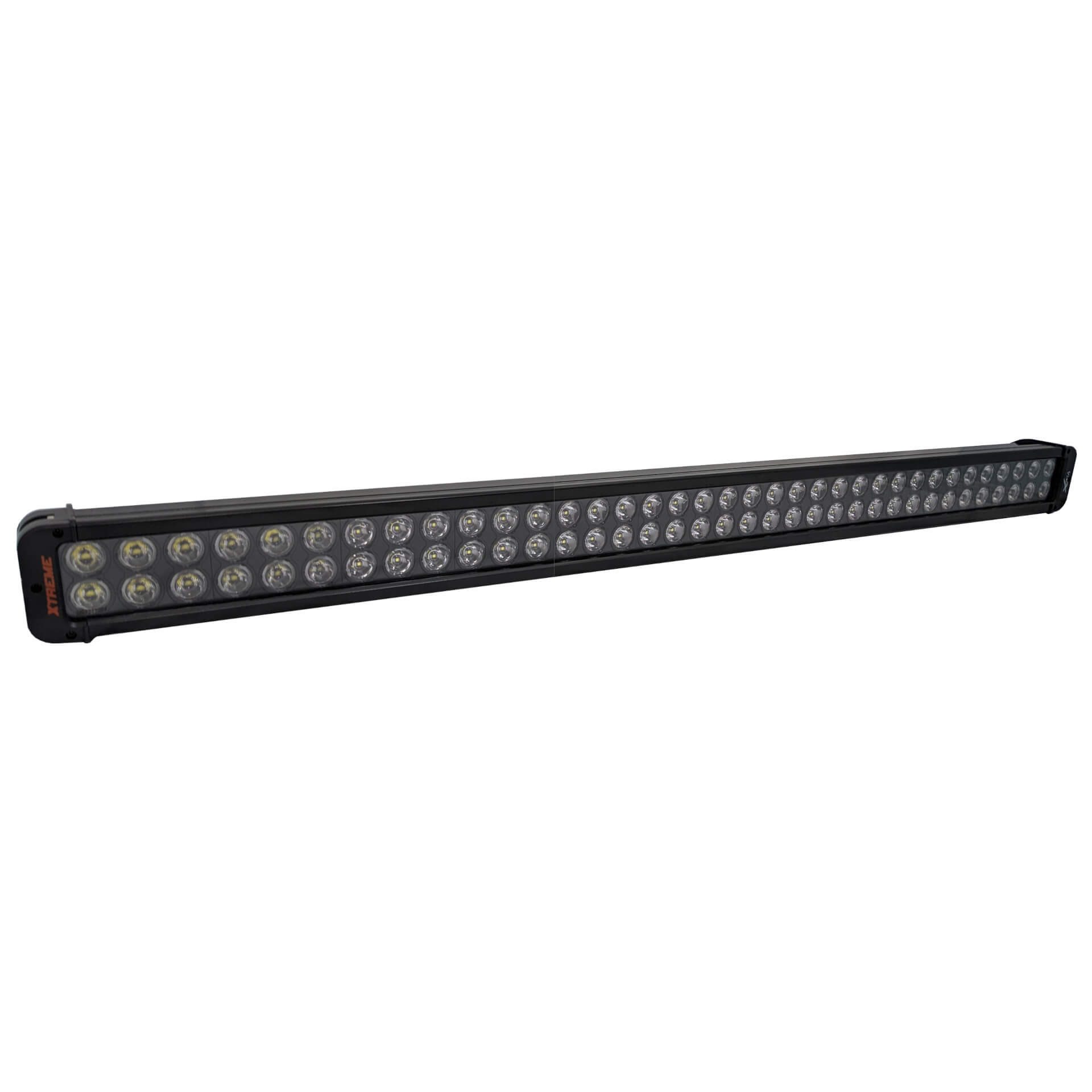

VISION X XMITTER BLACK EDITION 24V 40″ 360W 10°/25°
€ 1,981.00 EUR excl. vat
The optimal LED ramp for mounting on the car / truck as extra light!
With so-called “Multi Optics”, the LED ramp provides 12,672 lumens in 25 ° spread and 25,344 lumens in 10 ° spread, which means that you get both length and width of the light. In total, the ramp provides 38,016 lumens. (A 35W Xenon lamp produces approx. 3,000 lumens).
This is the Black Edition version of this LED ramp, with a black background that gives a more discreet look than previously chrome background.
Data:
- Lamp housing: Robust aluminum
- Voltage: 24V
- Power consumption: 15 Amps at 24V
- IP rating: IP68
- Vibration Class: 15.6G
- Operating temperature: -40°C – +80°C
- Height: 75mm (excluding brackets)
- Width: 85mm
- Length: 1 011mm
- Lens: Polycarbonate
- Watt: 360
- LED: 72 pcs. x 5W
- Raw lumens: 38 016
- Effective lumens: 26 640
- Light pattern: 10° Spot (25 344 lumens) and 25° Euro (12 672 lumens)
- Optic figuration: 25°/25°/10°/10°/10°/10°/10°/10°/10°/10°/25°/25°
Out of stock, but can be backordered. We will notify you of delivery time once order has been made.
Description
The optimal LED ramp for mounting on the car / truck as extra light!
With so-called “Multi Optics”, the LED ramp provides 12,672 lumens in 25 ° spread and 25,344 lumens in 10 ° spread, which means that you get both length and width of the light. In total, the ramp provides 38,016 lumens. (A 35W Xenon lamp produces approx. 3,000 lumens).
This is the Black Edition version of this LED ramp, with a black background that gives a more discreet look than previously chrome background.
Data:
- Lamp housing: Robust aluminum
- Voltage: 24V
- Power consumption: 15 Amps at 24V
- IP rating: IP68
- Vibration Class: 15.6G
- Operating temperature: -40°C – +80°C
- Height: 75mm (excluding brackets)
- Width: 85mm
- Length: 1 011mm
- Lens: Polycarbonate
- Watt: 360
- LED: 72 pcs. x 5W
- Raw lumens: 38 016
- Effective lumens: 26 640
- Light pattern: 10° Spot (25 344 lumens) and 25° Euro (12 672 lumens)
- Optic figuration: 25°/25°/10°/10°/10°/10°/10°/10°/10°/10°/25°/25°
Additional information
| Weight | 7 kg |
|---|
