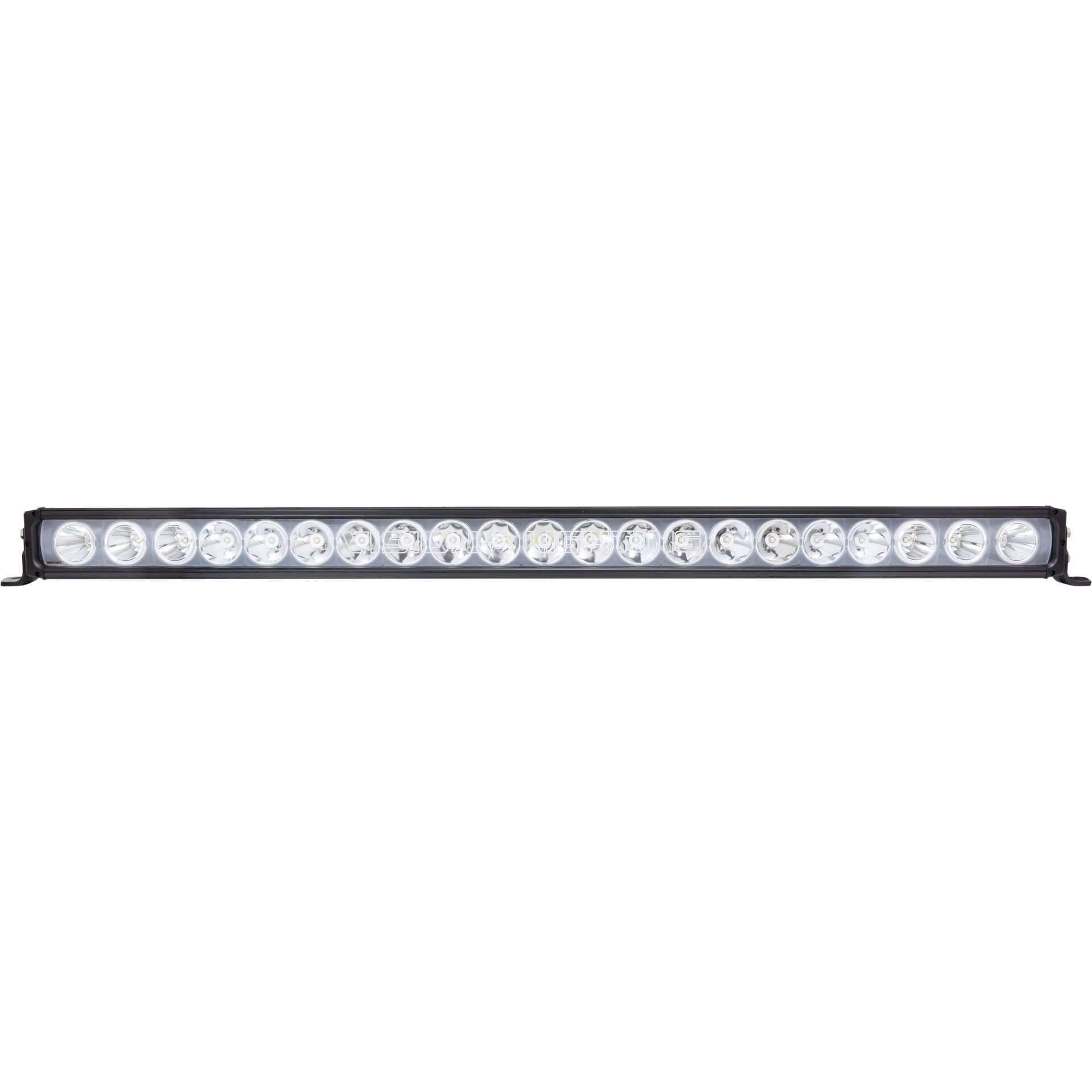

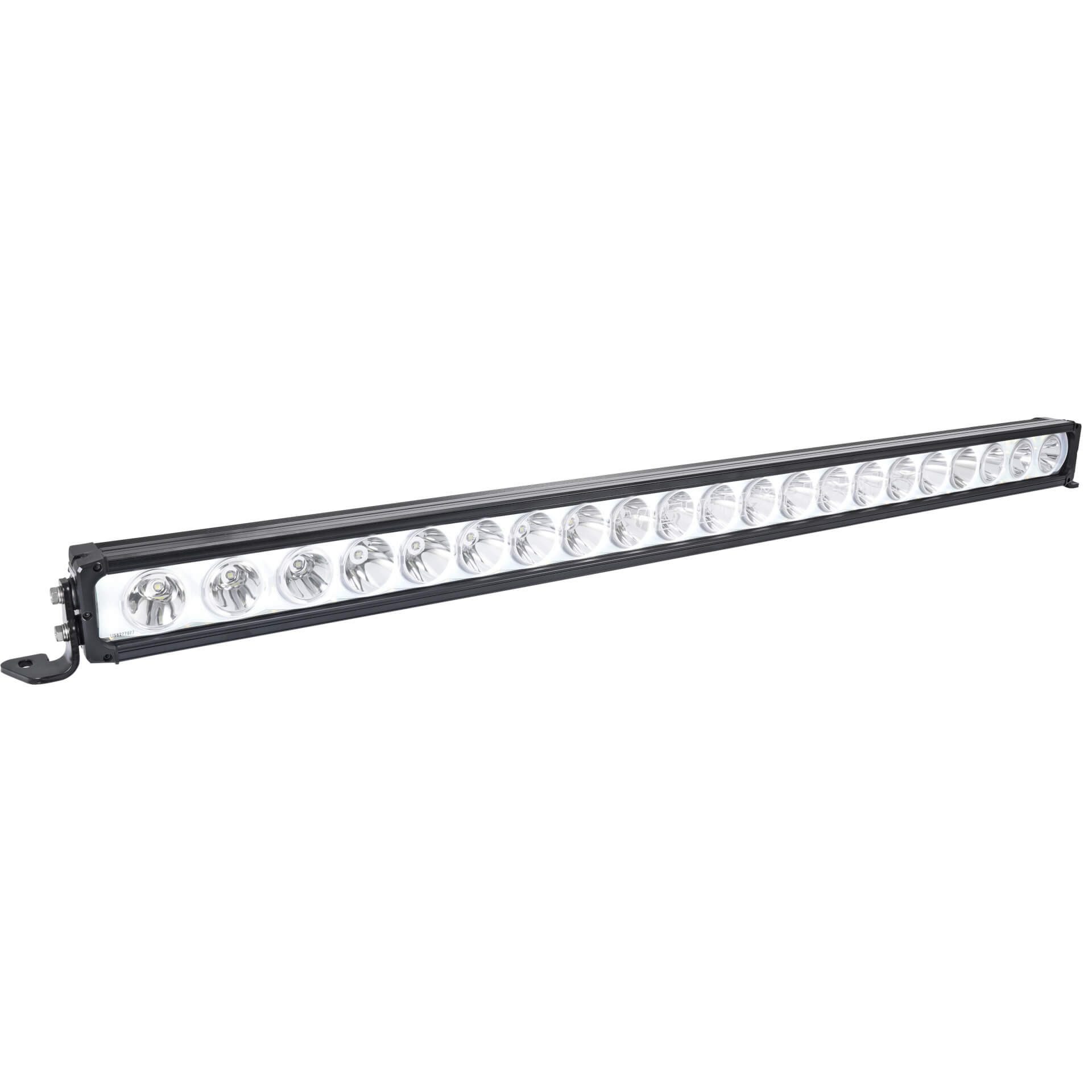

VISION X XPR-H21M HALO 40″ 210W LED LIGHT BAR

Description

XPR-H21M Halo provides a powerful distance with Mixed Beam tilted reflectors to illuminate your peripherals. The 10 Watt LEDs through the large IRIS Reflectors make this bar one of the furthest shining Mixed Beam bars out there. It is easy to connect the Halo feature to the position light as required. Its unique design makes it easily recognisable from afar. XPR-H21M is the perfect choice for anyone seeking a powerful distance with mixed beam and a tough design.

* XPR-H21M delivers an perfectly balanced mix of width and distance (up to 656m @ 1 lux)
* Virtually unbreakable polycarbonate lens
* High IP rating (IP 68 & IP69K)
* Vibration resistant (15,6Grms)
* Low power consumption relative to power
* EMC tested (radio interference)
* 50,000 hour life time on diode
* 5.5 years unique function guarantee

Data:
Lamp housing: Robust aluminum
Voltage: 11-32V
Power consumption: 17.5 A @12V, 8.75 A @24V
IP rating: IP68 & IP69K
Vibration Class: 15.6G
Working temperature: -40°C – + 80°C
Height: 70mm (without bracket)
Depth: 80mm
Width: 1 016 mm
Watt: 210
LED: 21
Raw lumens: 22 659
Effective lumens: 15 860
Lens: Polycarbonate
Beam type: 6,5° + 15°+ 25° + 45° + 70° combined beam pattern with smooth transformation from spot to flood.
Beam length: 656m @1lux
