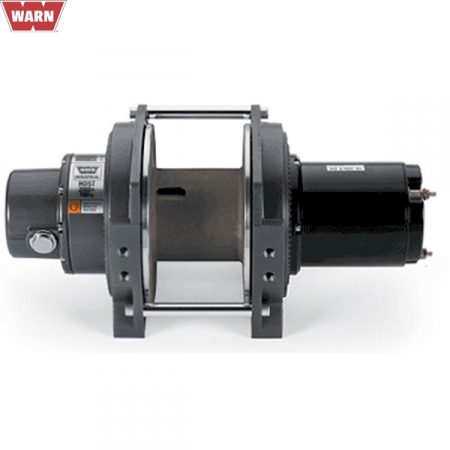

WARN INDUSTRIAL HOIST DC2000-LF-24V LARGE FRAME
€ 2,456.70 EUR excl. vat
The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on WARN’s robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Data:
Rated Capacity: 2000 lbf (907 kgf)
Drum Barrel Diameter: 4.25″ (108mm)
Drum Flange Diameter: 8.25″ (210mm)
Distance Between Flanges: 3.79″ (96mm)
Recommended Maximum Wire Rope Diameter: 1/4″ (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 50 lbs. (22.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35-40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 261
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5
Accessories:
Control Pack-24V: PN 63752
Contactor Only-24V (Standard bracket): PN 34968
Contactor Only-24V (w/ bracket for cover): PN 34974
Contactor Cover (with remote plug): PN 36648
Contactor Cover (no plug): PN 35169
Remote Control Only: PN 88528
2 in stock
Description
The DC2000 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2000 hoist is built on WARN’s robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Data:
Rated Capacity: 2000 lbf (907 kgf)
Drum Barrel Diameter: 4.25″ (108mm)
Drum Flange Diameter: 8.25″ (210mm)
Distance Between Flanges: 3.79″ (96mm)
Recommended Maximum Wire Rope Diameter: 1/4″ (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 50 lbs. (22.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35-40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 261
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC
ASME B30.5
Accessories:
Control Pack-24V: PN 63752
Contactor Only-24V (Standard bracket): PN 34968
Contactor Only-24V (w/ bracket for cover): PN 34974
Contactor Cover (with remote plug): PN 36648
Contactor Cover (no plug): PN 35169
Remote Control Only: PN 88528
Additional information
| Weight | 24.516 kg |
|---|
