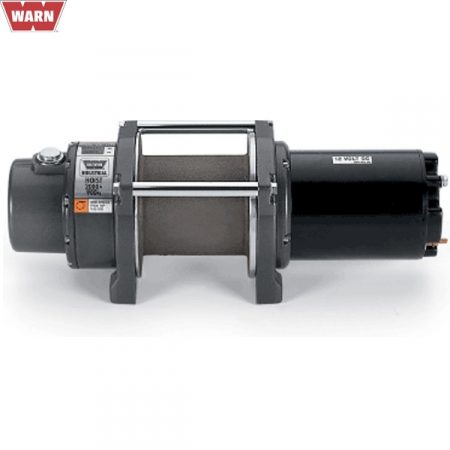

WARN INDUSTRIAL HOIST DC2500 12V

Description

The DC2500 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service.

All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC2500 hoist is built on WARN’s robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.

Data:
Rated Capacity: 2500 lbf (1134 kgf)
Drum Barrel Diameter: 5.3 in (135 mm)
Drum Flange Diameter: 8.9 in (226 mm)
Distance Between Flanges: 4.7 in (119 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9mm)
Recommended Minimum Wire Rope Breaking Strength: 9800 lbf (4445 kgf)
Approximate Shipping Weight: 75 lb (34 kg)
Duty Cycle (intermittent per SAE J706 section 6.2: N/A ft (N/A m)
Mounting Bolt Torque: 35-40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 315:1
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Standards Compliance: CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC ASME B30.5

Accessories:
Control Pack-12V: PN 40709
Contactor Only-12V (Standard bracket): PN 34440
Contactor Only-12V (w/ bracket for cover): PN 34973
Contactor Cover (with remote plug): PN 36648
Contactor Cover (no plug): PN 35169
Remote Control Only: PN 88528
