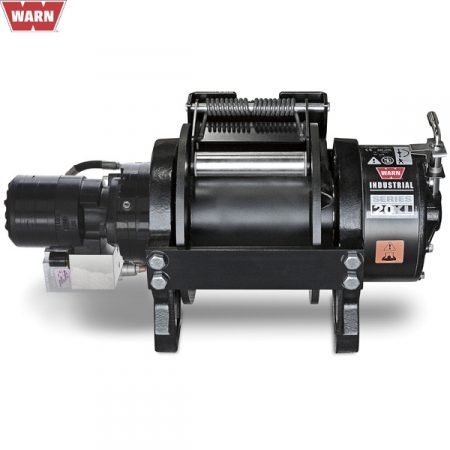

WARN WINCH SERIES 20XL 3000PSI STANDARD DRUM

Description

20XL with the standard drum and air decoupling. Warn 20XL a real “Heavy Duty” winch for heavy industrial use. With a thrust of more than 9 tons of single rope are the uses of large t. Ex. heavy wreckers, and various industrial applications.

• 8.0 cubic-inch high-performance motor with 20,000 lbf. capacity
• Spring-applied disc brake designed to hold the full-rated load
• Hardened aircraft-grade nickel chromoly two-stage planetary geartrain for speed and reliability
• Available in air and manual clutch options
• Available in standard and long-drum versions
• Meets SAE J706 and CE specifications

Data:
Rated Pulling Force: 20,000 lbf (9,072 kgf)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength: 33600 lbf (15241 kgf)
Approximate Shipping Weight for 74750 & 77550: 297 lb (135 kg)
Approximate Shipping Weight for 77560 & 77570: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance: SAE J706 CE Machinery Directive 98/37/EC and 2006/42/EC

Accessories:
Fairlead SRS-XL-STD: PN 77532
Wire Rope Assembly 9/16”x140′ EIPS: PN 77451
Snatch Block XL-60K LB: PN 80858
