WARN VINSCH HOIST DC1000 12V SHORT DRUM

 1,045.00 EUR excl. vat

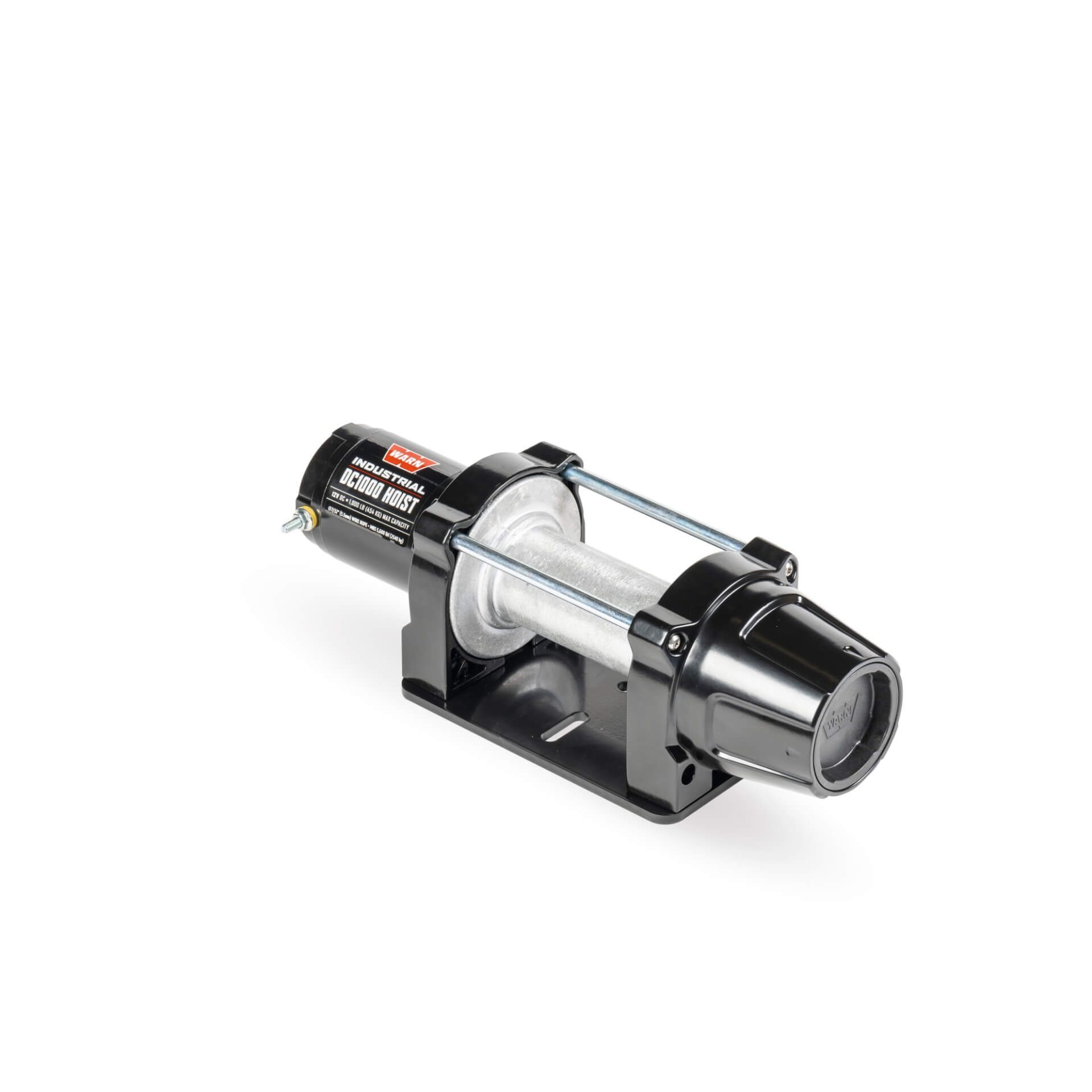

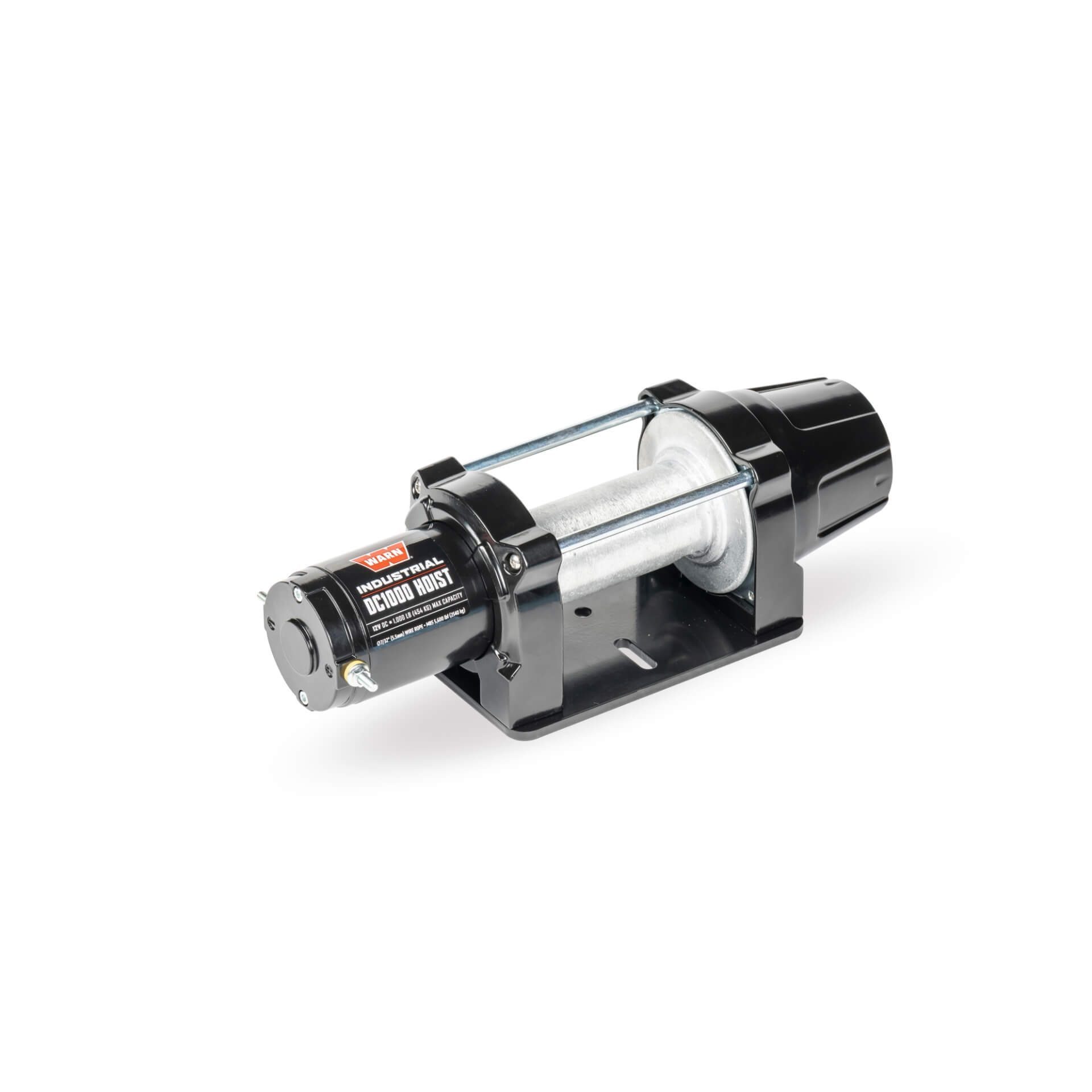

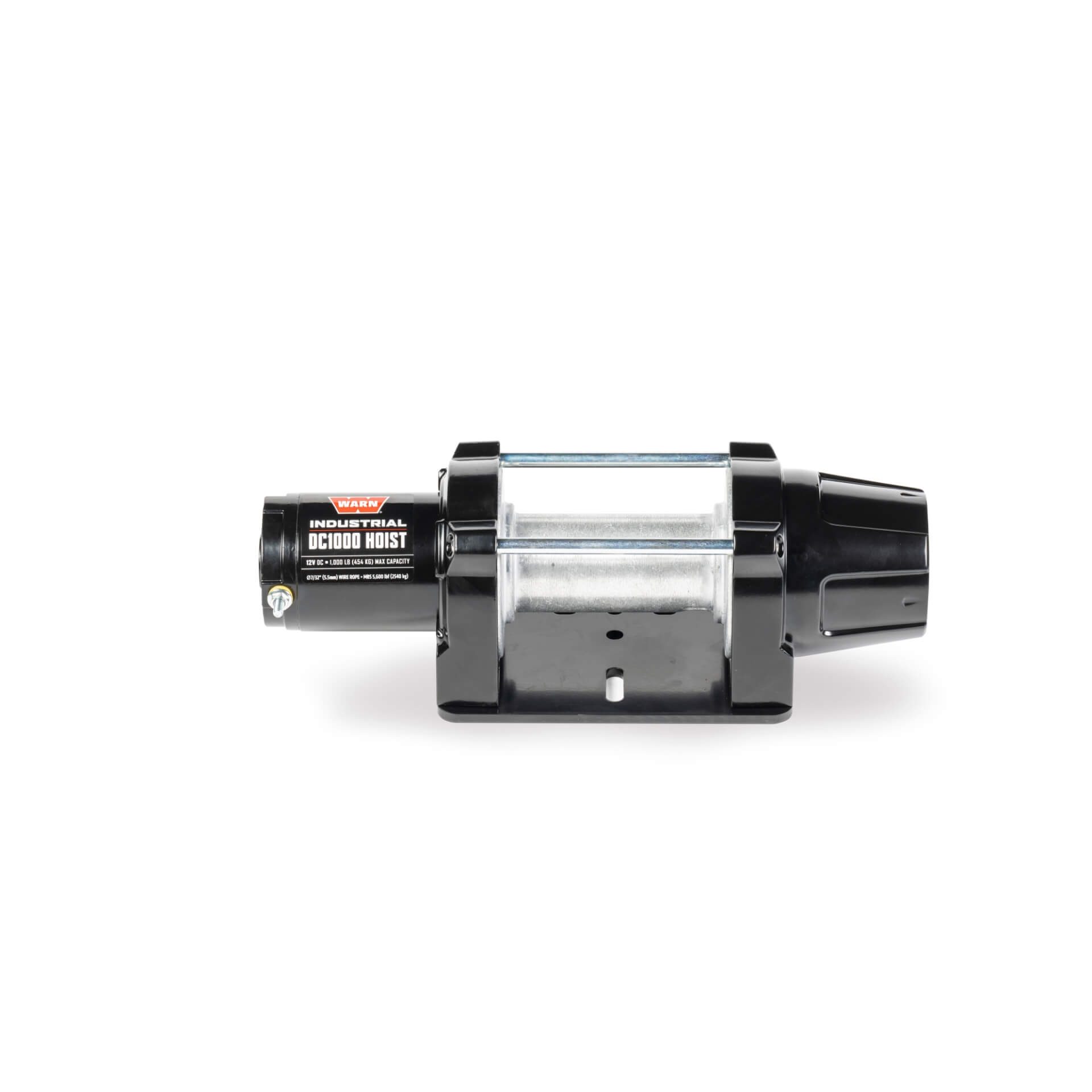

The WARN DC1000 12V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 454 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC1000 12V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 454 kg (1000 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Width, drum: 75 mm
  • Recommended line: 5.6 mm diameter
  • Weight: 10 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 12V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included

Out of stock, but can be backordered. We will notify you of delivery time once order has been made.

Description

The WARN DC1000 12V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 454 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC1000 12V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 454 kg (1000 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Width, drum: 75 mm
  • Recommended line: 5.6 mm diameter
  • Weight: 10 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 12V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included
