WARN WINCH 16,5TI THERMOMETRIC 12V
€ 3,922.50 EUR excl. vat

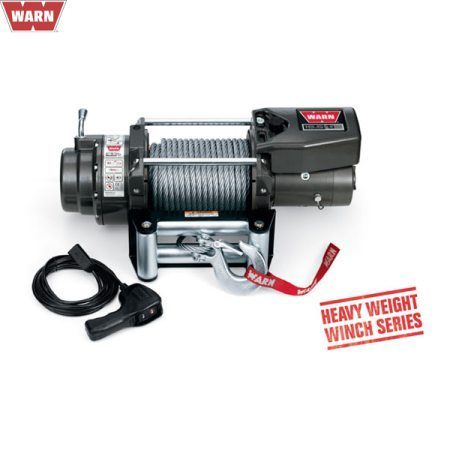

The 16.5ti features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary geartrain delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.
This winch has steel rope.
Data:
Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 ft (1.83m)
Finish: High-gloss powder coat over primer undercoating

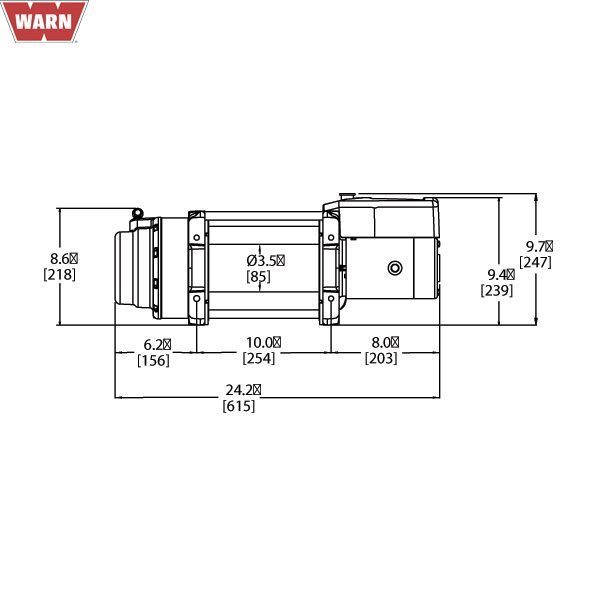

Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
Weight: 138 lbs. (63 kgs.)
Out of stock, but can be backordered. We will notify you of delivery time once order has been made.
Description
The 16.5ti features the full diagnostic ability of WARN thermometric technology, plus the extreme sealing, durability, and reliability that the WARN ti-series of winches are known for. Series-wound motor combined with a 3-stage planetary geartrain delivers 16,500 lbs. of pulling power. Thermometric indicator LED provides operator feedback on motor temperature.
This winch has steel rope.
Data:
Rated Line Pull: 16,500 lbs. (7484 kgs) single-line
Motor: 12V 4.6 hp, Gen II, Series Wound
Electrical Control: Solenoid Control Pack
Remote control: Remote switch, with LED indicator 12 ft (3.7m) lead
Geartrain: 3-stage planetary
Gear ratio: 315:1
Clutch (freespooling): Rotating ring gear
Brake: Automatic direct drive cone
Wire rope: 90 ft, 7/16 in diameter (27m, 11mm diam.)
Fairlead: Roller
Recommended battery: 650 CCA minimum for winching
Battery leads: 2 gauge, 72 ft (1.83m)
Finish: High-gloss powder coat over primer undercoating
Drum diameter/length: 3.5 in /8.2 in (9cm/21cm)
Weight: 138 lbs. (63 kgs.)
Additional information
| Weight | 61.9164 kg |
|---|
