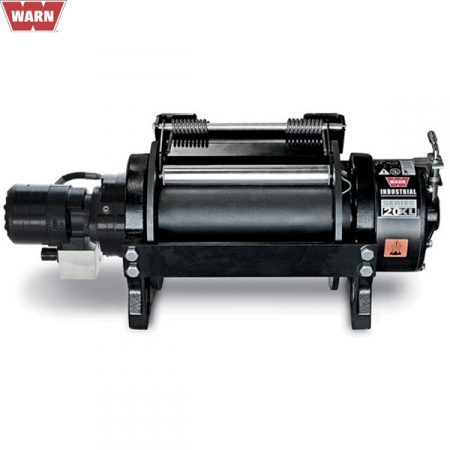

WARN WINCH 20XL LONG DRUM AIR CLUTCH

Description

20XL long drum with air clutch. Warn 20XL is a real “Heavy Duty” winch for heavy industry use.

With a pulling force of more than 9 tons with a single wire the applications are many, for example heavy tow trucks and various industrial applications.

Data:
Rated Pulling Force: 20,000 lbf (9,072 kgf)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength: 33600 lbf (15241 kgf)
Approximate Shipping Weight for 74750 & 77550: 297 lb (135 kg)
Approximate Shipping Weight for 77560 & 77570: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A

Accessories:
Fairlead SRS-XL-LONG: PN 77869
Wire Rope Assembly 9/16”x245′ EIPS: PN 77452
Snatch Block XL-60K LB: PN 80858
