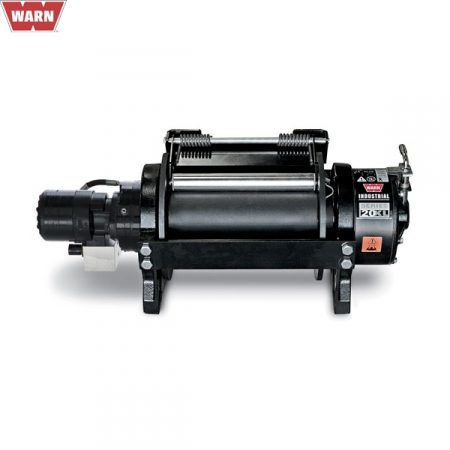

WARN WINCH 20XL-LP LONG DRUM MANUAL CLUTCH

 8,182.40 EUR excl. vat

This winch has a 20,000 lb. pulling capacity and is designed for use on trailers, rollback trailers, and heavy-duty applications. LP stands for “Low Pressure” and means this winch uses a larger displacement motor to pull full rated load at only 2200 psi. This makes the Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.

  • 11.9 cubic-inch high-performance motor with 20,000 lb. capacity – great for wreckers, trailers, or severe duty applications
  • Spring-applied disc brake designed to hold the full-rated load
  • Hardened aircraft-grade nickel chromoly two stage planetary geartrain for speed and reliability
  • Standard air clutch with manual clutch option
  • Available in short- and long-drum versions
  • Meets SAE J706 and CE specifications

Data:
Rated Pulling Force: 20,000 lbs. (9,072 kg.)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14.0 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength (PN 79220): 41,200 lb. (18,688 kg.)
Approximate Shipping Weight for 79210 & 79220: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

Accessories:
Fairlead SRS-XL-LONG: PN 77869
Wire Rope Assembly 9/16”x245′ EIPS: PN 77452
Snatch Block XL-60K LB: PN 80858

Out of stock

Description

This winch has a 20,000 lb. pulling capacity and is designed for use on trailers, rollback trailers, and heavy-duty applications. LP stands for “Low Pressure” and means this winch uses a larger displacement motor to pull full rated load at only 2200 psi. This makes the Series 20XL-LP winch ideal for hydraulic systems that operate below 3000 psi.

  • 11.9 cubic-inch high-performance motor with 20,000 lb. capacity – great for wreckers, trailers, or severe duty applications
  • Spring-applied disc brake designed to hold the full-rated load
  • Hardened aircraft-grade nickel chromoly two stage planetary geartrain for speed and reliability
  • Standard air clutch with manual clutch option
  • Available in short- and long-drum versions
  • Meets SAE J706 and CE specifications

Data:
Rated Pulling Force: 20,000 lbs. (9,072 kg.)
Drum Barrel Diameter: 5.75 in (146 mm)
Drum Flange Diameter: 12.25 in (311 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14.0 in (356 mm)
Recommended Maximum Wire Rope Diameter: 9/16 in (14.3 mm)
Recommended Minimum Wire Rope Breaking Strength (PN 79220): 41,200 lb. (18,688 kg.)
Approximate Shipping Weight for 79210 & 79220: 322 lb (146 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 2760 ft (841.2 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 28.5:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance:
SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

Accessories:
Fairlead SRS-XL-LONG: PN 77869
Wire Rope Assembly 9/16”x245′ EIPS: PN 77452
Snatch Block XL-60K LB: PN 80858

Print Friendly, PDF & Email

Additional information

Weight 113.4 kg
