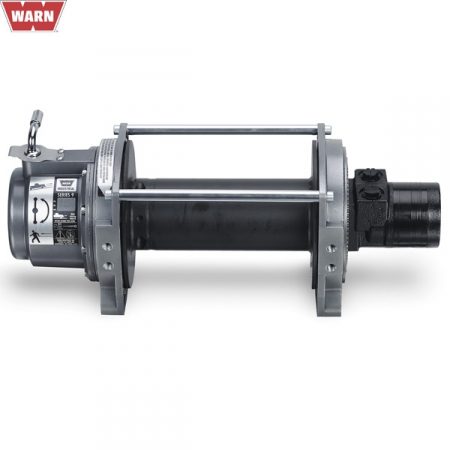

WARN WINCH SERIES 9 HYDRAULIC 4.8CU 10″ DRUM

Description

• Perfect for tow, utility and trailer applications
• Hardened steel, two-stage planetary geartrain provides faster line speeds
• Heavy-duty automatic disc brake provides dependable operation
• Available in two motor sizes: 4.9 cu. in. and 3.0 cu. in.
• Meets SAE J706 and CE standards
• Wire rope, roller fairlead, and tensioner sold separately

Data:
Rated Pulling Force: 9000 lbf (4082 kgf)
Rated Pulling Force for PN 30279: 7500 lbf (3402 kgf)

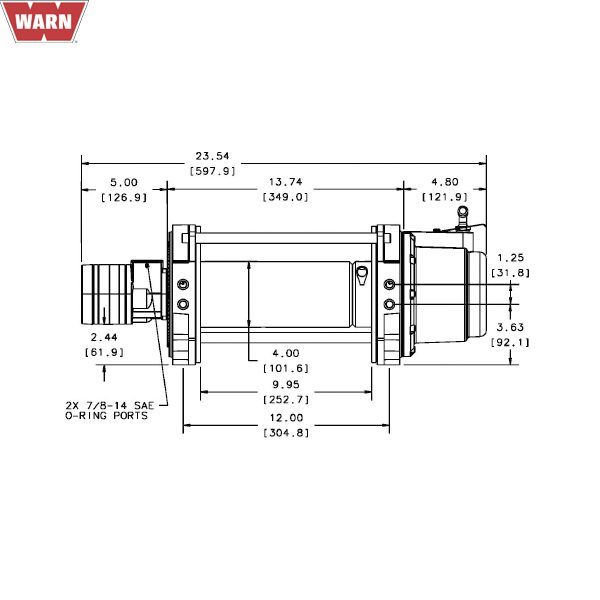

Drum Barrel Diameter: 4.00 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 15,100 lbf (6849 kgf)
Approximate Shipping Weight for PN 30279 & 30281: 80.00 lb (36.3 kg)
Approximate Shipping Weight for PN 30282: 98.0 lb (44.5 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 1034 ft (315 m)
Duty Cycle (intermittent per SAE J706 section 6.2) for PN 30279: 305 ft (93 m)
Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m)
Maximum Layers of Wire Rope: 4 (with 3/8″ dia. rope)
Gear Reduction: 27:1
Brake Type: Disk
Contactor / Remote Type: N/A
