WARNINDUSTRIAL HOIST DC1600 12V
€ 2,341.20 EUR excl. vat

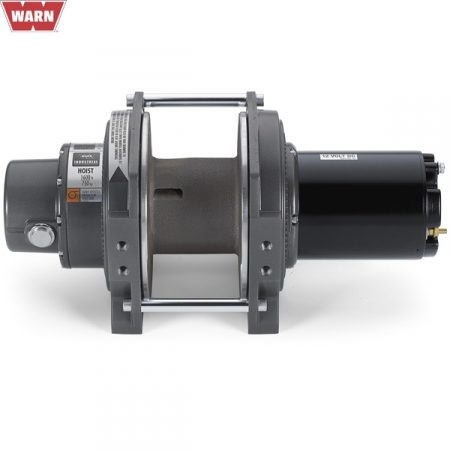

The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on WARN’s robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Approved for suspended load.
Data:
Rated Capacity: 1600 lbf (726 kgf)
Drum Barrel Diameter: 4.25 in (108 mm)
Drum Flange Diameter: 8.25 in (210mm)
Distance Between Flanges: 3.79 in (96mm)
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 50 lbs. (22.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35-40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 261
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Out of stock
Description
The DC1600 hoist combines a powerful permanent magnet DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load. The durable powder coated finish stands up to the elements and looks great. The DC1600 hoist is built on WARN’s robust large frame design with a cast aluminum drum to provide plenty of wire rope capacity. Controls and accessories available separately.
Approved for suspended load.
Data:
Rated Capacity: 1600 lbf (726 kgf)
Drum Barrel Diameter: 4.25 in (108 mm)
Drum Flange Diameter: 8.25 in (210mm)
Distance Between Flanges: 3.79 in (96mm)
Recommended Maximum Wire Rope Diameter: 1/4 in (6.4 mm)
Recommended Wire Rope Breaking Strength: 7000 lbf (3175 kgf)
Approximate Shipping Weight: 50 lbs. (22.7 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35-40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 261
Brake Type: Automatic Cone
Contactor/Remote Type: Not Included
Additional information
| Weight | 22.473 kg |
|---|
