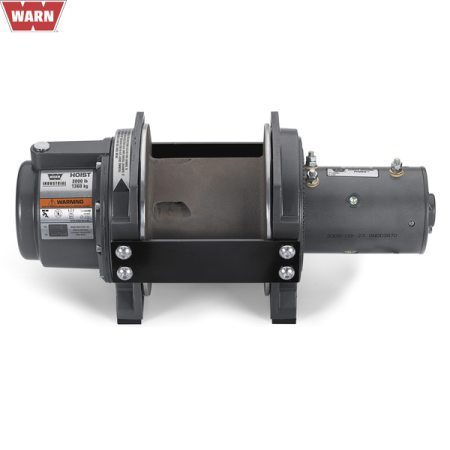

WARN INDUSTRIAL HOIST DC3000 12V
€ 3,916.10 EUR excl. vat
The DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
Approved for suspended load.
Data:
Rated Capacity: 3000 lbf (1361 kgf)
Drum Barrel Diameter: 5.31 in (135 mm)
Drum Flange Diameter: 8.9 in (226 mm)
Distance Between Flanges: 5.94 in (151 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)
Approximate Shipping Weight: 83.0 lbs (37.6 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 199
Brake Type: Automatic Disc
Contactor/Remote Type: Not Included
Out of stock
Description
The DC3000 hoist combines a powerful series wound DC motor with robust sealing and our proven 3-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
Approved for suspended load.
Data:
Rated Capacity: 3000 lbf (1361 kgf)
Drum Barrel Diameter: 5.31 in (135 mm)
Drum Flange Diameter: 8.9 in (226 mm)
Distance Between Flanges: 5.94 in (151 mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781 kgf)
Approximate Shipping Weight: 83.0 lbs (37.6 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 199
Brake Type: Automatic Disc
Contactor/Remote Type: Not Included
