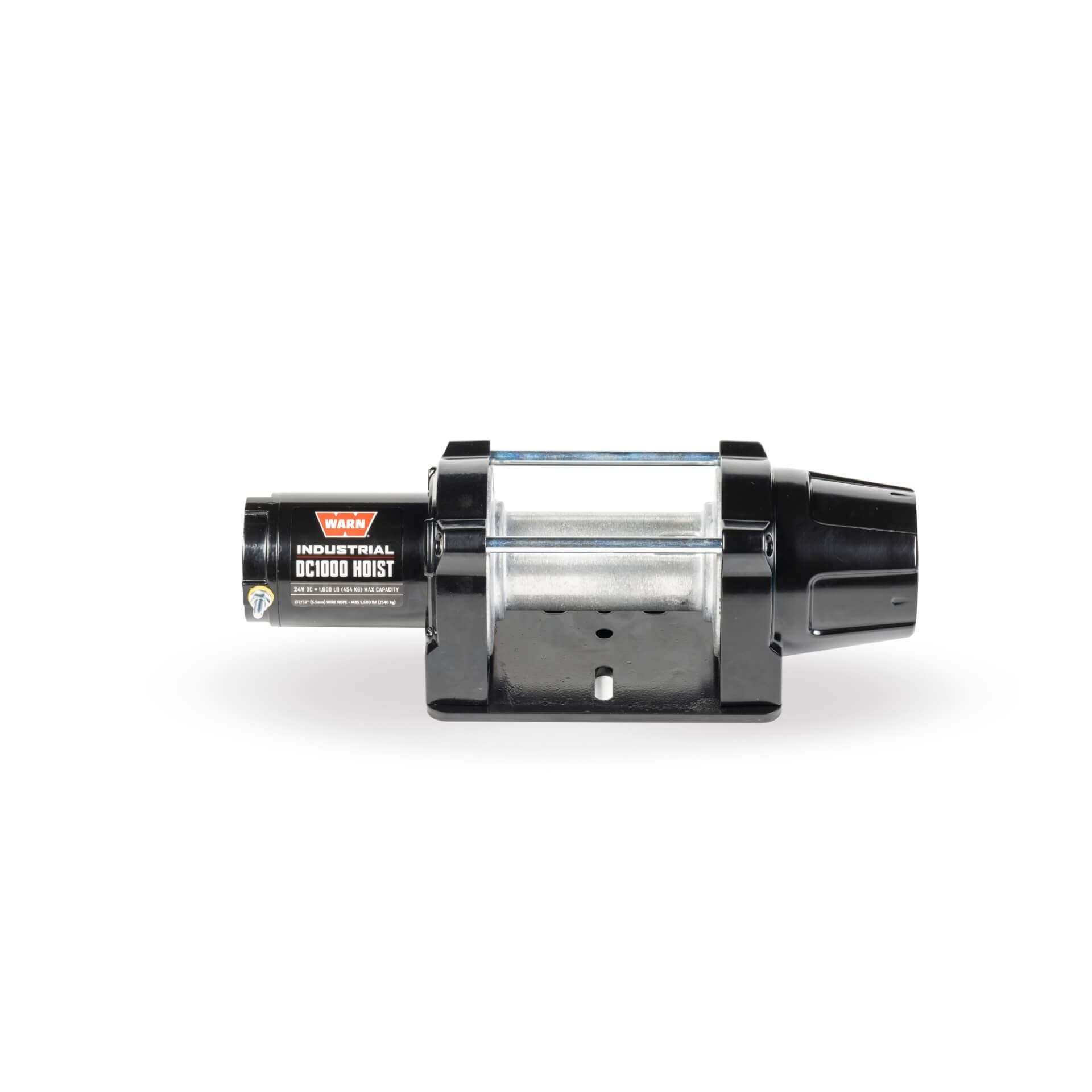

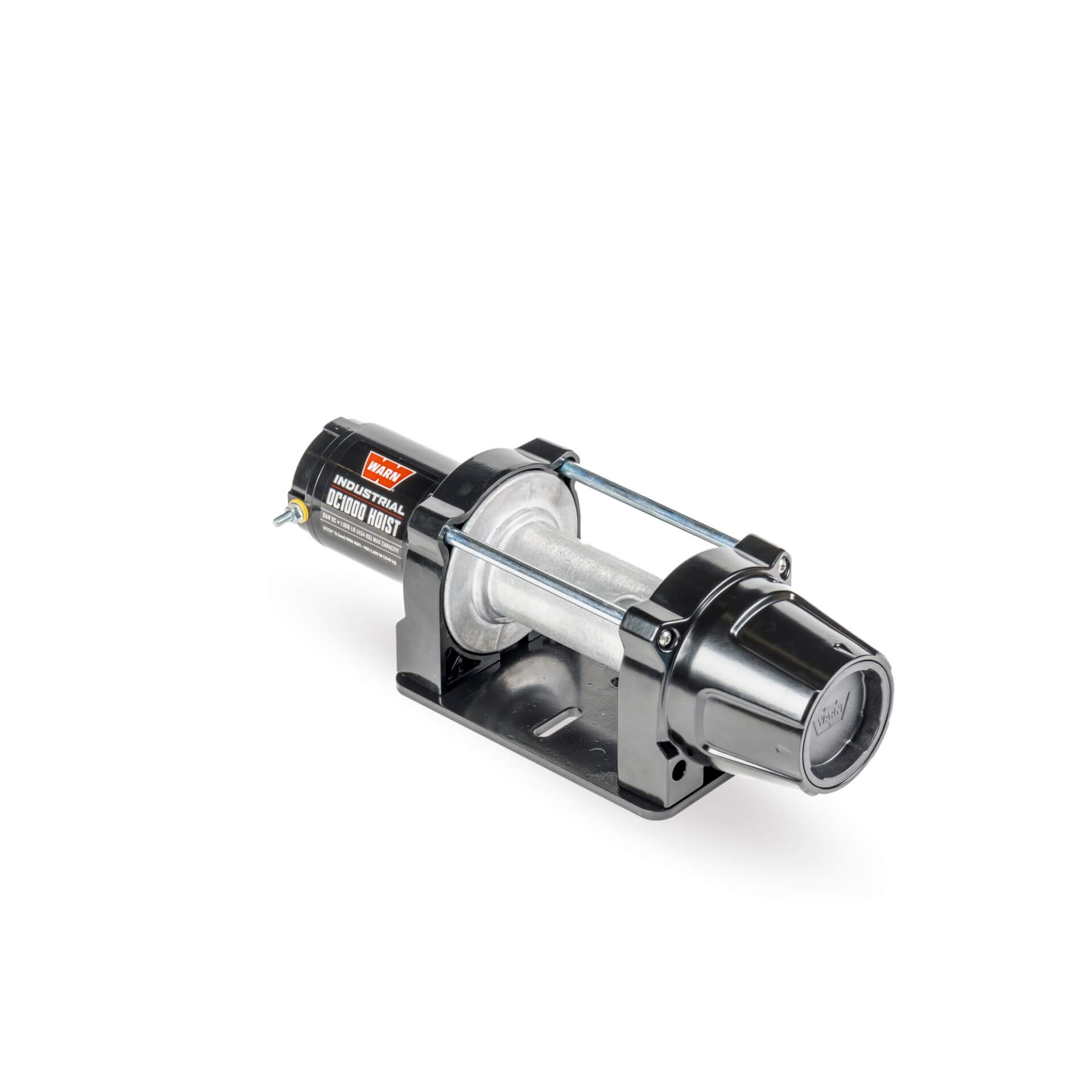

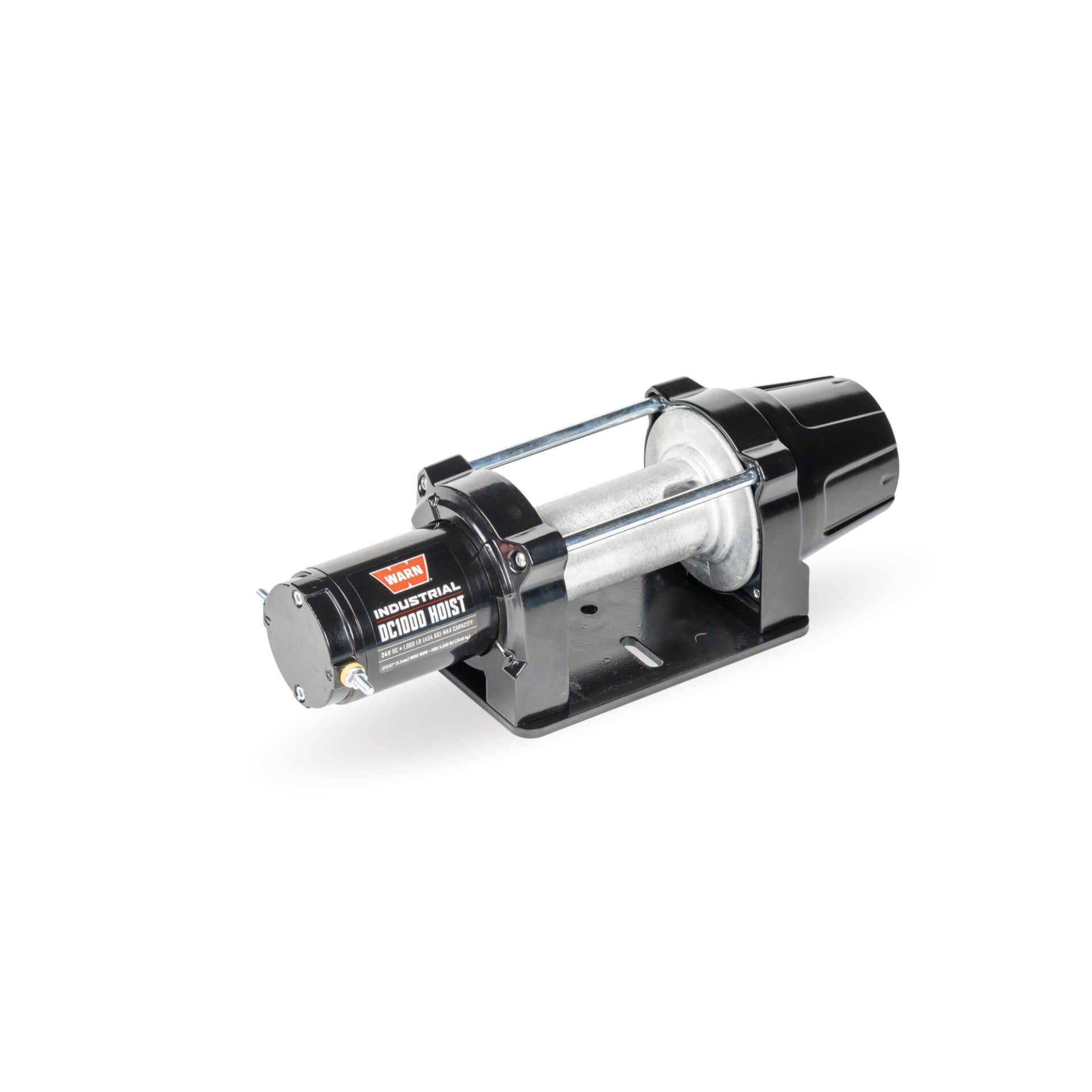

WARN WINCH HOIST DC1000 24V

 1,045.00 EUR excl. vat

The WARN DC1000 24V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 454 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC1000 24V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 454 kg (1000 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Width, drum: 119 mm
  • Recommended line: 5.6 mm diameter
  • Weight: 10.7 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 24V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included

1 in stock (can be backordered)

Description

The WARN DC1000 24V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 454 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC1000 24V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 454 kg (1000 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Width, drum: 119 mm
  • Recommended line: 5.6 mm diameter
  • Weight: 10.7 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 24V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included

Print Friendly, PDF & Email

Additional information

Weight 7.264 kg
