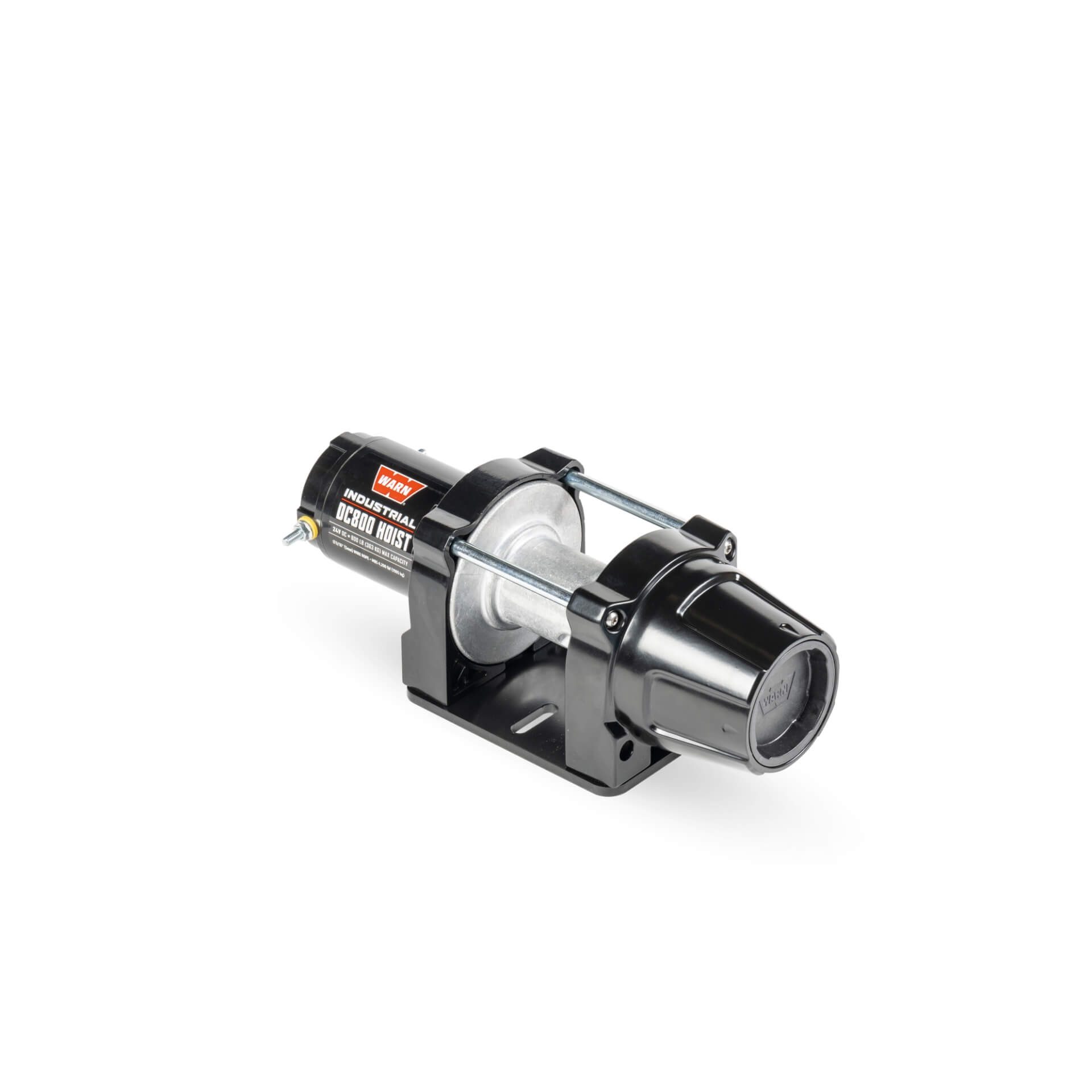

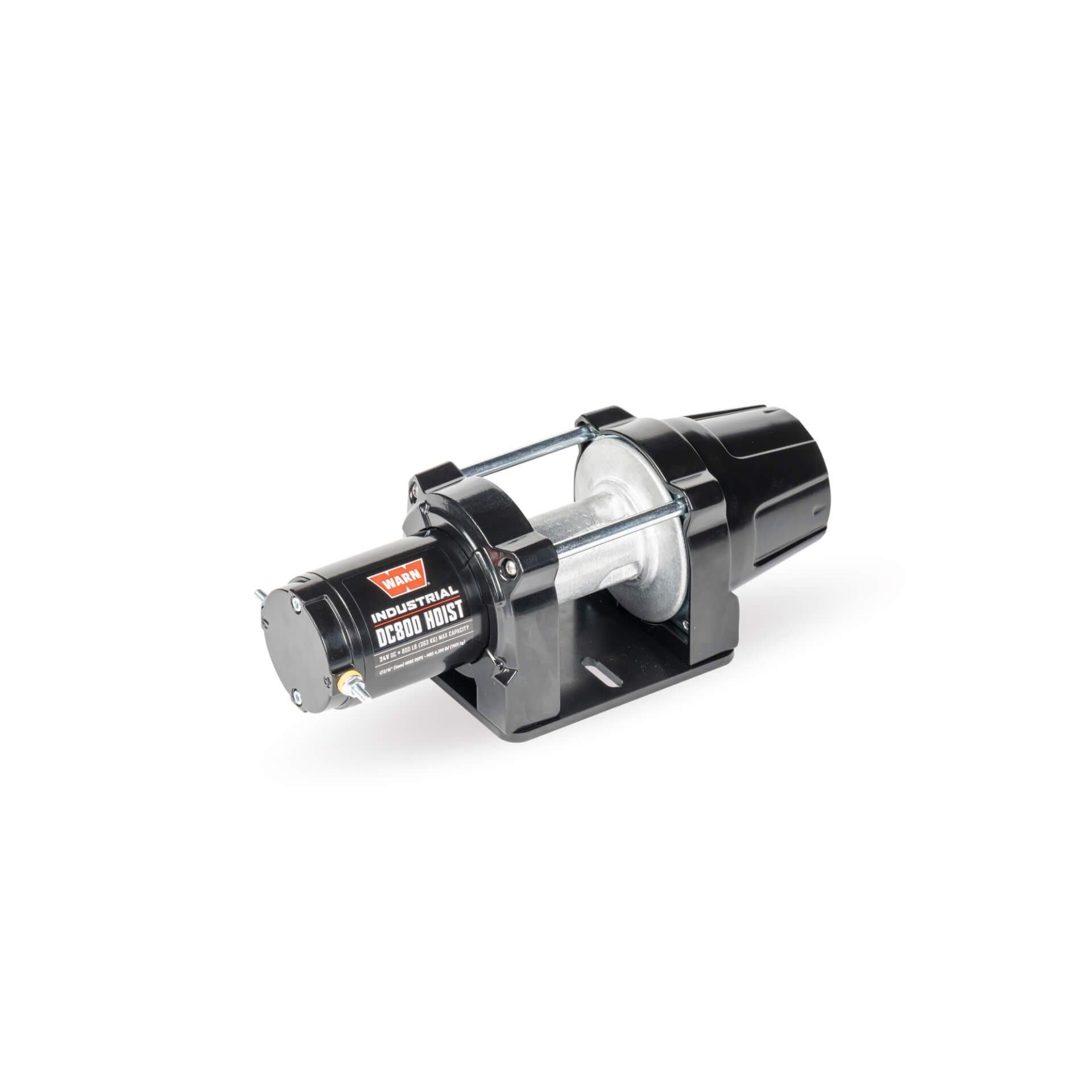

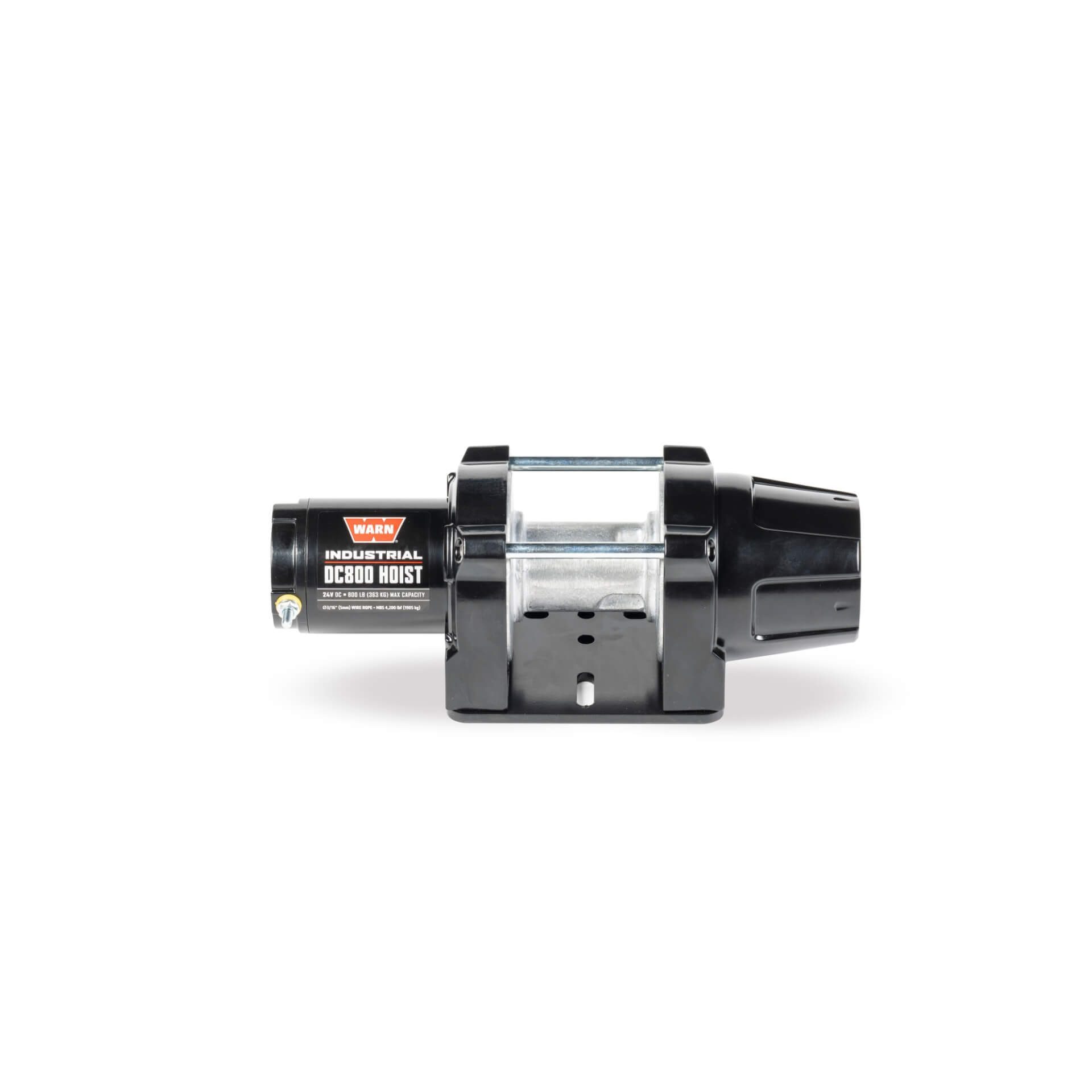

WARN WINCH HOIST DC800 24V

 894.00 EUR excl. vat

The WARN DC800 24V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 363 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC800 24V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 363 kg (800 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Recommended line: 4.8 mm diameter
  • Weight: 7.3 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 24V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included

17 in stock (can be backordered)

Description

The WARN DC800 24V hoist winch for hanging loads is a compact but powerful industrial winch for lifting up to 363 kg. Thanks to its size, it works for a variety of applications, from work truck cranes and derricks to lifting heavy spare tires on expeditionary vehicles and even military vehicles.

With WARN’s reliability, automatic braking and an included mounting plate and hardware, the WARN DC800 24V is a perfect way to give tough and heavy jobs a lift.

Properties:

  • Capacity: 363 kg (800 lb)
  • Drum diameter: 51 mm (cylinder diameter)
  • Recommended line: 4.8 mm diameter
  • Weight: 7.3 kg
  • Downshift: 154:1
  • Powerful permanent magnet DC motor; 24V
  • Reliable 3-stage all-metal planetary gearbox
  • Automatic mechanical brake that holds for full load
  • Permanent grease lubrication
  • Complete IP68/IP69K waterproof seal keeps all elements out
  • Compact frame comes with standard steel mounting plate and hardware for quick and easy installation
  • Semi-gloss black powder coated finish and stainless steel fasteners for UV and corrosion resistance
  • Contactor and remote control not included

Print Friendly, PDF & Email

Additional information

Weight 8.172 kg
