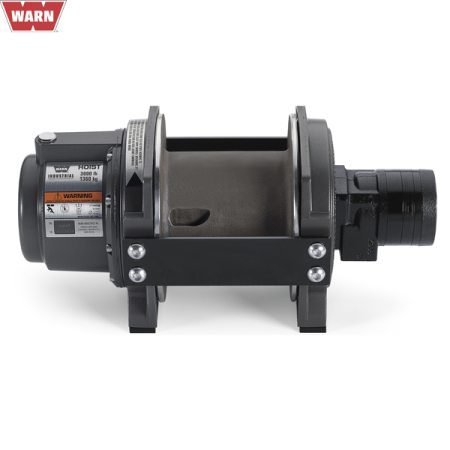

WARN INDUSTRIAL HOIST HY3000
€ 3,309.40 EUR excl. vat
The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
Approved for suspended load.
Data:
Rated Capacity: 3000 lbf (1361kgf)
Drum Barrel Diameter: 5.31 in (135 mm)
Drum Flange Diameter: 8.9 in (226mm)
Distance Between Flanges: 5.94 in (151mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781kgf)
Approximate Shipping Weight: 70 lb (31.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35 – 40 ft* lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 21:1
Brake Type: Automatic Disc
2 in stock
Description
The HY3000 hoist combines a powerful and efficient hydraulic motor with robust sealing and our proven 2-stage all metal geartrain. Permanent grease lubrication means years of trouble free service. All WARN hoists incorporate an automatic mechanical brake that holds full rated load.
Approved for suspended load.
Data:
Rated Capacity: 3000 lbf (1361kgf)
Drum Barrel Diameter: 5.31 in (135 mm)
Drum Flange Diameter: 8.9 in (226mm)
Distance Between Flanges: 5.94 in (151mm)
Recommended Maximum Wire Rope Diameter: 5/16 in (7.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 10540 lbf (4781kgf)
Approximate Shipping Weight: 70 lb (31.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): N/A ft (N/A m)
Mounting Bolt Torque: 35 – 40 ft* lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4
Gear Reduction: 21:1
Brake Type: Automatic Disc
Additional information
| Weight | 31.326 kg |
|---|
