WARN WINCH M8000-S

Description

Compact, tough and with synthetic rope. Its low-profile design makes it perfect for most trucks, Jeeps and SUVs.

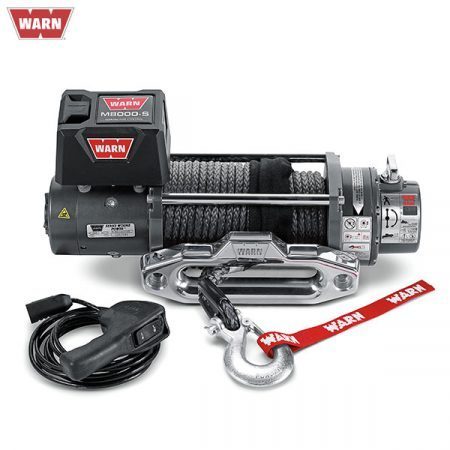

• Comes with 80 ft. of 3/8″ (24.38m of 9.5mm) WARN Spydura synthetic rope, hook, remote control on 12′ (3.7m) lead and polished aluminum hawse fairlead
• Premium Series winch that delivers classic design, proven performance, and legendary WARN reliability
• Series-wound, high-speed motor provides fast line speed and strong pulls
• Low-profile design and separate control box allows for a wide range of mounting options
• New, next-generation electrical control box and hand-held remote control
• Durable 3-stage planetary gear train for smooth, reliable, operation
• Exclusive brake design provides superior control while winching
• Chip-resistant powder-coated finish

The corded WARN remote is constructed of durable EPDM rubber, and features enhanced switch sealing.

This winch has synthetic rope.

Data:
Rated line pull: 8,000 lbs., (3630 kgs.) Single-line
Motor: Series Wound, 12V 4.8 hp, 24V 2.1 hp,
Electrical Controls: Contactor
Remote Control: Remote switch, 12 ‘(3.7m) lead
Gear train: 3-Stage Planetary
Gear ratio: 216:1
Clutch (free spooling): Sliding ring gear
Brake: Automatic mechanical cone
Drum Diameter / Length: 2.5 “/ 9.0” (6.4cm/23cm)
Weight: 74 lbs. (34 kgs)
Rope: Steel – 100 ‘, 5/16 “dia. (30m, 8mm dia.)
Fair Lead: Roles
Recommended Battery: 650 CCA minimum for winching
Battery Leads: 2 gauge, 72 “(1.83m)
Finish: Argent Gray Powder Coat
