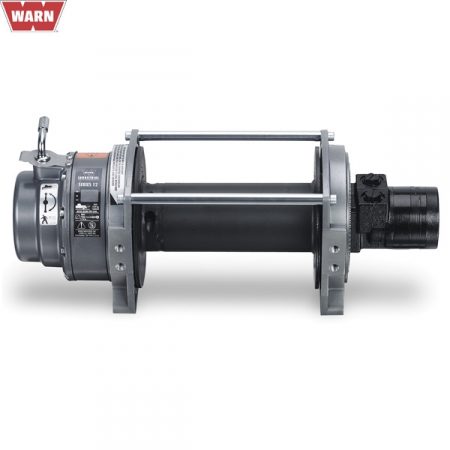

WARN WINCH SERIES 12 HY 10″ DRUM (CLOCKWISE)
€ 3,159.60 EUR excl. vat
- Pulling capacity up to 12,000 lbf.
- Hardened steel, two-stage planetary geartrain provides faster line speeds
- Heavy-duty automatic disc brake provides dependable operation
- Meets SAE J706 and CE standards
- Wire rope, roller fairlead, and tensioner sold separately
+
NOTE! This drum rotates clockwise.
Data:
Rated Pulling Force: 1200 lbf (5443 kgf)
Drum Barrel Diameter: 4.00 in (102 mm)
Drum Flange Diameter: 8.24 in ( 209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 20400 lbf (9253 kgf)
Approximate Shipping Weight for PN 30286: 86.0 lb (39.0 kg)
Approximate Shipping Weight for PN 30285: 85.5 lb (38.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 350 ft (107 m)
Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m)
Maximum Layers of Wire Rope: 4 (with 7/16″ dia rope)
Gear Reduction: 36:1
Brake Type: Disk
Contactor / Remote Type: N/A
Out of stock
Description
- Pulling capacity up to 12,000 lbf.
- Hardened steel, two-stage planetary geartrain provides faster line speeds
- Heavy-duty automatic disc brake provides dependable operation
- Meets SAE J706 and CE standards
- Wire rope, roller fairlead, and tensioner sold separately
+
NOTE! This drum rotates clockwise.
Data:
Rated Pulling Force: 1200 lbf (5443 kgf)
Drum Barrel Diameter: 4.00 in (102 mm)
Drum Flange Diameter: 8.24 in ( 209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 20400 lbf (9253 kgf)
Approximate Shipping Weight for PN 30286: 86.0 lb (39.0 kg)
Approximate Shipping Weight for PN 30285: 85.5 lb (38.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 350 ft (107 m)
Mounting Bolt Torque: 35-40 ft*lbf (47-54 N*m)
Maximum Layers of Wire Rope: 4 (with 7/16″ dia rope)
Gear Reduction: 36:1
Brake Type: Disk
Contactor / Remote Type: N/A
Additional information
Weight | 39.044 kg |
---|
