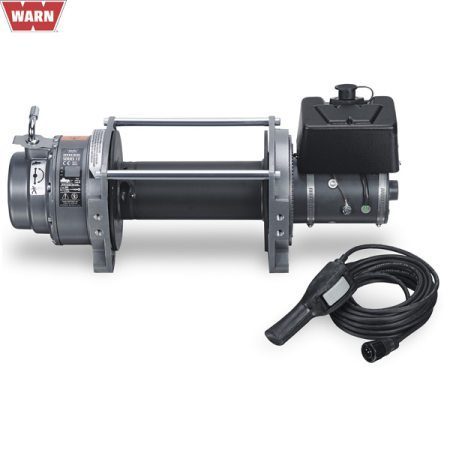

WARN WINCH SERIES 12DC 12V 10″ DRUM
€ 3,634.70 EUR excl. vat
Series 12DC has a waterproof contactor and an industrial-grade remote control. The disc brake is heavily dimensioned to cope with long work cycles. The industrial winches jump up another step in performance and are luxurious in every detail to last for many years of hard work, they are also designed and built to meet the SAE J706 classification and CE standards.
Data:
Traction: 12000 lbs (5440kg)
Recommended line: 12,091 kg min. break load.
Drum Diameter: 4.0″ (102mm)
Drum length: 253mm
Control: Industrial rated contactor with remote control with 32′ (10m) cable. Weight: 103 lbs (47 kg)
Motor: 12/24 volt DC 2.5 hp (1.87KW)
Ratio: 315:1 Standard Certificates: SAE J706, NFPA 1901-73 and CE Machinery Directive 98/37/EEC
(The winch is delivered without rope and hook)
1 in stock (can be backordered)
Description
Series 12DC has a waterproof contactor and an industrial-grade remote control. The disc brake is heavily dimensioned to cope with long work cycles. The industrial winches jump up another step in performance and are luxurious in every detail to last for many years of hard work, they are also designed and built to meet the SAE J706 classification and CE standards.
Data:
Traction: 12000 lbs (5440kg)
Recommended line: 12,091 kg min. break load.
Drum Diameter: 4.0″ (102mm)
Drum length: 253mm
Control: Industrial rated contactor with remote control with 32′ (10m) cable. Weight: 103 lbs (47 kg)
Motor: 12/24 volt DC 2.5 hp (1.87KW)
Ratio: 315:1 Standard Certificates: SAE J706, NFPA 1901-73 and CE Machinery Directive 98/37/EEC
(The winch is delivered without rope and hook)
Additional information
| Weight | 47 kg |
|---|
