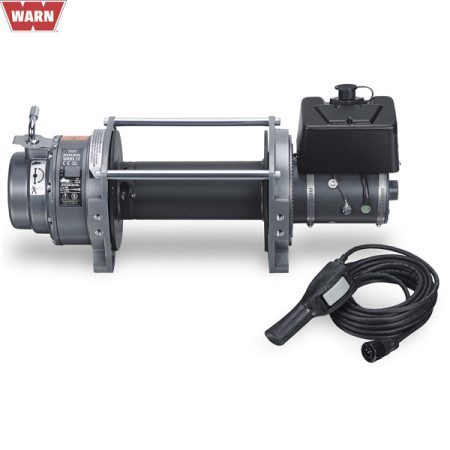

WARN WINCH SERIES 12DC 24V 10″ DRUM

Description

• Dependable high-torque series-wound electric motor, available in 12 or 24V configurations
• SAE J706-compliant disc brake designed for extended powerout use
• Rugged 32′ (10 m) industrial remote control
• Weatherproof industrial contactor control pack
• Thermal protection device protects motor from overheating
• Wire rope, roller fairlead, and tensioner sold separately

Data:
Rated Pulling Force: 12000 lbs (5443 kgs)

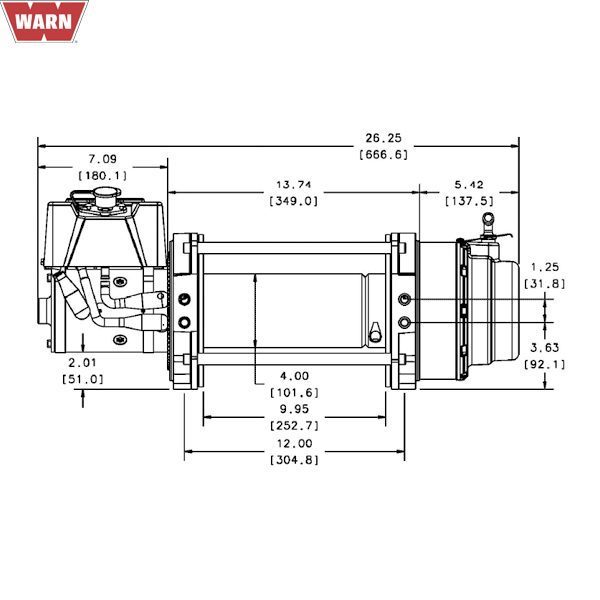

Drum Barrel Diameter: 4.0 in (102mm)
Drum Flange Diameter: 8.24 in (209mm)
Distance Between Flanges: 9.95 in (253mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7mm)
Recommended Minimum Wire Rope Breaking Strength: 20400 lbf (9253 kgf)
Approximate Shipping Weight – 30289: 100.0 lb (45.4 kg)
Approximate Shipping Weight – 30290: 101.0 lb (45.8 kg)
Duty Cycle (intermittent per SAE J706 section 6.2) – 30289: 55 ft (16.8 m)
Duty Cycle (intermittent per SAE J706 section 6.2) – 30290: 60 ft (18.3 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 4 (with 7/16″ rope)
Gear Reduction – 30289: 315:1
Gear Reduction – 30290: 261:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33′ (10m) heavy duty remote
