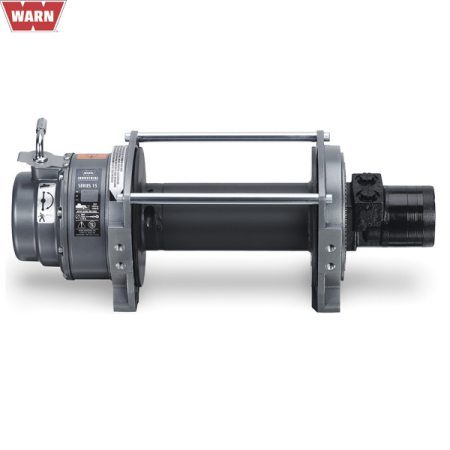

WARN WINCH SERIES 15 HYDRAULIC

Description

Data:
Pulling Capacity of up to 15,000 lbf. (single line)
For tow, utility and trailer applications
6.0 cubic-inch motor provides pulling capacity up to 15,000 lbf.
Hardened steel two-stage planetary geartrain with 36:1 reduction provides fast line speed
Heavy-duty disc brake for dependable operation and plenty of holding power
Meets SAE J706 and CE standards
Wire rope, roller fairlead, and tensioner sold separately
Rated Pulling Force: 15000 lbf (6804 kgf)
Drum Barrel Diameter: 4.00 in (102 mm)
Drum Flange Diameter: 8.24 in (209 mm)
Distance Between Flanges: 9.95 in (253 mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight: 83.0 lb (37.6 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 932 ft (284 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope)
Gear Reduction: 36:1
Brake Type: Disk
Contactor / Remote Type: N/A
Standards Compliance: SAE J706 CE Machinery Directive 98/37/EC and 2006/42/EC

Accessories:
Wire Rope Tension Plate 10”: PN 31149
Fairlead Black 10”: PN 24336
Fairlead Chrome 10″: PN 30859
Remote Clutch Mechanical: PN 38316
Remote Clutch Air: PN 71370
Wire Rope Assembly 1/2”x75′ EIPS: PN 77534
