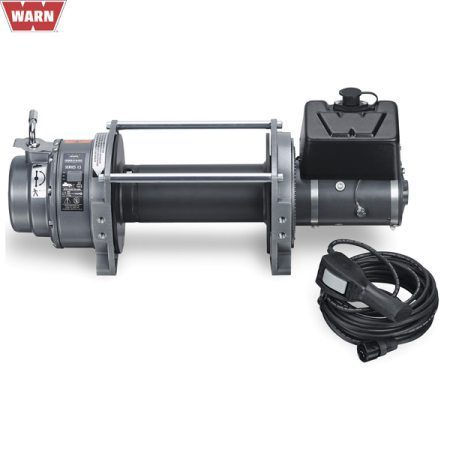

WARN WINCH SERIES 15DC 24V

Description

• Dependable high-torque series-wound electric motor, available in 12 or 24V configurations
• Weatherproof industrial contactor control pack
• Rugged 32′ (10 m) industrial remote control
• Disc brake designed for extended power-out use
• Thermal protection device protects motor from overheating
• Wire rope, roller fairlead, and tensioner sold separately

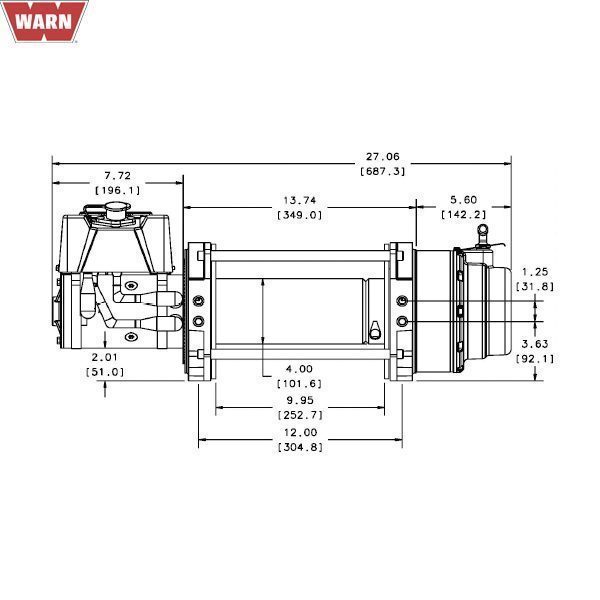

Data:
Rated Pulling Force: 15000 lbf (6804 kg)
Drum Barrel Diameter: 4.0 in (102mm)
Drum Flange Diameter: 8.24 in (209mm)
Distance Between Flanges: 9.95 in (253mm)
Recommended Maximum Wire Rope Diameter: 1/2 in (12.7 mm)
Recommended Minimum Wire Rope Breaking Strength: 26600 lbf (12066 kgf)
Approximate Shipping Weight – 66032: 106.0 lb (48.1 kg)
Approximate Shipping Weight – 65932: 104.0 lb (47.2 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 55 ft (16.8 m)
Mounting Bolt Torque: 35 – 40 ft*lbf (47 – 54 N*m)
Maximum Layers of Wire Rope: 3 (with 1/2″ dia. rope)
Gear Reduction: 315:1
Brake Type: Disk
Contactor / Remote Type: Industrial contactor with 33′ (10m) heavy duty remote
Standards Compliance – 66032: SAE J706
Standards Compliance – 65932: SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC
CE Electromagnetic Compatibility 2004/108/EC

Accessories:
Wire Rope Tension Plate 10”: PN 31149
Fairlead Black 10”: PN 24336
Fairlead Chrome 10”: PN 30859
Remote Clutch Mechanical: PN 38316
Remote Clutch Air: PN 71370
Wire Rope Assembly 1/2”x75′: PN 77534
