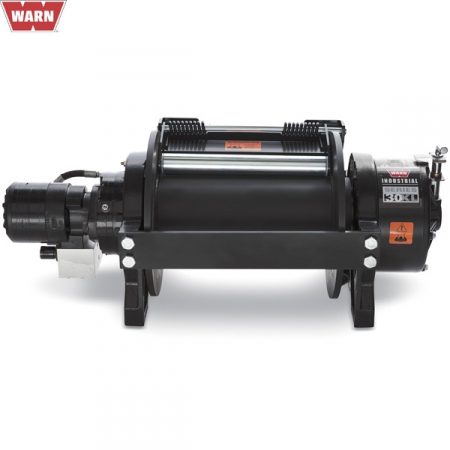

WARN WINCH SERIES 30XL LONG DRUM AIR

Description

30XL long drum, and air decoupling. Warn 30 XL a real “Heavy Duty” winch for heavy industry use. With a rated pulling force of over 13 tons on one single rope the uses are huge i.e. heavy towing and various industrial applications.

• 12.0 cubic-inch high-performance motor with 30,000 lbf. capacity – great for trailers, roll-back carriers, and severeduty applications
• Spring-applied disc brake designed to hold the full-rated load
• Hardened aircraft-grade nickel chromoly two-stage planetary geartrain for speed and reliability
• Available in air and manual clutch options
• Available in standard and long-drum versions
• Meets SAE J706 and CE specifications

Data:
Rated Pulling Force: 30,000 lbf (13,608 kgf)
Drum Barrel Diameter: 6.25 in (159 mm)
Drum Flange Diameter: 13.50 in (343 mm)
Distance Between Flanges, Short Drum: 8.0 in (203 mm)
Distance Between Flanges, Long Drum: 14 in (356 mm)
Recommended Maximum Wire Rope Diameter: 5/8 in (15.9 mm)
Recommended Minimum Wire Rope Breaking Strength: 41200 lbf (18688 kgf)
Approximate Shipping Weight for 77880 & 77900: 322 lb (146 kg)
Approximate Shipping Weight for 75990 & 77890: 361 lb (164 kg)
Duty Cycle (intermittent per SAE J706 section 6.2): 1000 ft (304.8 m)
Mounting Bolt Torque: 159 ft*lbf (216 N*m)
Maximum Layers of Wire Rope: 5
Gear Reduction: 36:1
Brake Type: Spring Applied Disk
Contactor / Remote Type: N/A
Standards Compliance: SAE J706
CE Machinery Directive 98/37/EC and 2006/42/EC

Accessories:
Fairlead SRS-XL-LONG: PN 77869
Wire Rope Assembly 5/8″x245′ EIPS: PN 77454
Snatch Block XL-60K LB: PN 80858
