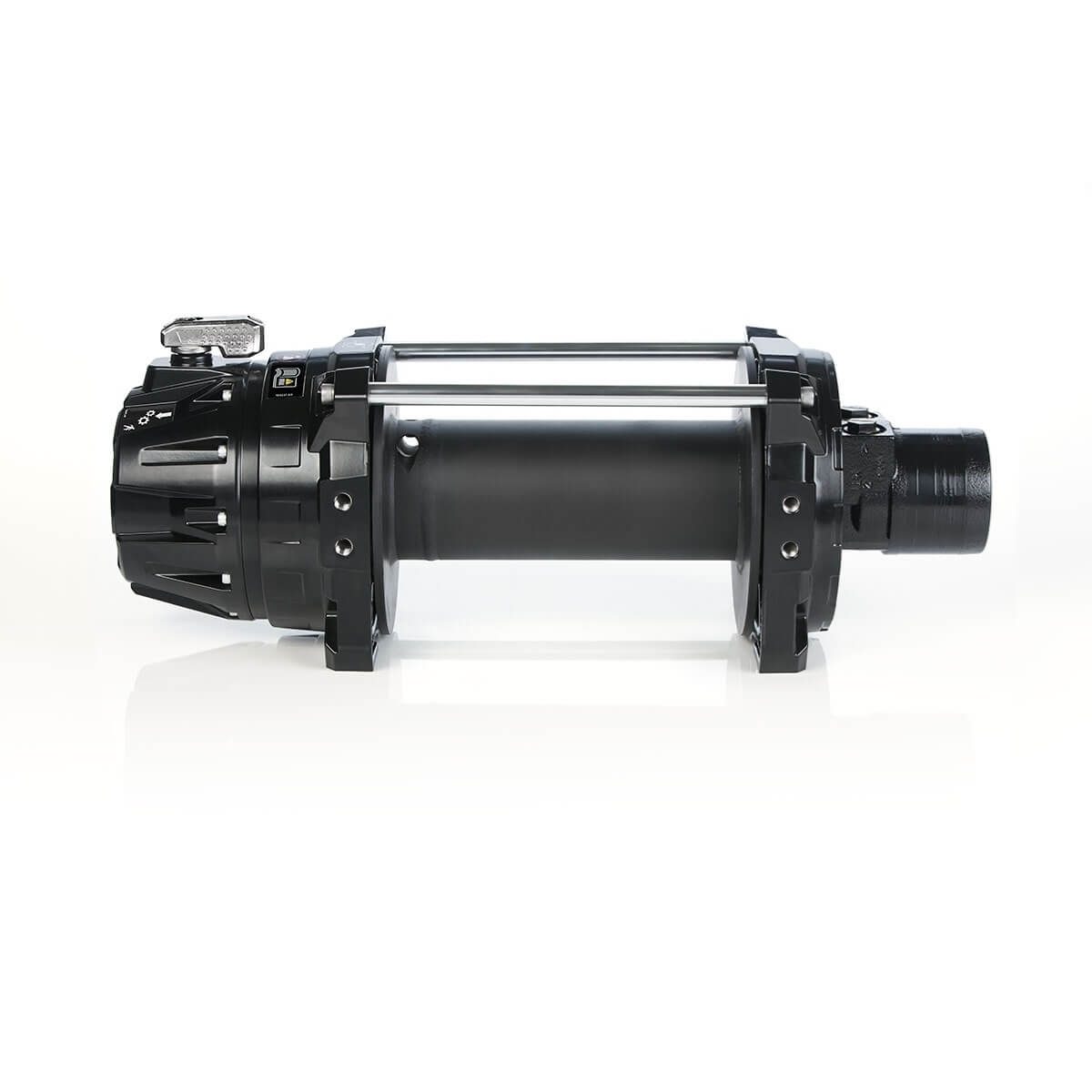

WARN WINCH SERIES G2 HYDRAULIC

Description

The WARN Series G2 represents the latest in the WARN Industrial planetary gear winch lineup. All-new modular configurations, improved performance levels and best-ever durability are features that allow you to work smarter.

No matter how it’s specified, this winch can be the hardest worker you’ll ever hire.

Characteristics:

• More configurable than ever so you get the right winch for the job
• Product improvements lead to a longer product life, which saves money in the long term
• Improved efficiency and performance allow you to get more done in less time
• Designed to meet SAEJ706 and EN-14492-1
• Backed by WARN’s industry-leading warranty

Data:

• Towing capacity: 12,000 lbs (5,443 kg)
• Recommended line: 9,253 kg min. break load.
• Max Flow: 15 GPM (57 LPM)
• Drum diameter: 4 in (101.6 mm)
• Drum length: 9.95 in (252.7 mm)
• Engine: 4.0 ci hydraulic
• Gear ratio: 36:1
• Weight: 85.3 lbs (38.7 kg)
• Standard certificate: SAE J706, 2006/42/EC, 2014/30/EU, 2011/65/EU

The winch is delivered without rope and hook.
