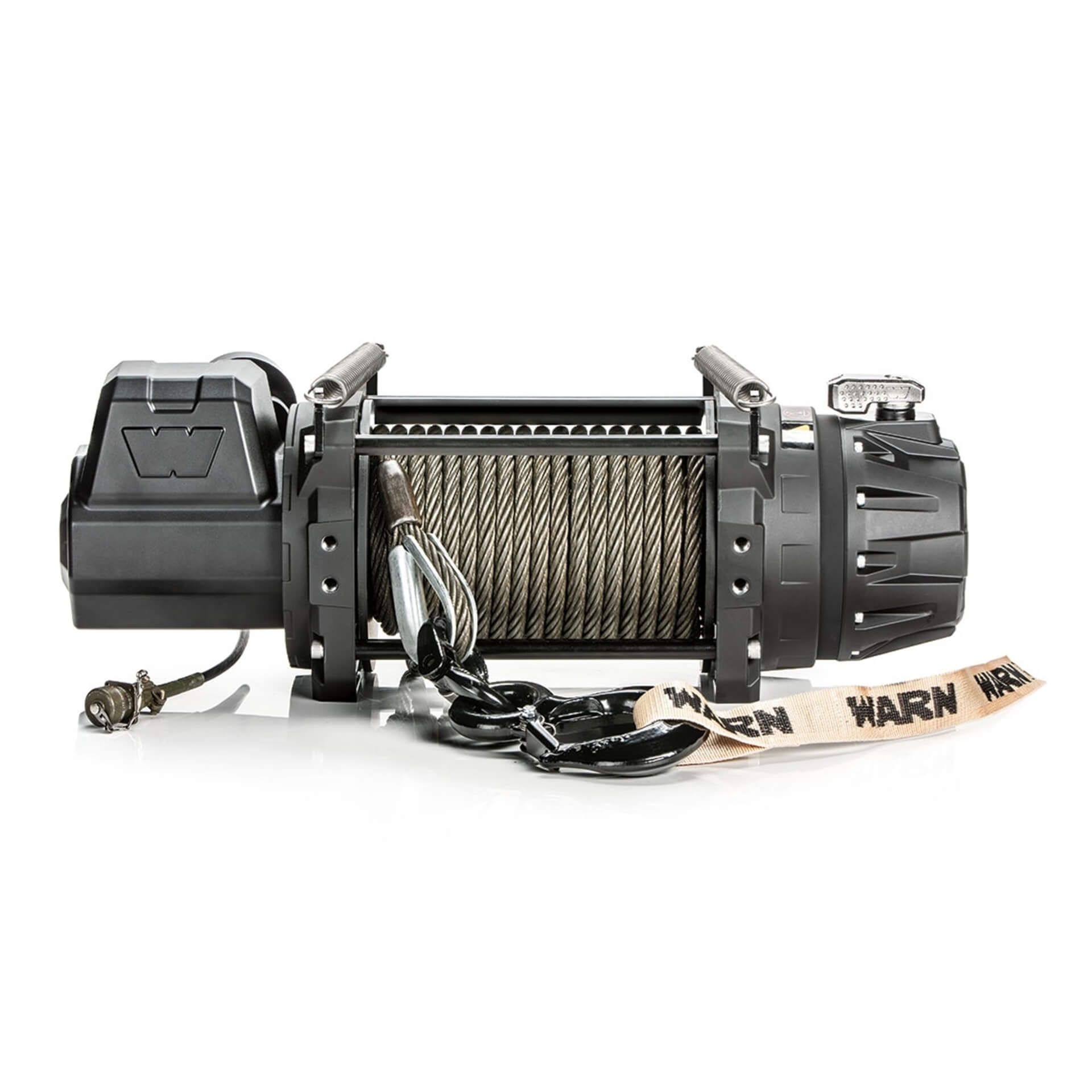

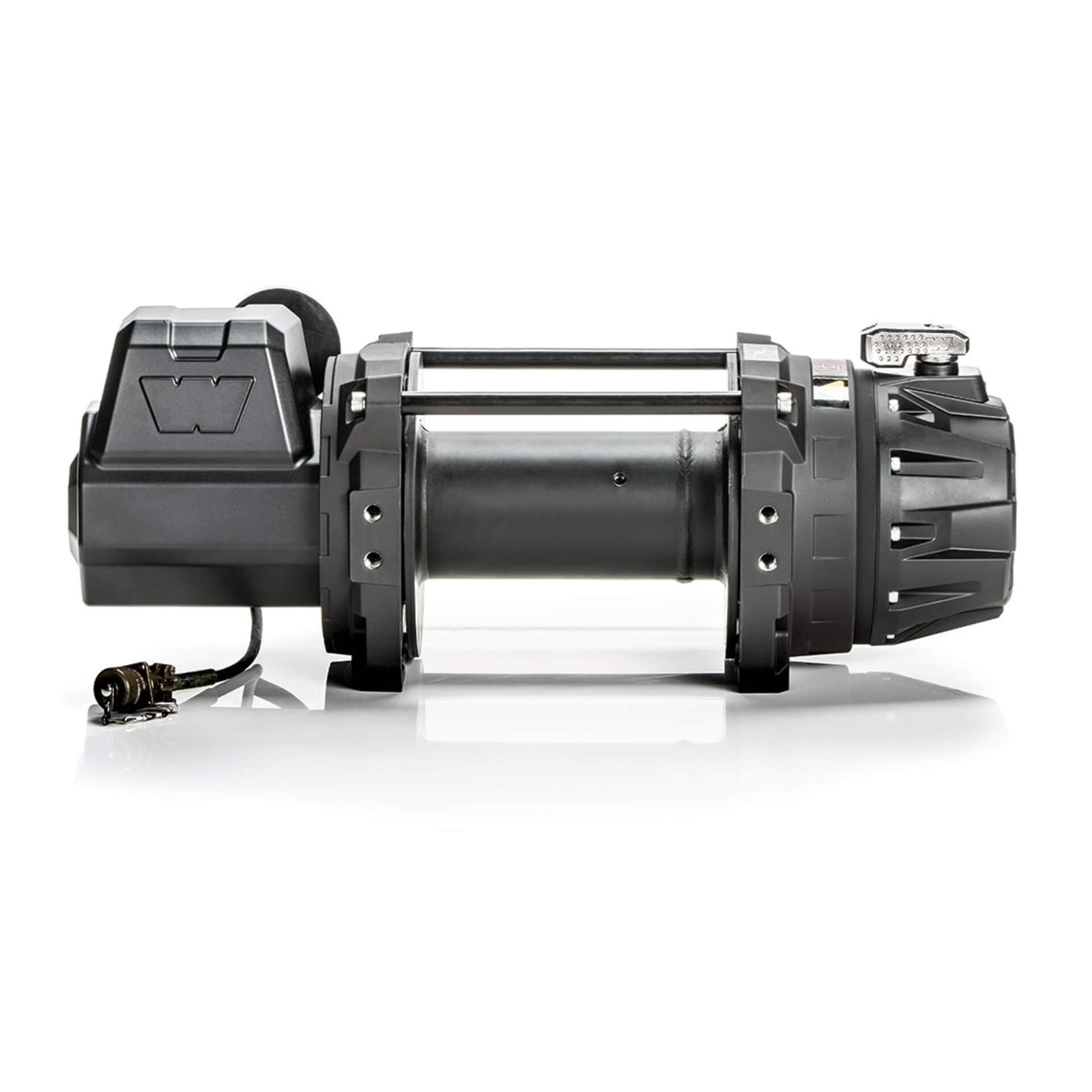

WARN WINCH SEVERE DUTY G2 18 24V MIL-STD-1184
€ 9,433.20 EUR excl. vat
The next generation of Warn’s Series G2 Severe Duty winches are the ultimate winches for the most demanding conditions worldwide. These winches are virtually indestructible regardless of extreme situations, making them ideal for military use and other demanding applications.
This winch is designed and engineered to meet multiple standards, such as SAE J706 and MIL-STD-1184.
Data:
Towing force: 8,165 kg (18,000 lb)
Max. diameter winch line: 12.7 mm (1/2 in)
My. rope breaking load: 12,065 kg (26,600 lb)
Drum diameter: 101.6 mm (4 in)
Drum width: 252.7 mm (9.95 in)
Motor: Electric 24V
Gear type: Planetary
Gear ratio: 321:1
Brake type: Automatic disc brake, SAE J706
IP class: IP68/IP69K, MIL-STD-1184
Working temperature: -40° to 70° C
Weight: 49 kg (108.1 lb)
Standards: EN ISO 12100:2010, EN 60529:1992+A2:2013, EN 14492-1:2006, EN 50498:2010, ISO 7637-2:2011, CISPR 25, EN 63000:2018, SAE J706, MIL-STD -1184
A winch line of 12.7 mm x 23 meters is included.
Out of stock, but can be backordered. We will notify you of delivery time once order has been made.
Description
The next generation of Warn’s Series G2 Severe Duty winches are the ultimate winches for the most demanding conditions worldwide. These winches are virtually indestructible regardless of extreme situations, making them ideal for military use and other demanding applications.
This winch is designed and engineered to meet multiple standards, such as SAE J706 and MIL-STD-1184.
Data:
Towing force: 8,165 kg (18,000 lb)
Max. diameter winch line: 12.7 mm (1/2 in)
My. rope breaking load: 12,065 kg (26,600 lb)
Drum diameter: 101.6 mm (4 in)
Drum width: 252.7 mm (9.95 in)
Motor: Electric 24V
Gear type: Planetary
Gear ratio: 321:1
Brake type: Automatic disc brake, SAE J706
IP class: IP68/IP69K, MIL-STD-1184
Working temperature: -40° to 70° C
Weight: 49 kg (108.1 lb)
Standards: EN ISO 12100:2010, EN 60529:1992+A2:2013, EN 14492-1:2006, EN 50498:2010, ISO 7637-2:2011, CISPR 25, EN 63000:2018, SAE J706, MIL-STD -1184
A winch line of 12.7 mm x 23 meters is included.
