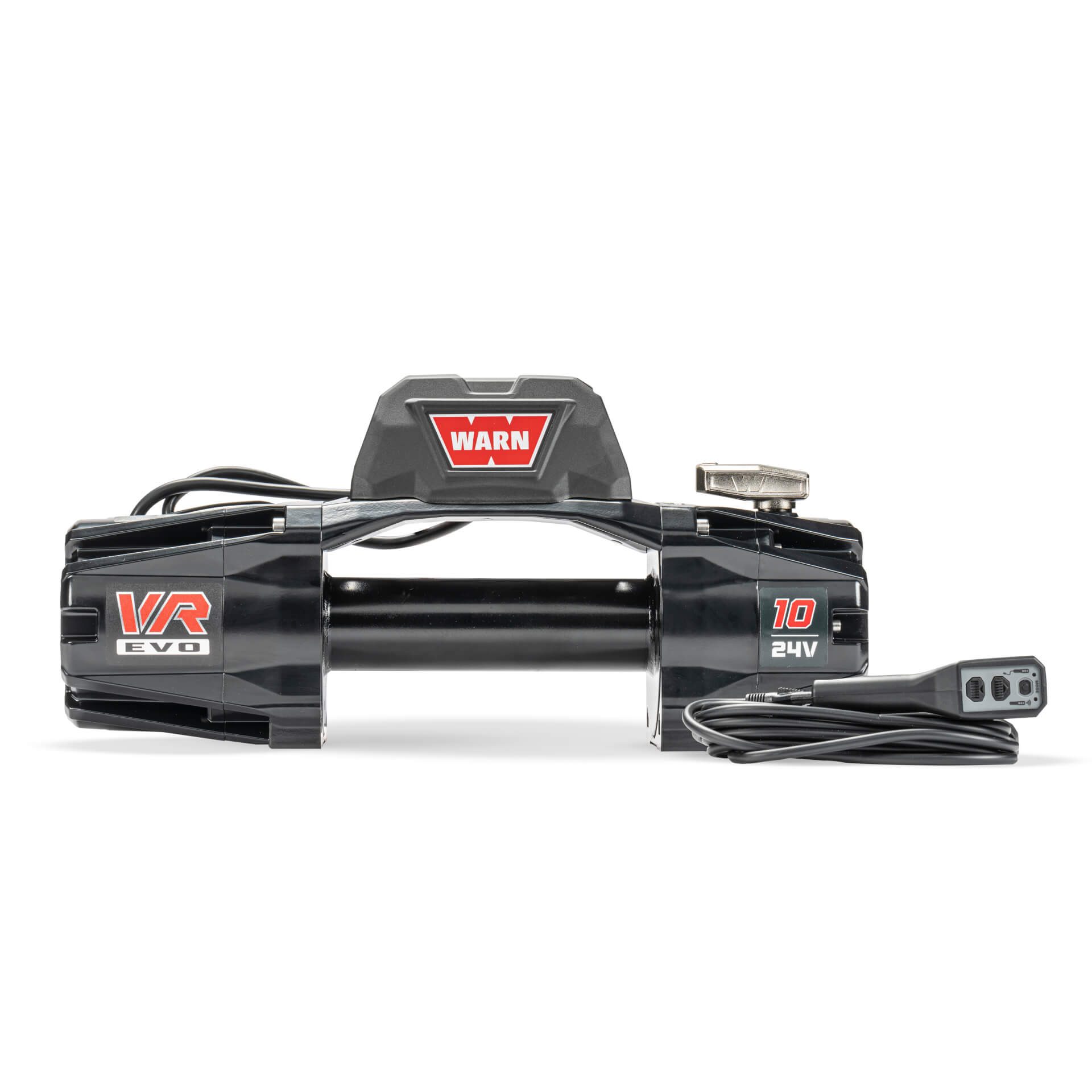

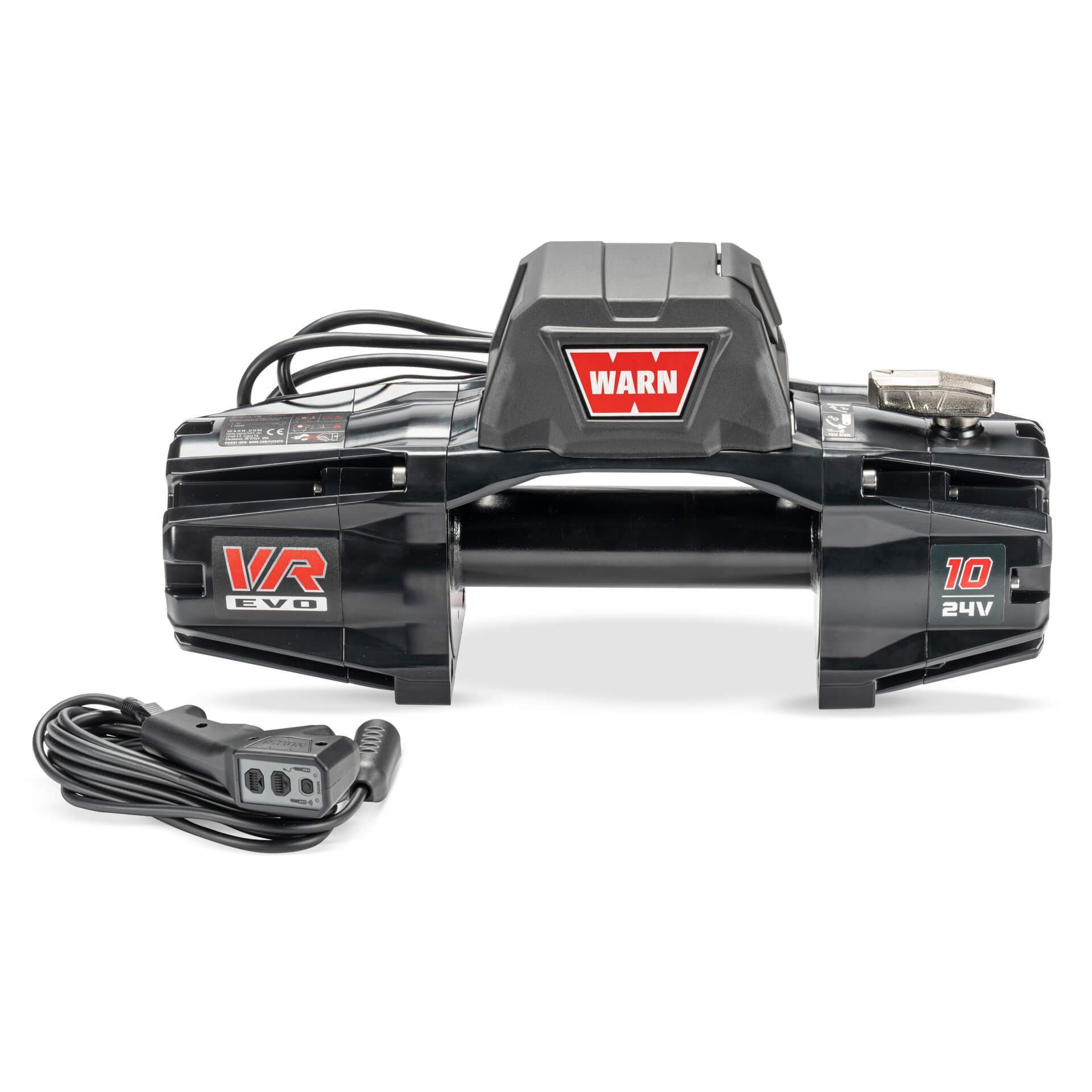

WARN WINCH VR EVO 10 24V

 869.00 EUR excl. vat

The WARN VR EVO sets a new standard for standard winches. With its low power consumption and high line speed under load, the new VR EVO series are the most efficient standard winches WARN has ever offered.

These winches have an IP68 rated waterproof and durable metal construction, with a reliable Albright contactor inside a removable control package, and a remote control that can be used wirelessly or with a 3.5 meter cable.

The WARN VR EVO winches are affordable without compromising on WARN’s legendary standard of reliability. These are winches that help you get all the way, regardless of terrain and environment. VR Evo is perfect for vehicles in forestry, agriculture, contracting, overlanding, offroad, etc.

Note: This winch is supplied without line and roller.

Properties:
Powerful motor and planetary gear with lower consumption and higher rope speed
IP68-rated waterproof and durable construction
High performance Albright contactor for maximum reliability
The control package can be moved for low profile installations
Durable cast aluminum plate for secure mounting
Includes remote control with wired connection

Data:
Traction: 4,536 kg
Motor: 24V DC series wound
Electrical control: Albright contactor
Remote control: 3.5 meters wired
Gearbox: 3-speed planetary gearbox
Gear ratio: 218:1
Coupling (free flushing): Rotary ring coupling
Brake: Spring brake
Drum diameter / length: 6.73 cm / 23 cm
Line: Delivered without line
Finish: Powder coating over primer undercoat
Weight: 25.5 kg (without rope)
Recommended battery: 650 CCA minimum
Battery cables: 25 mm x 2 meters

Performance:

Line pull (kg) Line speed (meter/minut) Motor current (ampere) Pull/layer (kg)
0 6,7 36 4 536 / 1
910 4,0 69 3 627 / 2
1 810 3,4 100 3 021 / 3
2 720 2,7 131 2 589 / 4
3 630 2,3 161 2 265 / 5
4 536 1,9 188

Note: This product requires a compatible bumper or winch mount for vehicle mounting. We offer several solutions for this under “Winch mounts”.

Out of stock, but can be backordered. We will notify you of delivery time once order has been made.

SKU: 110124 Categories: ,

Description

The WARN VR EVO sets a new standard for standard winches. With its low power consumption and high line speed under load, the new VR EVO series are the most efficient standard winches WARN has ever offered.

These winches have an IP68 rated waterproof and durable metal construction, with a reliable Albright contactor inside a removable control package, and a remote control that can be used wirelessly or with a 3.5 meter cable.

The WARN VR EVO winches are affordable without compromising on WARN’s legendary standard of reliability. These are winches that help you get all the way, regardless of terrain and environment. VR Evo is perfect for vehicles in forestry, agriculture, contracting, overlanding, offroad, etc.

Note: This winch is supplied without line and roller.

Properties:
Powerful motor and planetary gear with lower consumption and higher rope speed
IP68-rated waterproof and durable construction
High performance Albright contactor for maximum reliability
The control package can be moved for low profile installations
Durable cast aluminum plate for secure mounting
Includes remote control with wired connection

Data:
Traction: 4,536 kg
Motor: 24V DC series wound
Electrical control: Albright contactor
Remote control: 3.5 meters wired
Gearbox: 3-speed planetary gearbox
Gear ratio: 218:1
Coupling (free flushing): Rotary ring coupling
Brake: Spring brake
Drum diameter / length: 6.73 cm / 23 cm
Line: Delivered without line
Finish: Powder coating over primer undercoat
Weight: 25.5 kg (without rope)
Recommended battery: 650 CCA minimum
Battery cables: 25 mm x 2 meters

Performance:

Line pull (kg)Line speed (meter/minut)Motor current (ampere)Pull/layer (kg)
06,7364 536 / 1
9104,0693 627 / 2
1 8103,41003 021 / 3
2 7202,71312 589 / 4
3 6302,31612 265 / 5
4 5361,9188

Note: This product requires a compatible bumper or winch mount for vehicle mounting. We offer several solutions for this under “Winch mounts”.
