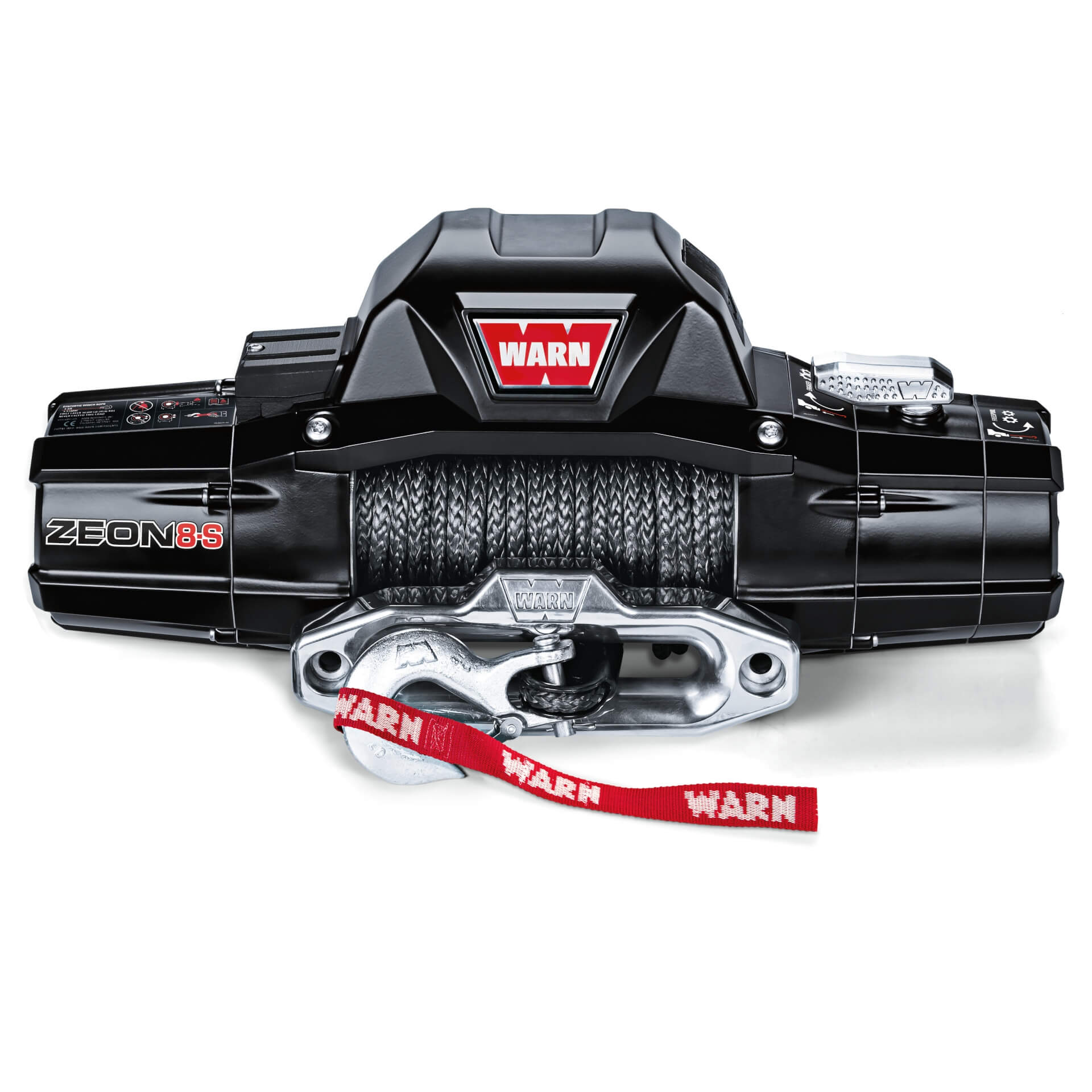

WARN ZEON 8-S WINCH 12V

 2,154.70 EUR excl. vat

WARN ZEON is the premier premium vehicle winch. ZEON delivers durability and performance with a design like no other vehicle winch. For really challenging environments, there is no better option than WARN ZEON.

WARN ZEON has a completely new engine design, with a unique cooling, to deliver the highest capacity as efficiently as possible. The ZEON winches are encased in metal, with double layers of satin black powder coating, and sealed with an IP68 rating, making them superior in durability and resilience.

WARN ZEON is salt spray-tested over 408 hours and can withstand, among other things, over 1,100 winch cycles in tests where the nearest competitor barely managed 500 cycles. ZEON plays in a league of its own, far above other players.

The WARN ZEON also features an automatic cone brake, a seamless three-speed planetary gear, and a removable control package for low-profile mounting.

If you want the best vehicle winch available, then the WARN ZEON is the right choice.

This winch is supplied with synthetic rope.

Properties:
Brand new powerful engine with lower consumption
Properly built-in and protected electronics
Proven 3-stage planetary gear for seamless winching
Extra strong and sealed construction with IP68 rating
Class-leading built-in automatic cone brake
Larger winch drum that extends the life of the winch line
Higher speed with more secure anchoring of the rope in the drum
A control package that is easily moved for low profile installation
Remote control with wired connection

Data:
Rated line pull: 3 629 kg
Motor: 12V DC series wound
Electrical control: Contactor
Remote control: 3,7 meters wired remote control
Gearbox: 3-speed planetary gearbox
Gear ratio: 162:1
Freespooling drum: Yes
Brake: Automatic cone brake
Drum diameter / length: 80 mm / 229 mm
Weight: 36 kg
Rope: Synthetic rope Spydura, 9,5 mm diameter x 30,5 meters
Fairlead: Aluminium hawse
Recommended battery size: 650 CCA
Battery cables: 1,83 m
Finish: Double layer satin-black powder coating

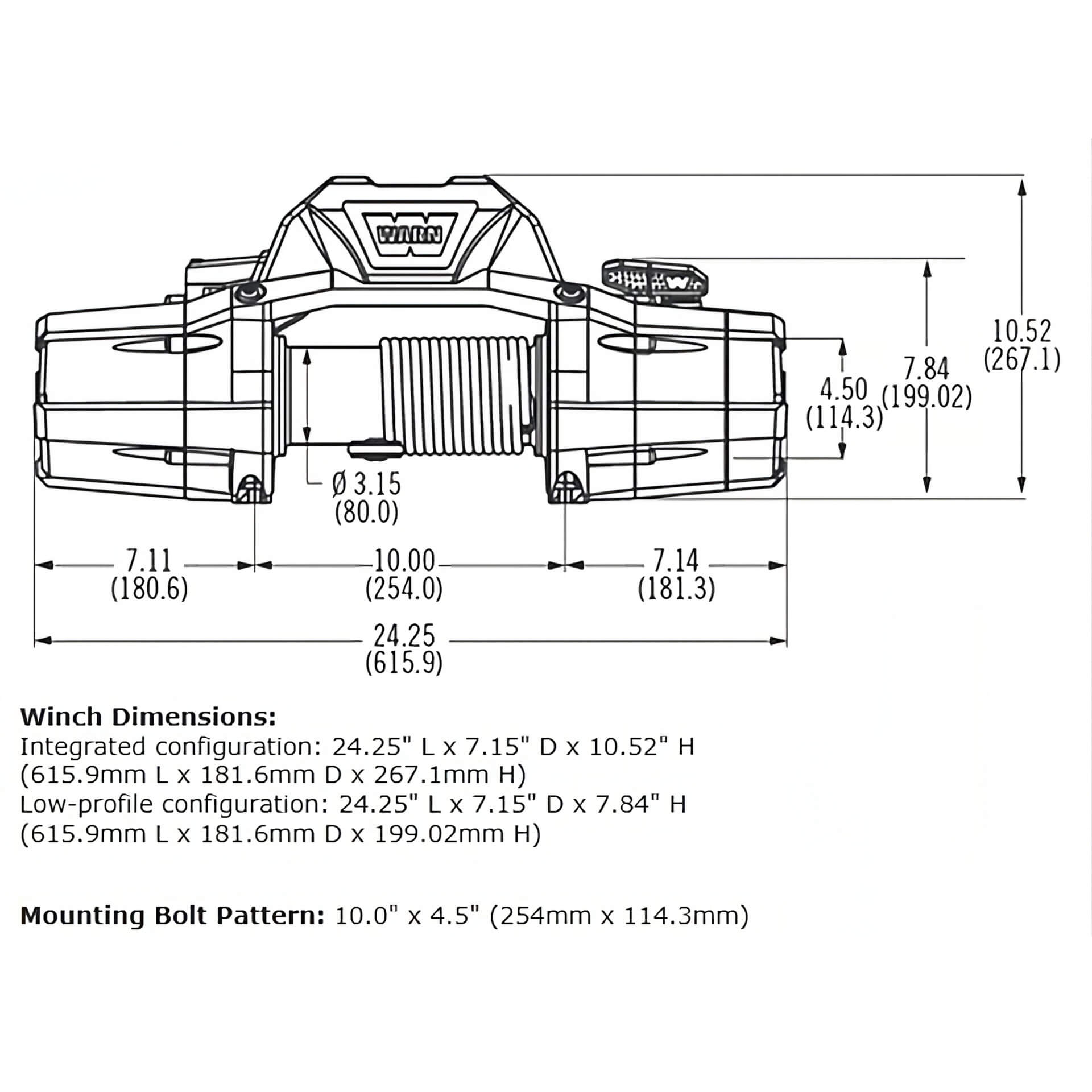

Hole pattern for mounting: 254 mm x 114,3 mm

Performance:

Line pull (kg) Line speed (meter/minute) Motor current (ampere) Pull/layer (kg)
0 12,8 63 3 629 / 1
910 5,2 167 3 074 / 2
1 810 3,6 255 2 666 / 3
2 720 2,6 335 2 353 / 4
3 630 1,9 413

Note: This product requires a compatible bumper or winch mount for vehicle mounting. We offer several solutions for this under “Winch mounts”.

5 in stock (can be backordered)

SKU: 89305 Categories: ,

Description

WARN ZEON is the premier premium vehicle winch. ZEON delivers durability and performance with a design like no other vehicle winch. For really challenging environments, there is no better option than WARN ZEON.

WARN ZEON has a completely new engine design, with a unique cooling, to deliver the highest capacity as efficiently as possible. The ZEON winches are encased in metal, with double layers of satin black powder coating, and sealed with an IP68 rating, making them superior in durability and resilience.

WARN ZEON is salt spray-tested over 408 hours and can withstand, among other things, over 1,100 winch cycles in tests where the nearest competitor barely managed 500 cycles. ZEON plays in a league of its own, far above other players.

The WARN ZEON also features an automatic cone brake, a seamless three-speed planetary gear, and a removable control package for low-profile mounting.

If you want the best vehicle winch available, then the WARN ZEON is the right choice.

This winch is supplied with synthetic rope.

Properties:
Brand new powerful engine with lower consumption
Properly built-in and protected electronics
Proven 3-stage planetary gear for seamless winching
Extra strong and sealed construction with IP68 rating
Class-leading built-in automatic cone brake
Larger winch drum that extends the life of the winch line
Higher speed with more secure anchoring of the rope in the drum
A control package that is easily moved for low profile installation
Remote control with wired connection

Data:
Rated line pull: 3 629 kg
Motor: 12V DC series wound
Electrical control: Contactor
Remote control: 3,7 meters wired remote control
Gearbox: 3-speed planetary gearbox
Gear ratio: 162:1
Freespooling drum: Yes
Brake: Automatic cone brake
Drum diameter / length: 80 mm / 229 mm
Weight: 36 kg
Rope: Synthetic rope Spydura, 9,5 mm diameter x 30,5 meters
Fairlead: Aluminium hawse
Recommended battery size: 650 CCA
Battery cables: 1,83 m
Finish: Double layer satin-black powder coating
Hole pattern for mounting: 254 mm x 114,3 mm

Performance:

Line pull (kg)Line speed (meter/minute)Motor current (ampere)Pull/layer (kg)
012,8633 629 / 1
9105,21673 074 / 2
1 8103,62552 666 / 3
2 7202,63352 353 / 4
3 6301,9413

Note: This product requires a compatible bumper or winch mount for vehicle mounting. We offer several solutions for this under “Winch mounts”.
